Introduction

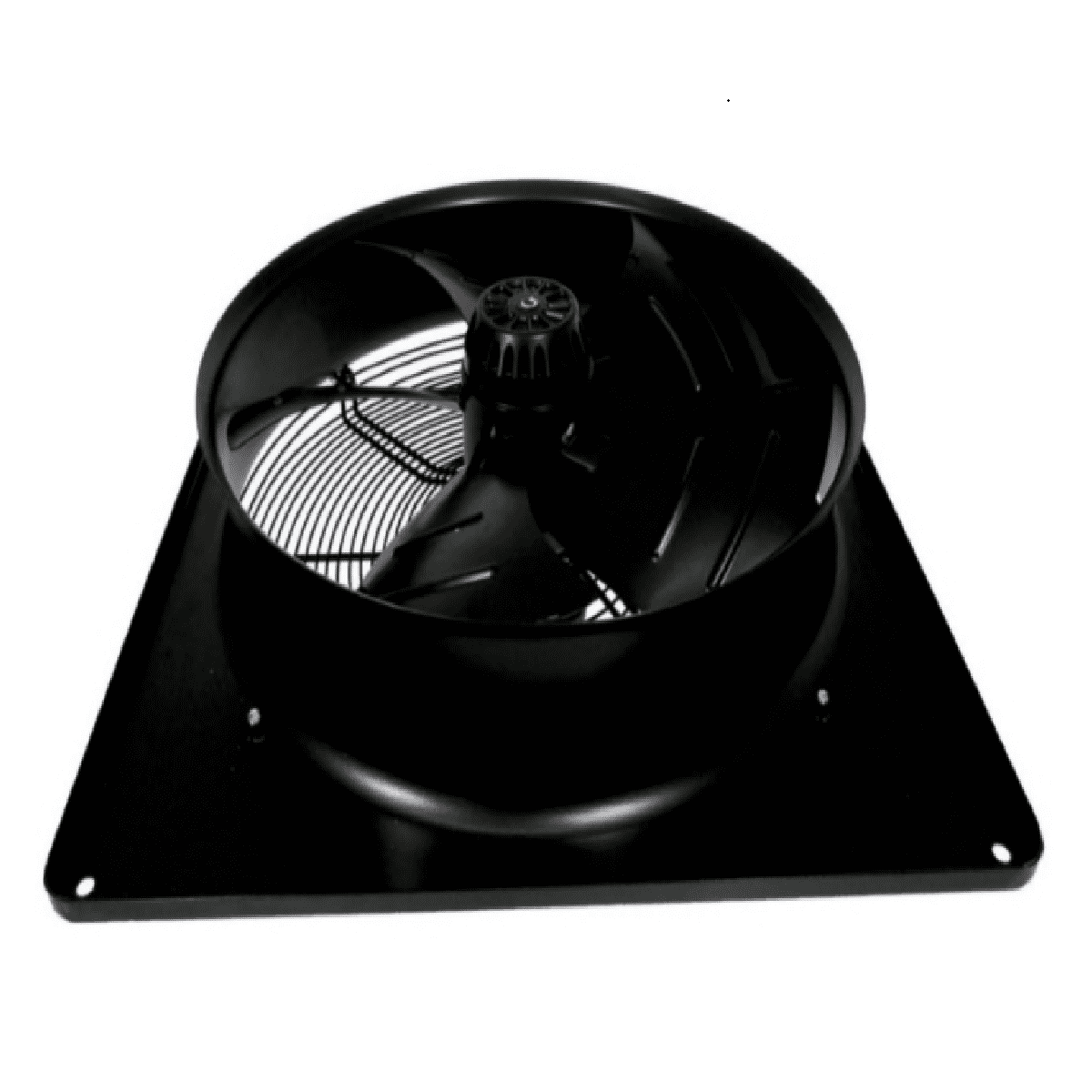

The PSP PMA1-200S2-1 is a plate mounted axial fan designed for efficient airflow in commercial and industrial ventilation applications. Operating on a single-phase 230V~50Hz/60Hz supply, this unit is built with a PSC motor and a robust plate-mounted design, making it ideal for wall, panel and equipment installations. With sealed-for-life ball bearings and a totally enclosed motor, it delivers reliable, low-maintenance performance in continuous-duty environments. This model is configured for sucking airflow, making it suitable for extraction and air removal applications.
Key Product Features
Single-phase 230V~50Hz/60Hz PSC motor
Plate mounted axial fan design for easy installation

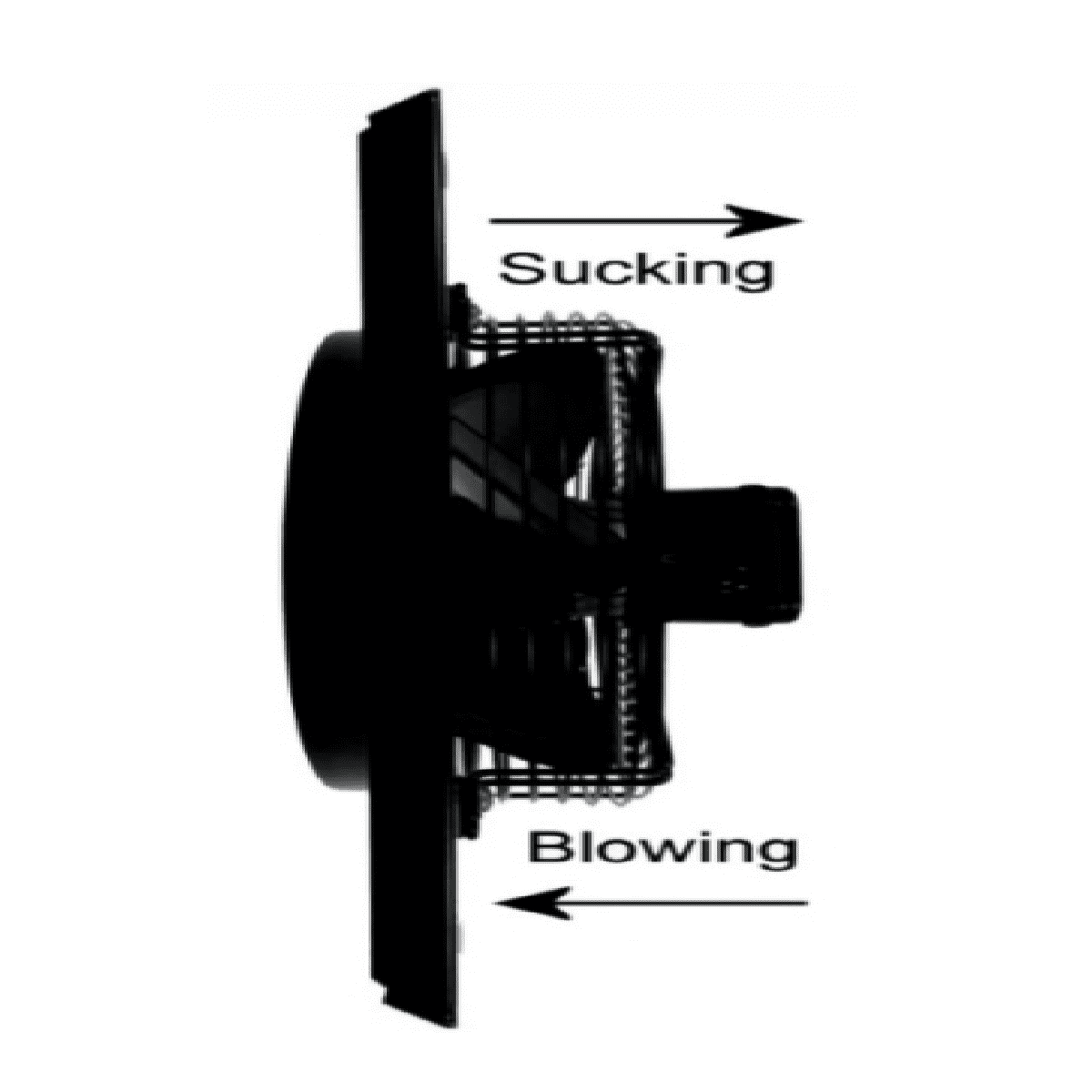

Sucking airflow configuration for extraction applications
200mm blade diameter
Motor speed: 2300 RPM
Totally enclosed motor construction
IP54 motor protection rating
Class F insulation for enhanced durability
Sealed-for-life ball bearings
Continuously rated air-over-motor design
Operating temperature range from –40°C to +60°C
Suitable for wall mounting, panel mounting and OEM ventilation systems
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
