Introduction

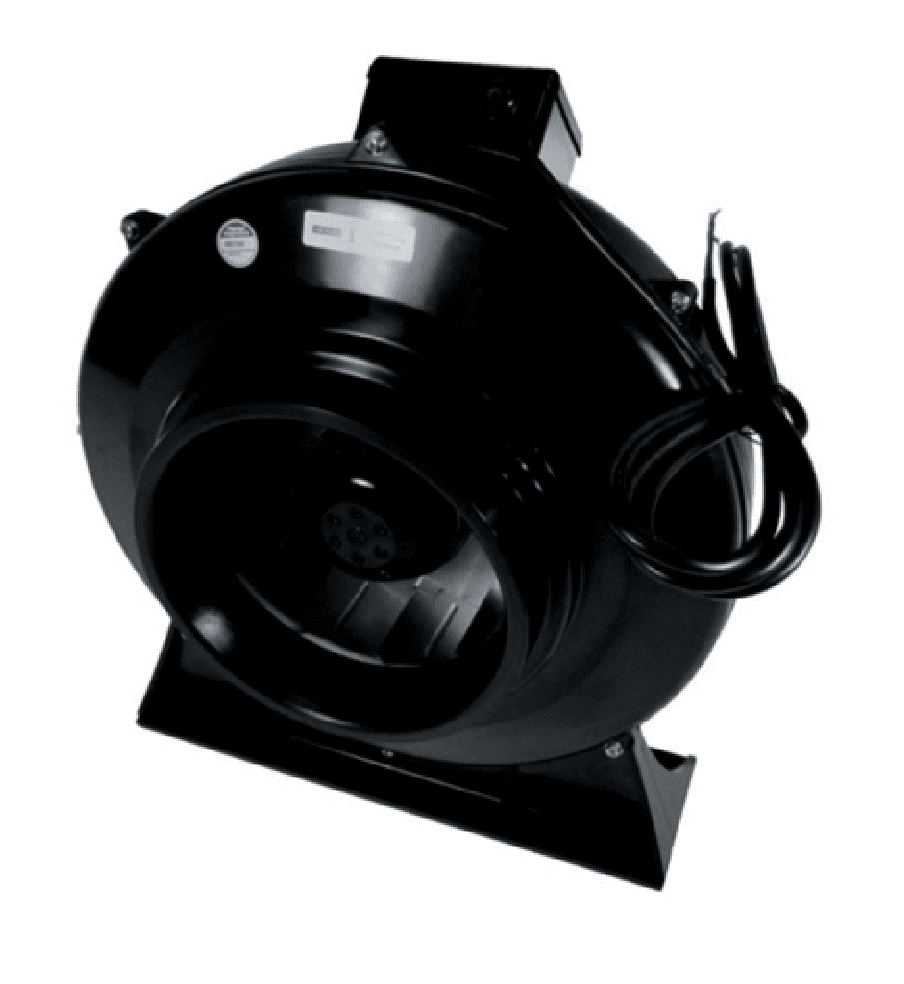

The PSP ILDP-100 is a compact in-line duct pipe fan designed for domestic, commercial and light industrial ventilation applications. Manufactured from durable ABS plastic, this lightweight fan provides reliable airflow performance for both extraction and supply air systems. Its compact design allows straightforward installation within circular ductwork, making it ideal for bathrooms, kitchens, utility rooms, offices and general HVAC ventilation systems.
Key Product Features
- Durable ABS plastic casing
- Single-phase 230V~50Hz/60Hz motor
- In-line duct pipe fan design
- Suitable for extraction or supply air applications
- Compact and lightweight construction
- Airflow up to 187m³/h
- Quiet operation
- Sealed-for-life bearings
- Continuous-duty operation
- Easy installation within circular ductwork
- Suitable for domestic and commercial ventilation
- Low maintenance design
Technical Specifications
- Model: ILDP-100
- Brand: PSP
- Fan Type: In-Line Duct Pipe Fan
- Casing Material: ABS Plastic
- Voltage: 230V~50Hz/60Hz
- Input Power: 14W
- Speed: 2400 RPM
- Air Volume: 187m³/h
- Duct Diameter: 100mm
- Protection Rating: IPX4
- Maximum Operating Temperature: +40°C
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
