Introduction

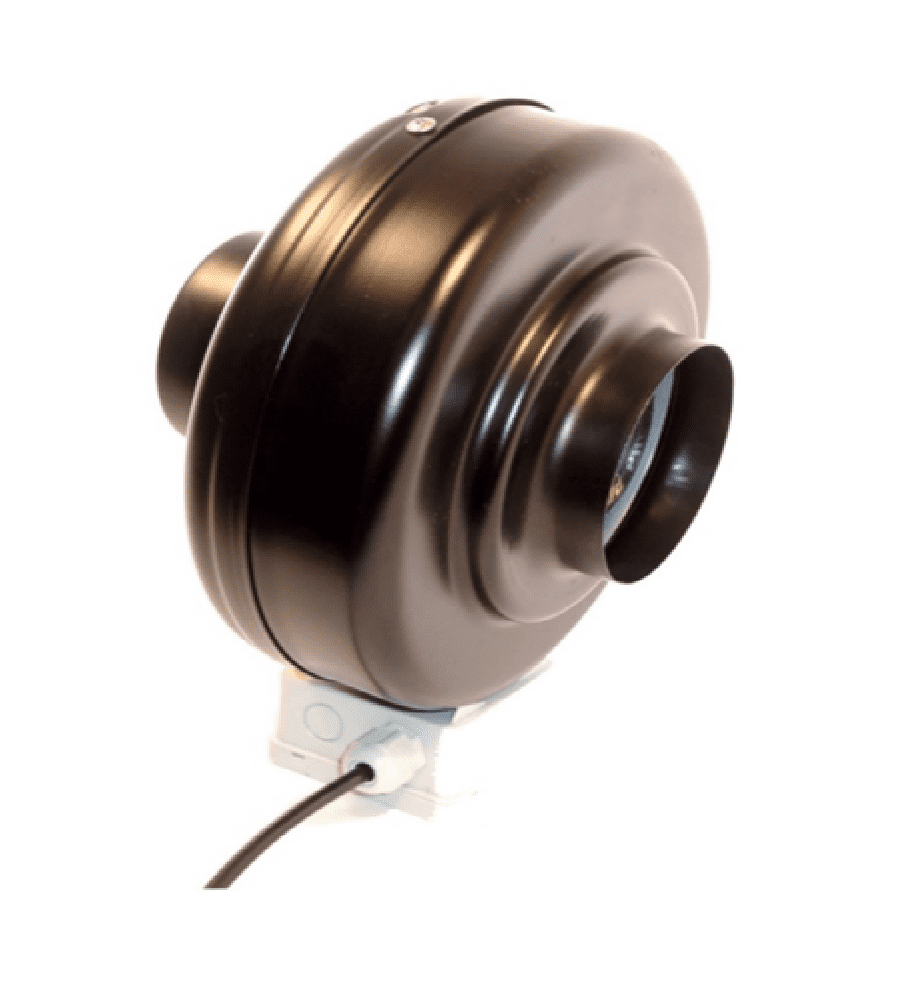

The PSP ILDF2-315 is the largest model within the ILDF2 metal in-line duct fan range, designed for commercial, industrial and HVAC ventilation systems requiring high airflow volumes and reliable continuous-duty performance. Constructed with a heavy-duty metal casing and powered by a PSC motor, this fan delivers efficient air movement for both extraction and supply air applications. Its robust design makes it ideal for warehouses, workshops, plant rooms, air handling systems and large-scale ventilation installations.

Key Product Features

• Metal casing construction
• Single-phase 230V~50Hz/60Hz PSC motor
• In-line duct co-axial pipe fan design
• Suitable for extraction or supply air applications
• Airflow up to 2150m³/h
• Static pressure up to 480Pa
• Totally enclosed motor construction
• IP44 motor protection
• Class B insulation
• Sealed-for-life ball bearings
• Continuous-duty operation
• Operating temperature range from -40°C to +60°C
• Suitable for commercial and industrial ventilation systems

Technical Specifications

• Model: ILDF2-315
• Brand: PSP
• Fan Type: In-Line Duct Co-Axial Pipe Fan
• Casing Material: Metal
• Voltage: 230V~50Hz/60Hz
• Input Power: 380W
• Speed: 2480 RPM
• Static Pressure: 480Pa
• Air Volume: 2150m³/h

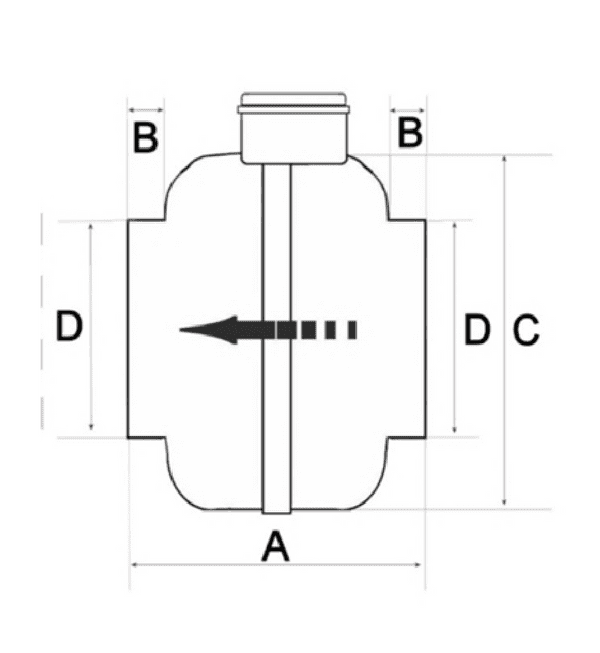

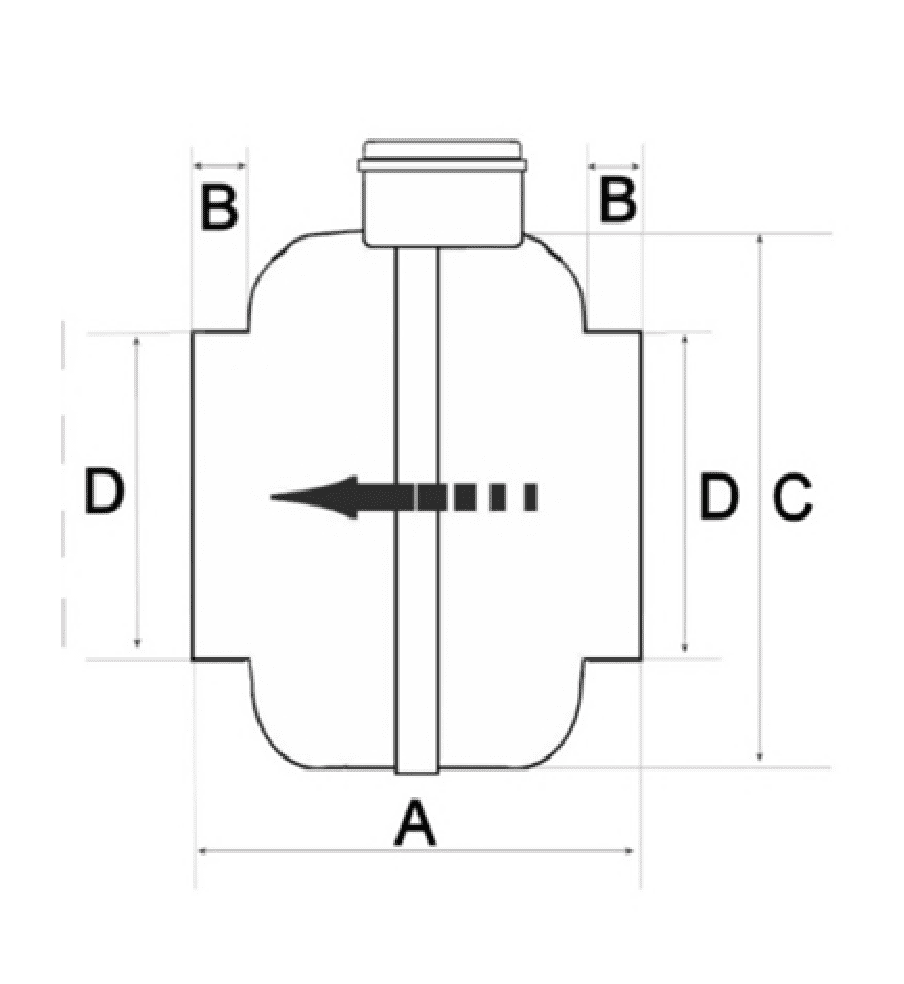

• Dimension A: 410mm
• Dimension B: 35mm
• Dimension C: 450mm
• Dimension D: 315mm
• Protection Rating: IP44
• Insulation Class: Class B

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
