Introduction

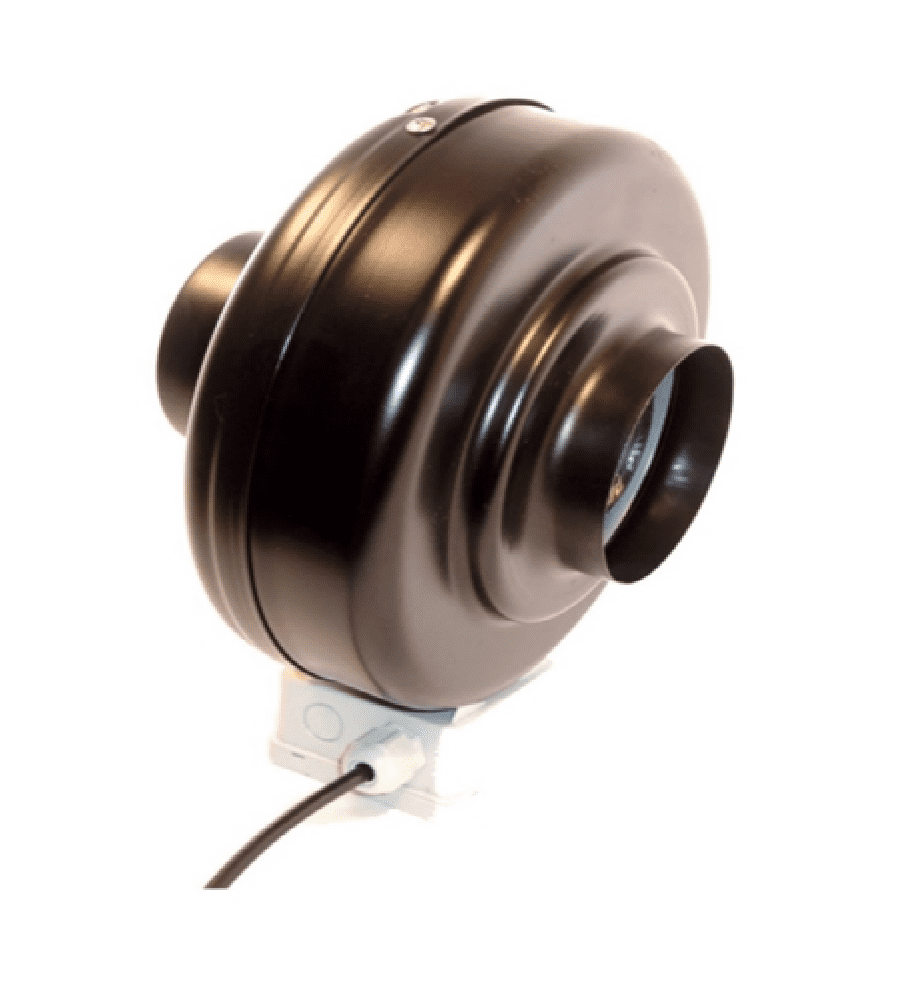

The PSP ILDF2-250 is a high-capacity in-line duct co-axial pipe fan designed for commercial, industrial and HVAC ventilation systems requiring powerful airflow performance and dependable operation. Constructed from durable metal and powered by a reliable PSC motor, this fan provides efficient air movement for both supply and extract air applications. Its robust design and continuous-duty capability make it suitable for demanding ventilation environments where reliable airflow and long service life are essential.

Key Product Features

• Metal casing construction
• Single-phase 230V~50Hz/60Hz PSC motor
• In-line duct co-axial pipe fan design
• Suitable for extraction or supply air applications
• Airflow up to 1440m³/h
• Static pressure up to 410Pa
• Totally enclosed motor construction
• IP44 motor protection
• Class B insulation
• Sealed-for-life ball bearings
• Continuous-duty operation
• Operating temperature range from -40°C to +60°C
• Suitable for commercial and industrial ventilation systems

Technical Specifications

• Model: ILDF2-250
• Brand: PSP
• Fan Type: In-Line Duct Co-Axial Pipe Fan
• Casing Material: Metal
• Voltage: 230V~50Hz/60Hz
• Input Power: 215W
• Speed: 2420 RPM
• Static Pressure: 410Pa
• Air Volume: 1440m³/h

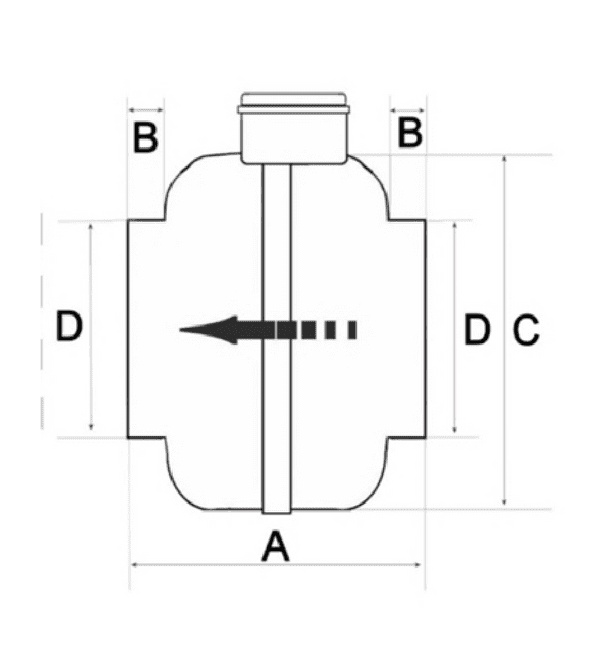

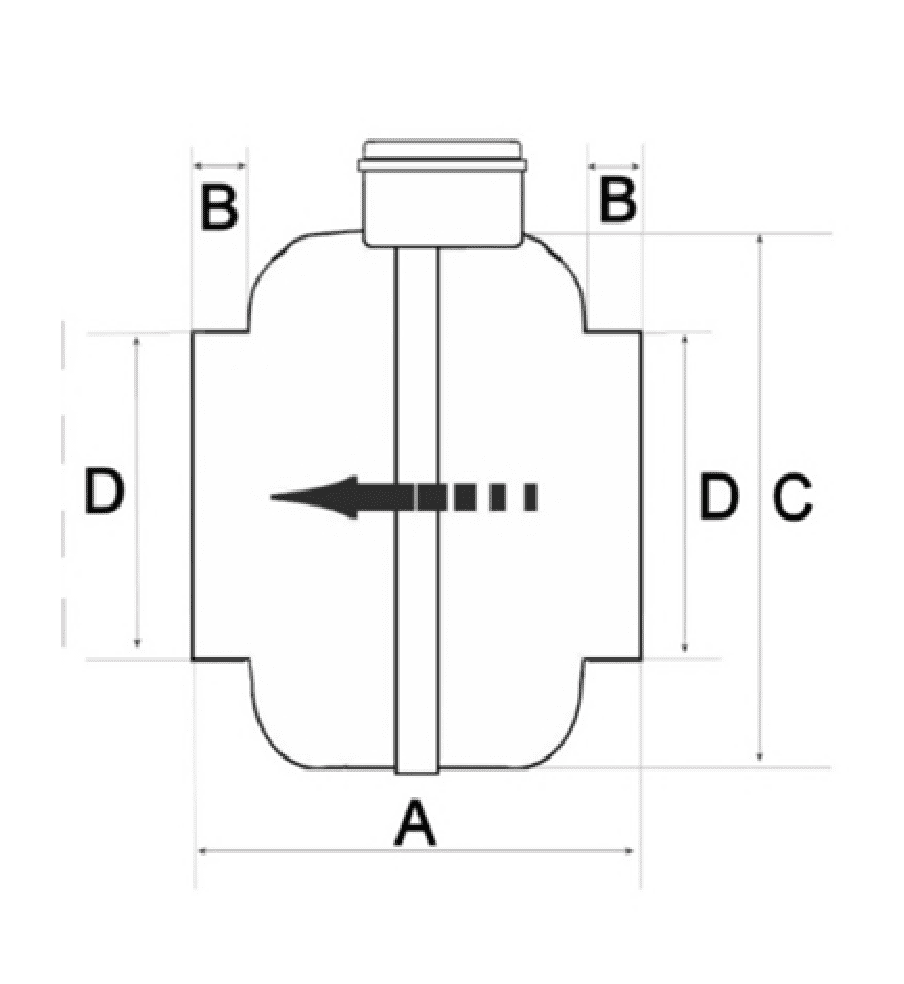

• Dimension A: 334mm
• Dimension B: 30mm
• Dimension C: 405mm
• Dimension D: 250mm
• Protection Rating: IP44
• Insulation Class: Class B

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
