Introduction

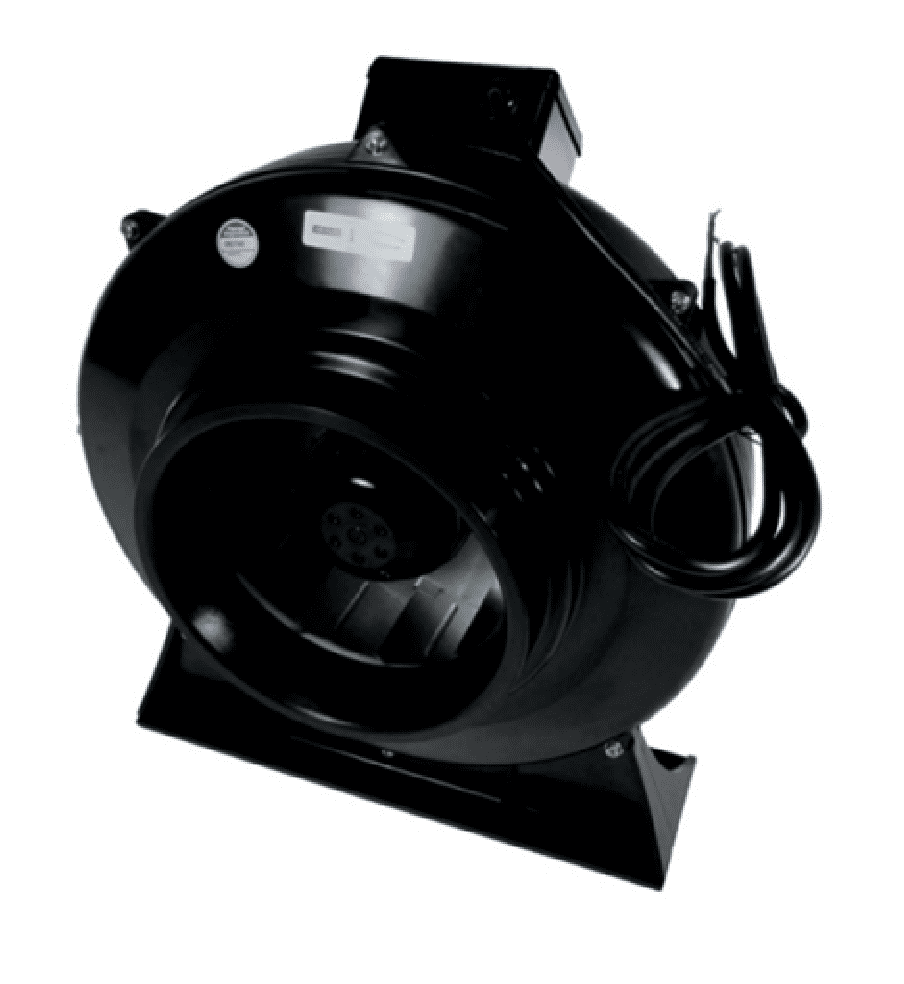

The PSP ILDF2-200P is a high-capacity in-line duct co-axial pipe fan designed for commercial, industrial and HVAC ventilation systems requiring reliable airflow performance. Constructed from durable plastic and powered by a PSC motor, this fan provides efficient air movement for both extraction and supply air applications. Its lightweight yet robust construction makes it suitable for a wide range of ventilation installations where dependable continuous-duty operation is essential.

Key Product Features

• Durable plastic casing construction
• Single-phase 230V~50Hz/60Hz PSC motor
• In-line duct co-axial pipe fan design
• Suitable for extraction or supply air applications
• Airflow up to 1000m³/h
• Static pressure up to 430Pa
• Totally enclosed motor construction
• IP44 motor protection
• Class B insulation
• Sealed-for-life ball bearings
• Continuous-duty operation
• Operating temperature range from -40°C to +60°C
• Suitable for domestic, commercial and industrial ventilation systems

Technical Specifications

• Model: ILDF2-200P
• Brand: PSP
• Fan Type: In-Line Duct Co-Axial Pipe Fan
• Casing Material: Plastic
• Voltage: 230V~50Hz/60Hz
• Input Power: 150W
• Speed: 2550 RPM
• Static Pressure: 430Pa
• Air Volume: 1000m³/h

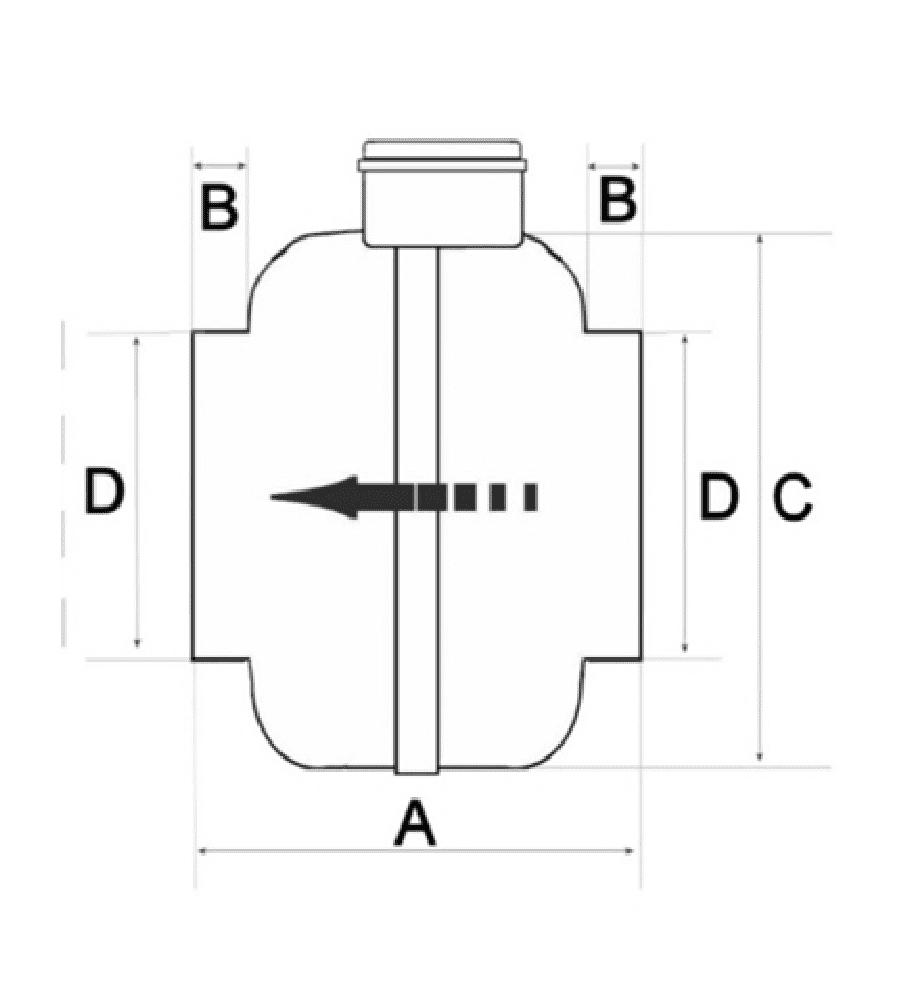

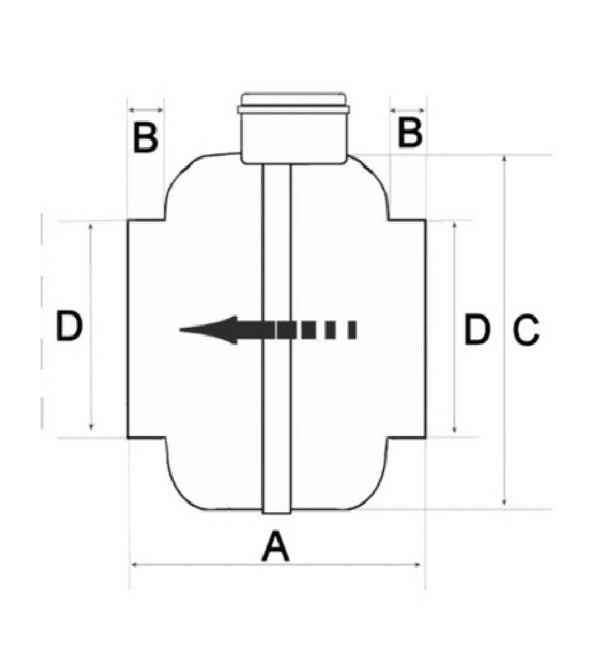

• Dimension A: 210mm
• Dimension B: 25mm
• Dimension C: 333mm
• Dimension D: 200mm
• Protection Rating: IP44
• Insulation Class: Class B

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
