Introduction

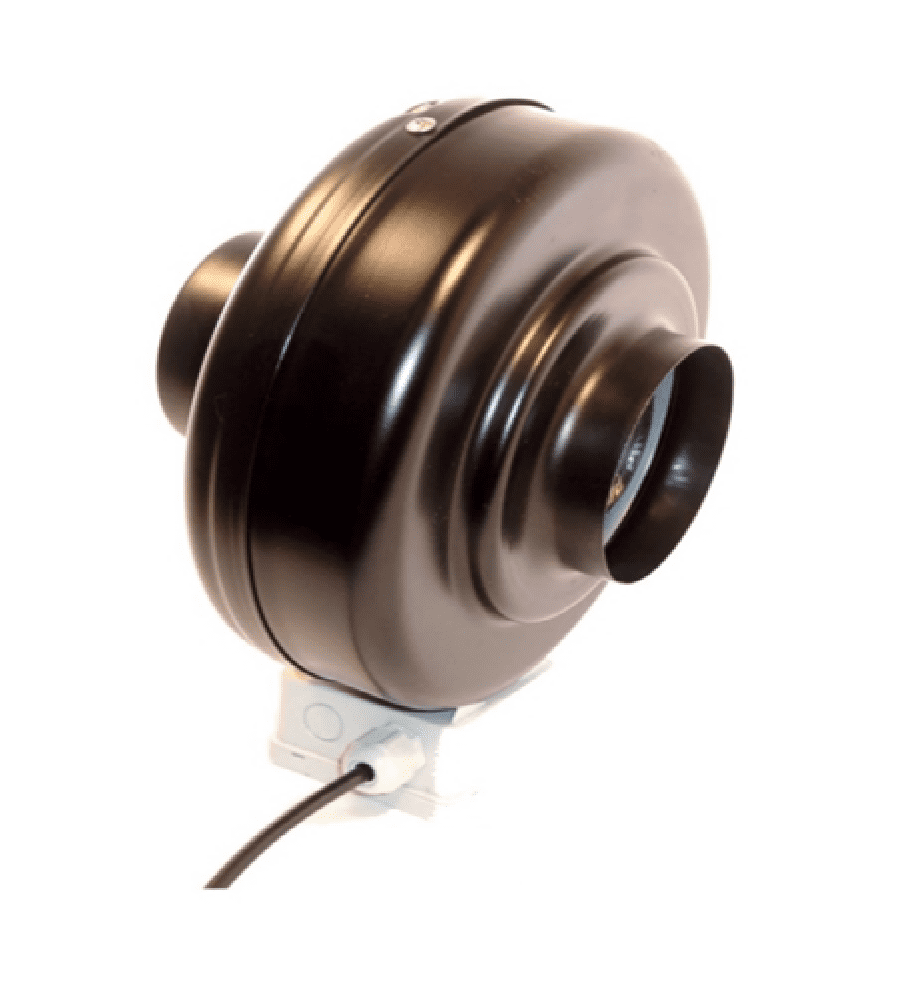

The PSP ILDF2-200 is a powerful in-line duct co-axial pipe fan designed for commercial, industrial and HVAC ventilation systems requiring increased airflow performance. Manufactured with a robust metal casing and powered by a reliable PSC motor, this fan delivers efficient air movement for both extraction and supply air applications. Its durable construction and continuous-duty capability make it ideal for demanding ventilation installations where dependable operation is essential.
Key Product Features
- Metal casing construction
- Single-phase 230V~50Hz/60Hz PSC motor
- In-line duct co-axial pipe fan design
- Suitable for extraction or supply air applications
- Airflow up to 1035m³/h
- Static pressure up to 360Pa
- Totally enclosed motor construction
- IP44 motor protection
- Class B insulation
- Sealed-for-life ball bearings
- Continuous-duty operation
- Operating temperature range from -40°C to +60°C
- Suitable for commercial and industrial ventilation systems
Technical Specifications
- Model: ILDF2-200
- Brand: PSP
- Fan Type: In-Line Duct Co-Axial Pipe Fan
- Casing Material: Metal
- Voltage: 230V~50Hz/60Hz
- Input Power: 125W
- Speed: 2340 RPM
- Static Pressure: 360Pa
- Air Volume: 1035m³/h

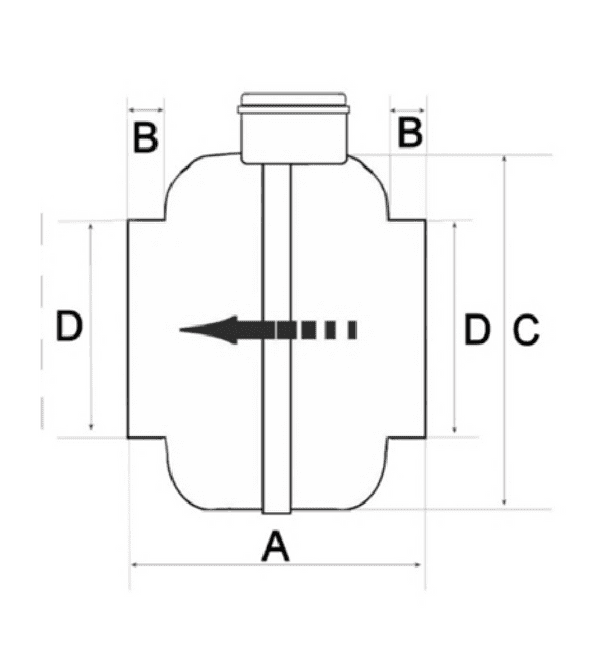

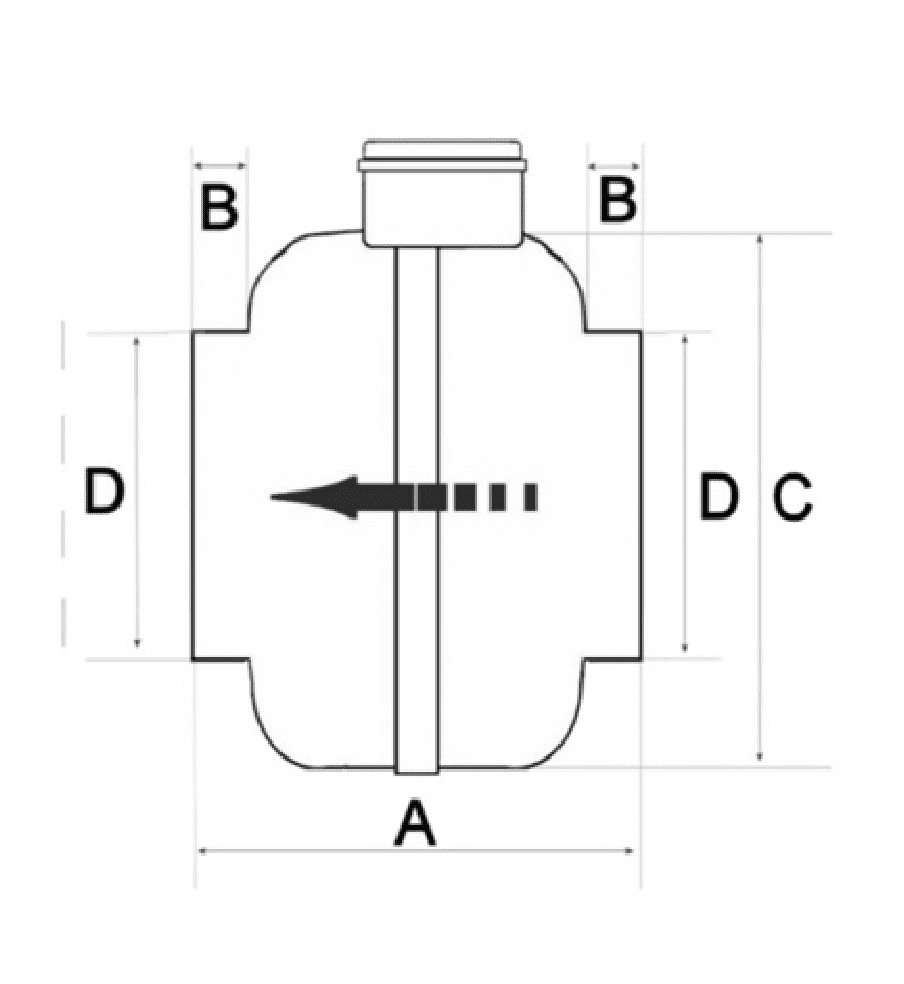

- Dimension A: 274mm
- Dimension B: 28mm
- Dimension C: 335mm
- Dimension D: 200mm
- Protection Rating: IP44
- Insulation Class: Class B
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
