Introduction

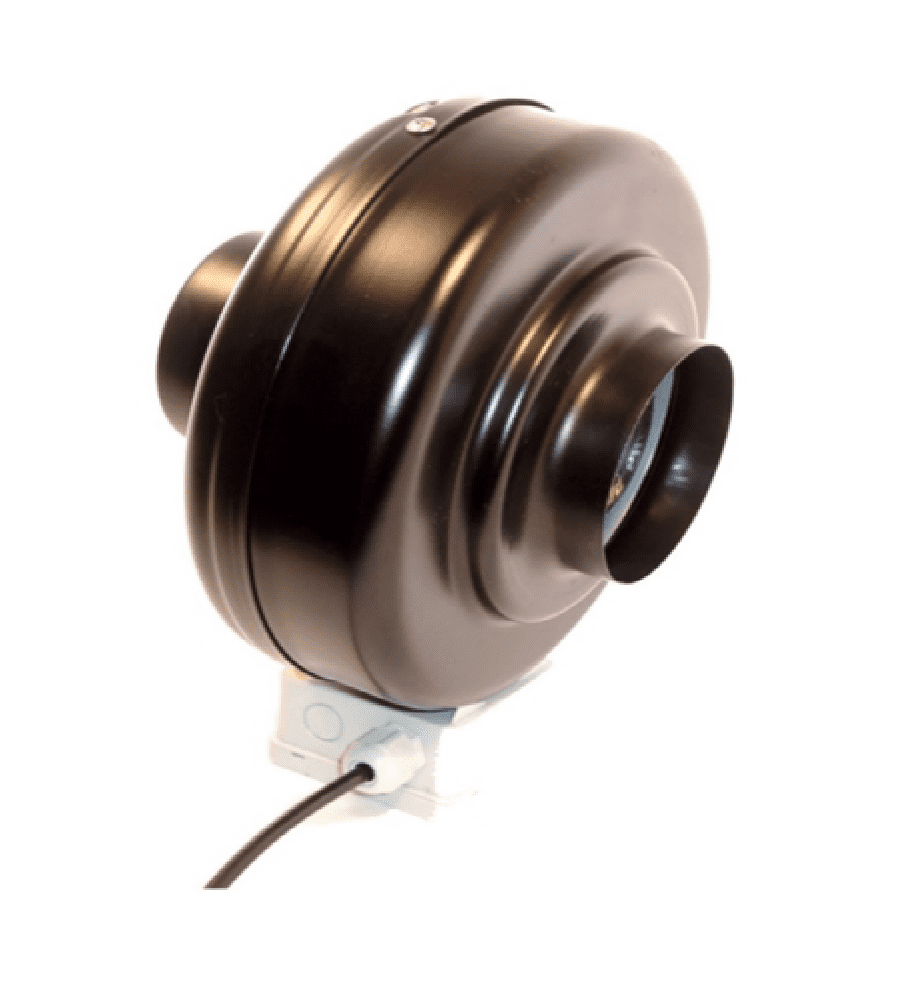

The PSP ILDF2-160 is a high-performance in-line duct co-axial pipe fan designed for commercial, industrial and HVAC ventilation systems requiring reliable airflow and pressure performance. Constructed with a durable metal casing and powered by a PSC motor, this fan delivers efficient air movement for both extraction and supply air applications. Its compact in-line design enables simple installation within circular ductwork whilst providing dependable continuous-duty operation.

Key Product Features

• Metal casing construction
• Single-phase 230V~50Hz/60Hz PSC motor
• In-line duct co-axial pipe fan design
• Suitable for extraction or supply air applications
• Airflow up to 755m³/h
• Static pressure up to 360Pa
• Totally enclosed motor construction
• IP44 motor protection
• Class B insulation
• Sealed-for-life ball bearings
• Continuous-duty operation
• Operating temperature range from -40°C to +60°C
• Suitable for commercial and industrial ventilation systems

Technical Specifications

• Model: ILDF2-160
• Brand: PSP
• Fan Type: In-Line Duct Co-Axial Pipe Fan
• Casing Material: Metal
• Voltage: 230V~50Hz/60Hz
• Input Power: 125W
• Speed: 2410 RPM
• Static Pressure: 360Pa
• Air Volume: 755m³/h

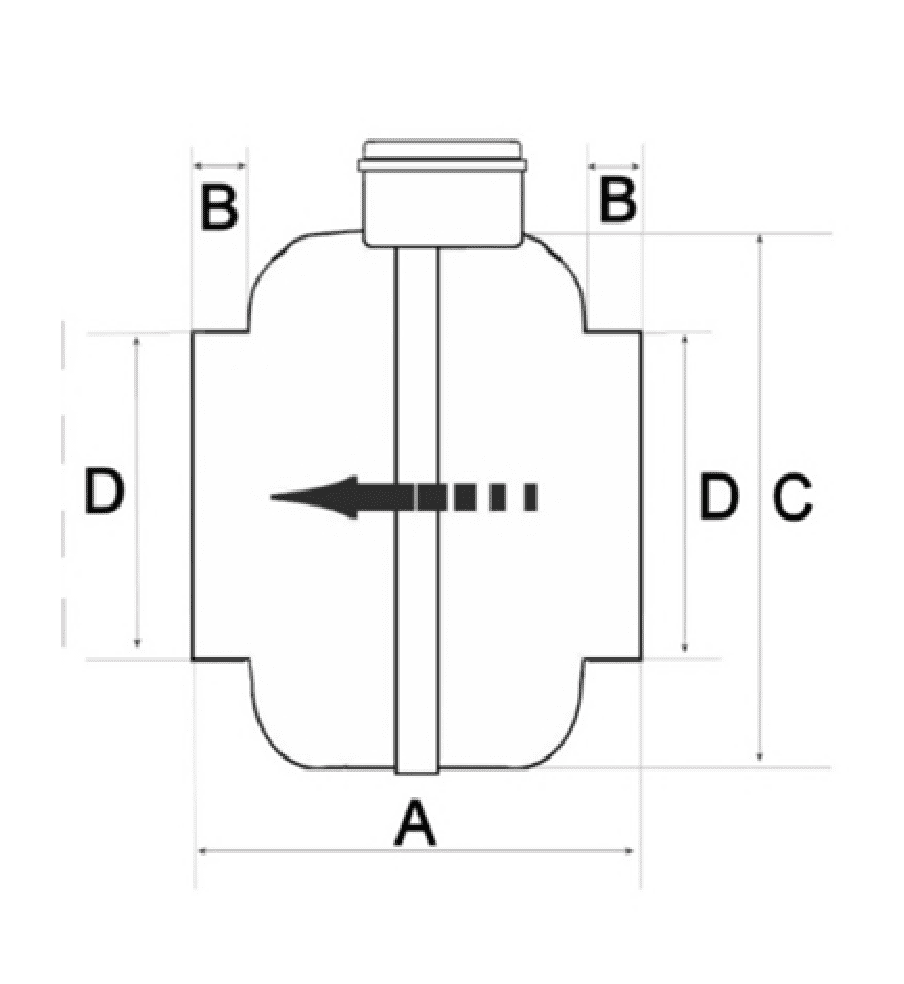

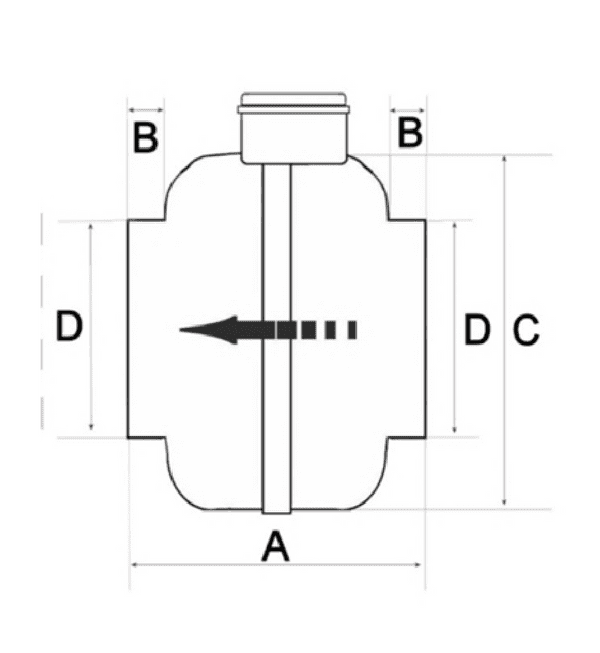

• Dimension A: 222mm
• Dimension B: 28mm
• Dimension C: 333mm
• Dimension D: 160mm
• Protection Rating: IP44
• Insulation Class: Class B

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
