Introduction

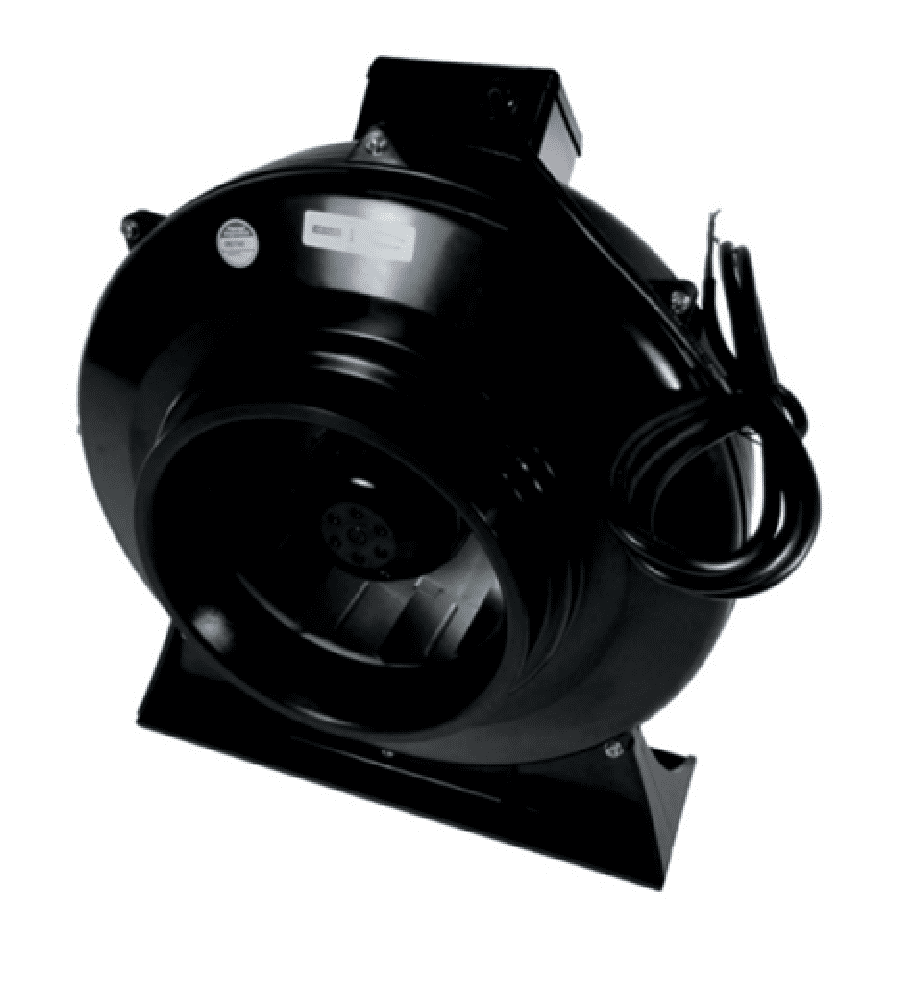

The PSP ILDF2-150P is a compact and efficient in-line duct co-axial pipe fan designed for domestic, commercial and light industrial ventilation applications. Featuring a durable plastic casing and a reliable PSC motor, this fan provides effective airflow for both supply and extraction systems. Its lightweight construction and compact dimensions make it ideal for installation within circular ductwork where dependable ventilation performance is required.

Key Product Features

• Durable plastic casing construction
• Single-phase 230V~50Hz/60Hz PSC motor
• In-line duct co-axial pipe fan design
• Suitable for extraction or supply air applications
• Airflow up to 630m³/h
• Static pressure up to 355Pa
• Totally enclosed motor construction
• IP44 motor protection
• Class B insulation
• Sealed-for-life ball bearings
• Continuous-duty operation
• Operating temperature range from -40°C to +60°C
• Suitable for domestic, commercial and industrial ventilation systems

Technical Specifications

• Model: ILDF2-150P
• Brand: PSP
• Fan Type: In-Line Duct Co-Axial Pipe Fan
• Casing Material: Plastic
• Voltage: 230V~50Hz/60Hz
• Input Power: 100W
• Speed: 2550 RPM
• Static Pressure: 355Pa
• Air Volume: 630m³/h

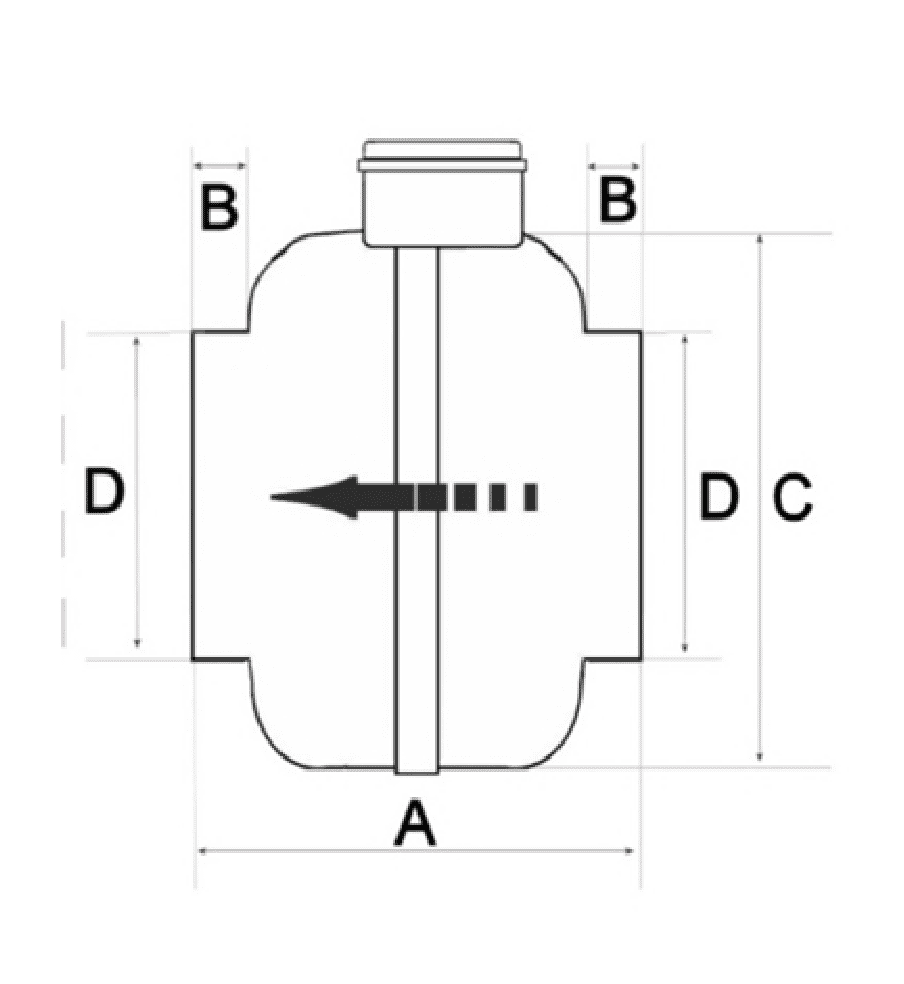

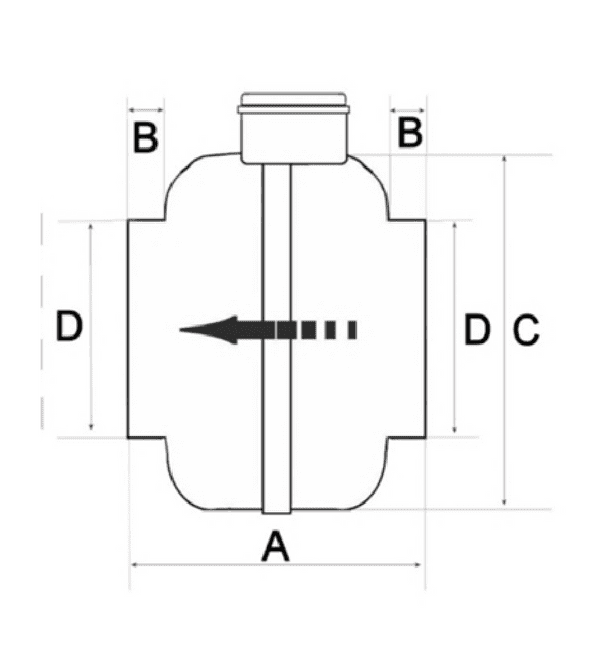

• Dimension A: 195mm
• Dimension B: 25mm
• Dimension C: 278mm
• Dimension D: 150mm
• Protection Rating: IP44
• Insulation Class: Class B

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
