Introduction

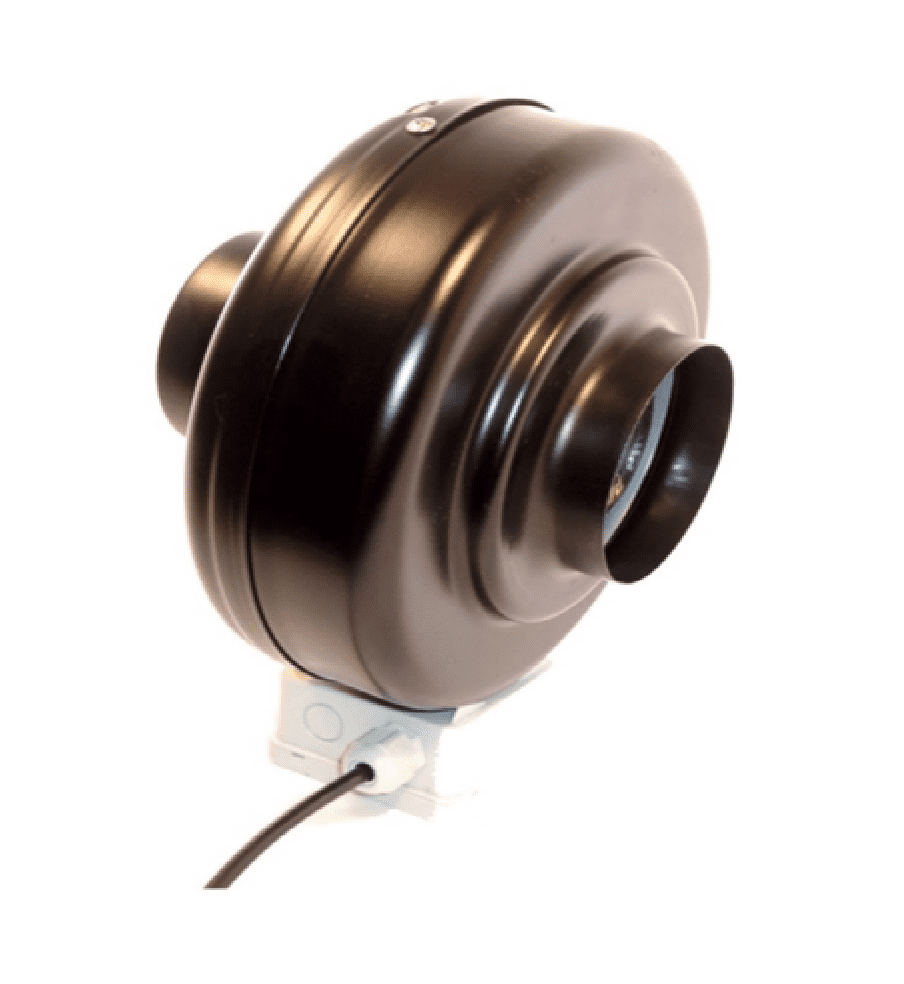

The PSP ILDF2-150 is a robust in-line duct co-axial pipe fan designed for efficient air movement in commercial, industrial and HVAC ventilation systems. Featuring a durable metal casing and a reliable PSC motor, this fan provides strong airflow performance for both supply and extraction applications. Its compact in-line design allows straightforward installation within circular ductwork, making it suitable for a wide range of ventilation projects.
Key Product Features
- Metal casing construction
- Single-phase 230V~50Hz/60Hz PSC motor
- In-line duct co-axial pipe fan design
- Suitable for extraction or supply air applications
- Airflow up to 720m³/h
- Static pressure up to 338Pa
- Totally enclosed motor construction
- IP44 motor protection
- Class B insulation
- Sealed-for-life ball bearings
- Continuous-duty operation
- Operating temperature range from -40°C to +60°C
- Suitable for commercial and industrial ventilation systems
Technical Specifications
- Model: ILDF2-150
- Brand: PSP
- Fan Type: In-Line Duct Co-Axial Pipe Fan
- Casing Material: Metal
- Voltage: 230V~50Hz/60Hz
- Input Power: 95W
- Speed: 2480 RPM
- Static Pressure: 338Pa
- Air Volume: 720m³/h

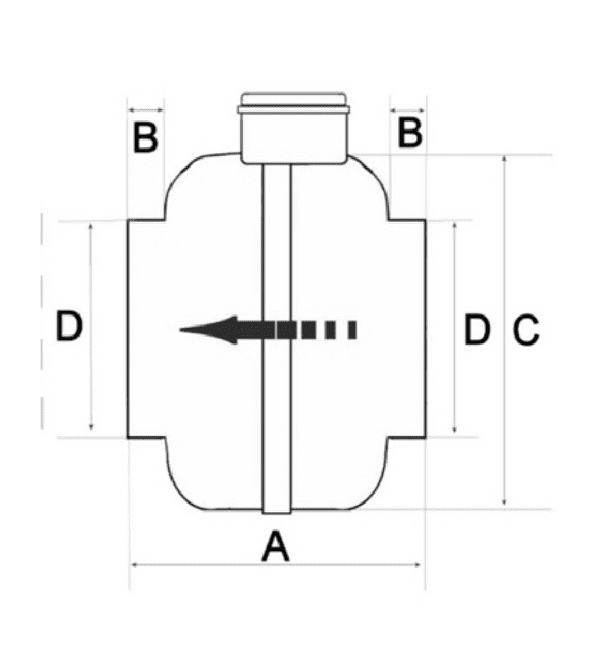

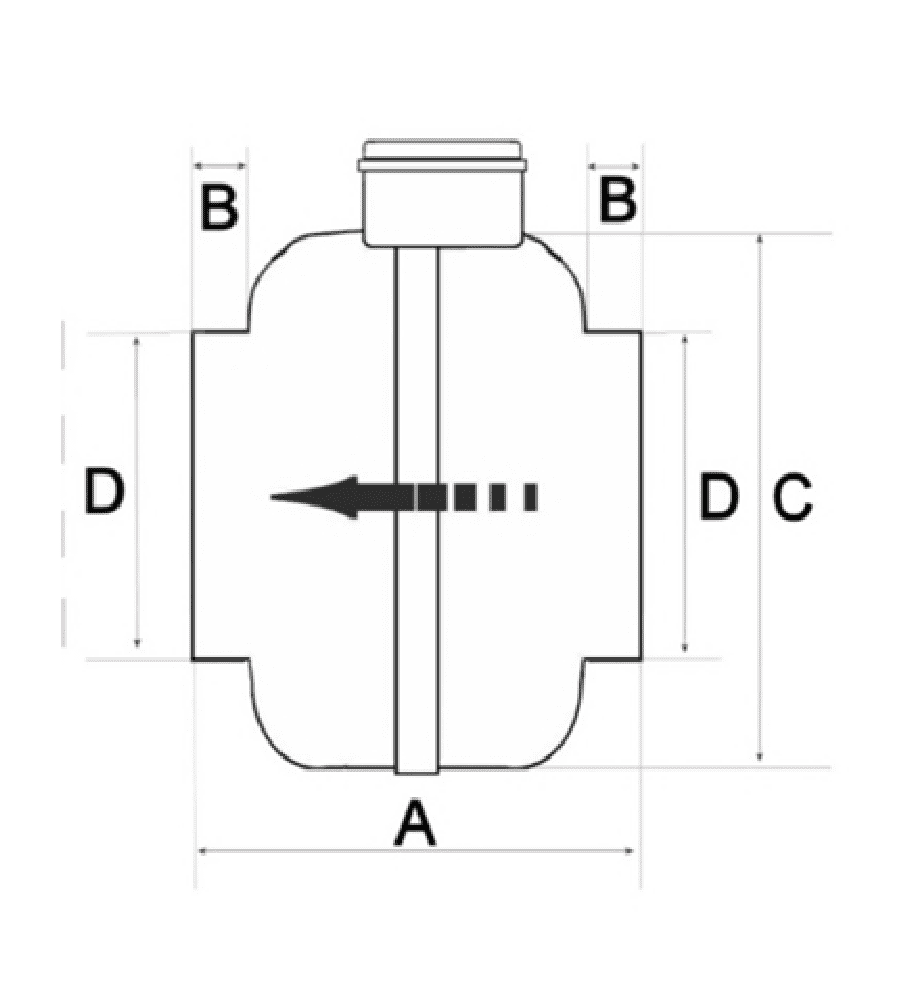

- Dimension A: 222mm
- Dimension B: 28mm
- Dimension C: 333mm
- Dimension D: 150mm
- Protection Rating: IP44
- Insulation Class: Class B
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
