Introduction

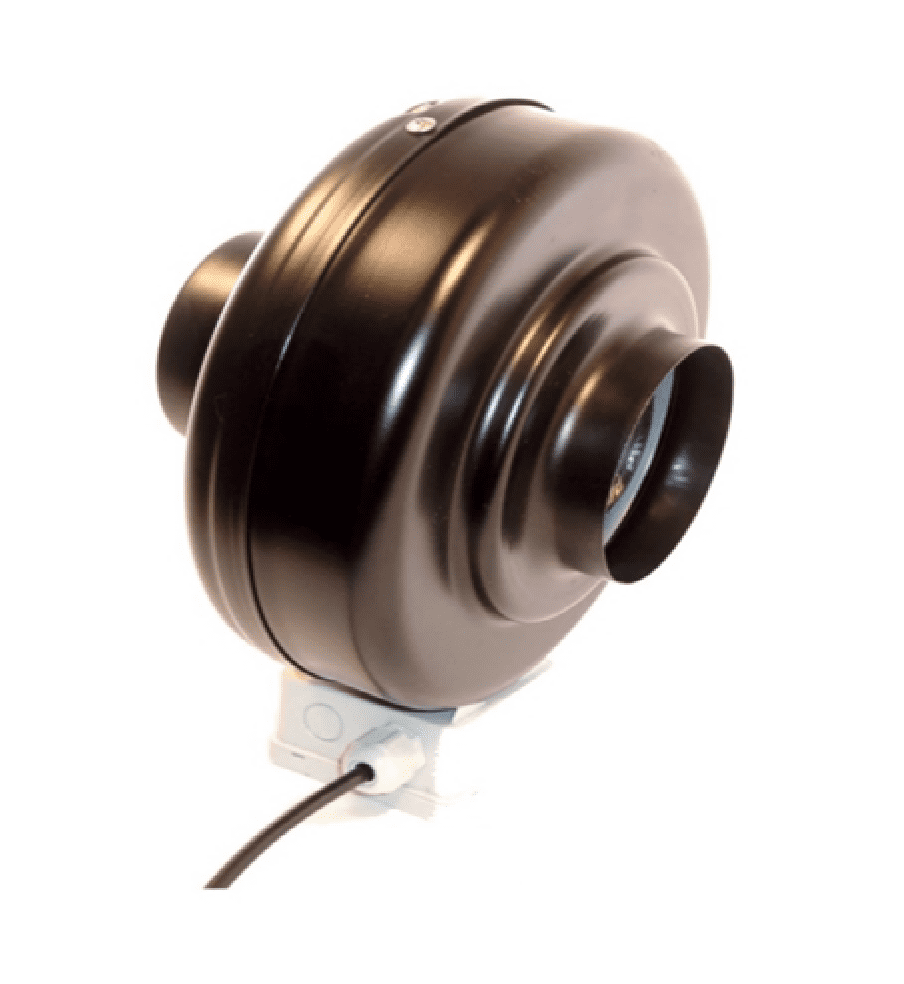

The PSP ILDF2-125 is a compact in-line duct co-axial pipe fan designed to provide efficient airflow for commercial, industrial and domestic ventilation systems. Constructed with a durable metal casing and powered by a reliable PSC motor, this fan delivers consistent performance for both air supply and extraction applications. Its compact dimensions make it ideal for installation within circular ductwork where space is limited whilst maintaining dependable ventilation performance.
Key Product Features
- Metal casing construction
- Single-phase 230V~50Hz/60Hz PSC motor
- In-line duct co-axial pipe fan design
- Suitable for extraction or supply air applications
- Airflow up to 405m³/h
- Static pressure up to 310Pa
- Totally enclosed motor construction
- IP44 motor protection
- Class B insulation
- Sealed-for-life ball bearings
- Continuous-duty operation
- Operating temperature range from -40°C to +60°C
- Suitable for commercial and industrial ventilation systems
Technical Specifications
- Model: ILDF2-125
- Brand: PSP
- Fan Type: In-Line Duct Co-Axial Pipe Fan
- Casing Material: Metal
- Voltage: 230V~50Hz/60Hz
- Input Power: 66W
- Speed: 2260 RPM
- Static Pressure: 310Pa
- Air Volume: 405m³/h

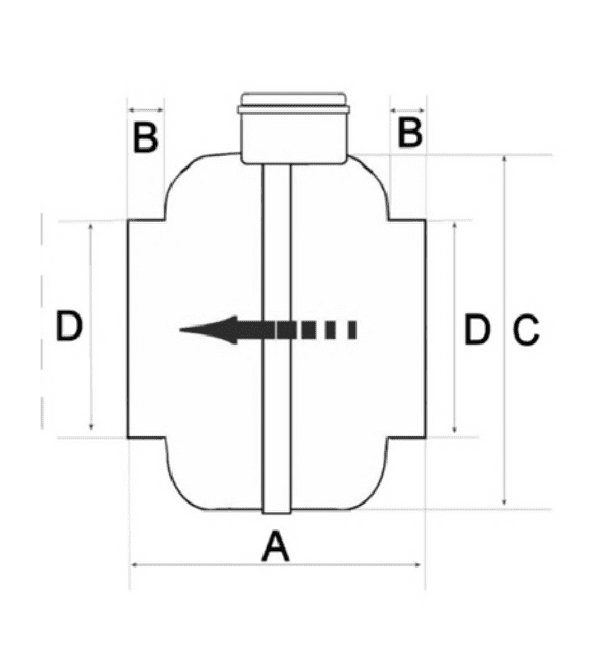

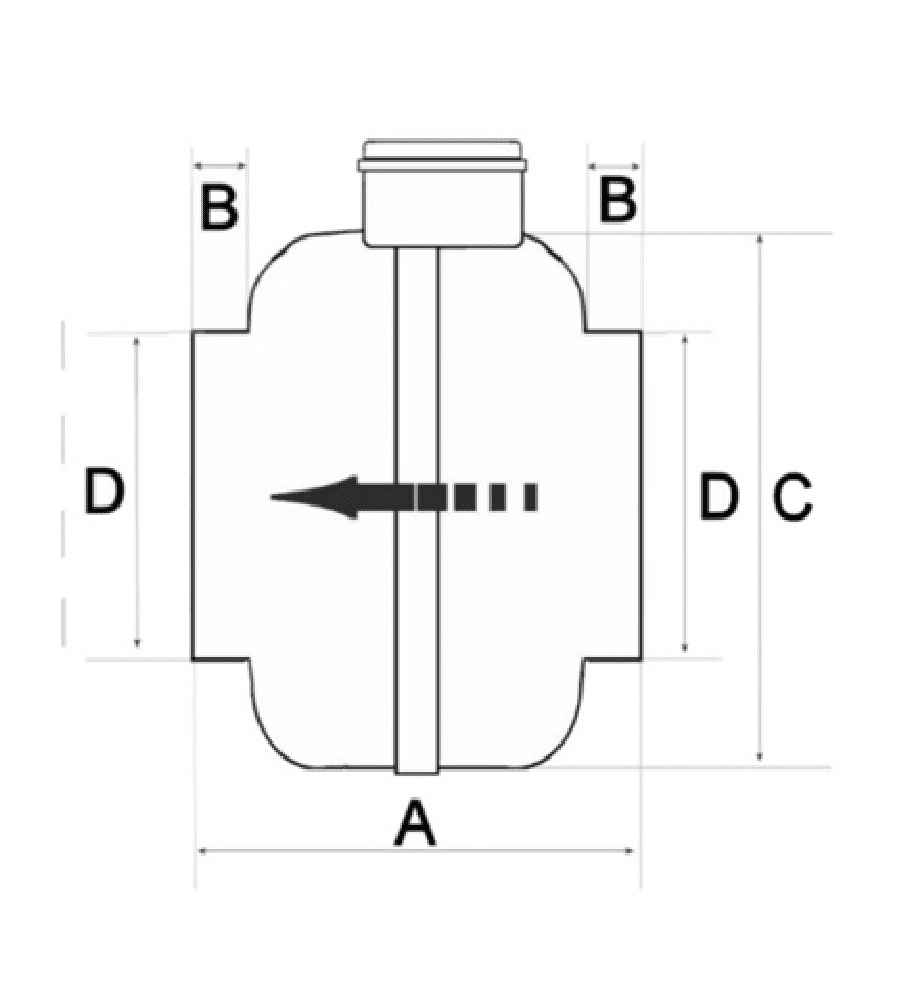

- Dimension A: 195mm
- Dimension B: 27mm
- Dimension C: 243mm
- Dimension D: 125mm
- Protection Rating: IP44
- Insulation Class: Class B
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
