Introduction

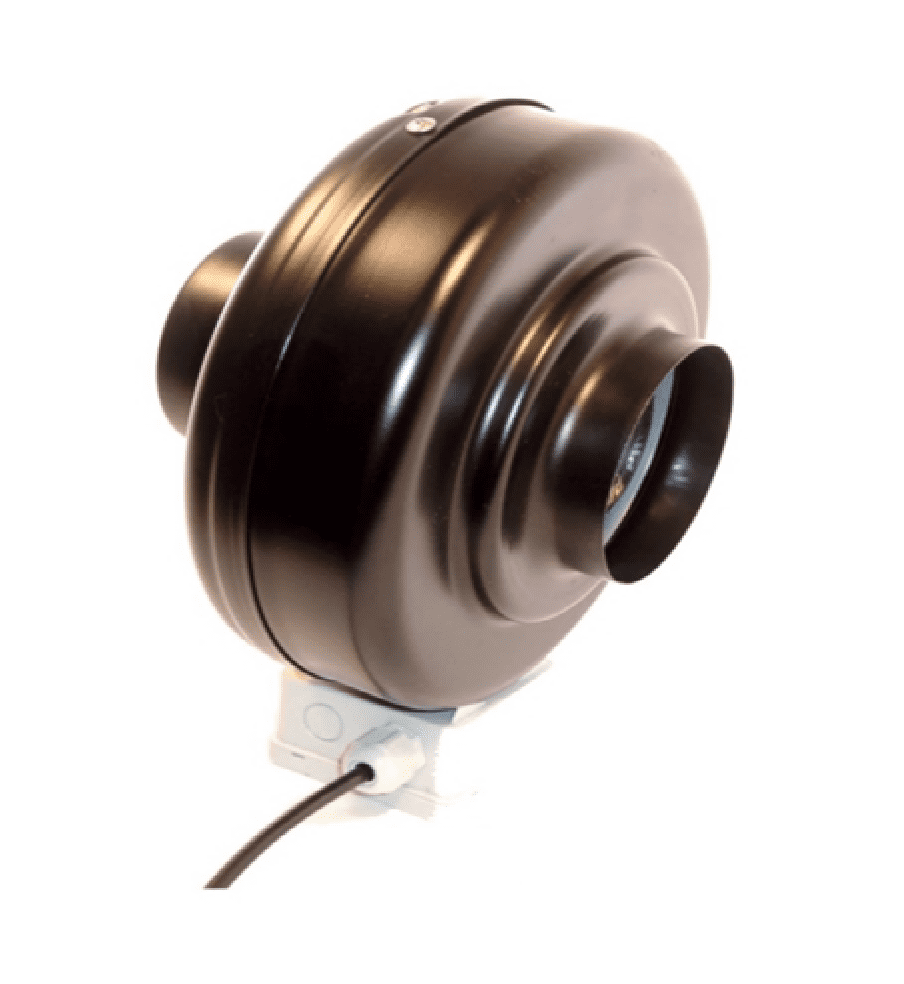

The PSP ILDF2-100 is a compact in-line duct co-axial pipe fan designed for commercial and domestic ventilation applications requiring reliable airflow performance in ducted systems. Manufactured with a durable metal casing and powered by a PSC motor, this fan provides efficient air movement whilst maintaining low maintenance requirements. Suitable for extraction and supply air applications, the ILDF2-100 is ideal for ventilation systems in offices, workshops, retail environments and HVAC installations.
Key Product Features
- Metal casing construction
- Single-phase 230V~50Hz/60Hz PSC motor
- In-line duct co-axial pipe fan design
- Suitable for extraction or supply air applications
- Airflow up to 290m³/h
- Static pressure up to 350Pa
- Totally enclosed motor construction
- IP44 motor protection
- Class B insulation
- Sealed-for-life ball bearings
- Continuous-duty operation
- Operating temperature range from -40°C to +60°C
- Suitable for commercial and industrial ventilation systems
Technical Specifications
- Model: ILDF2-100
- Brand: PSP
- Fan Type: In-Line Duct Co-Axial Pipe Fan
- Casing Material: Metal
- Voltage: 230V~50Hz/60Hz
- Input Power: 62W
- Speed: 2360 RPM
- Static Pressure: 350Pa
- Air Volume: 290m³/h

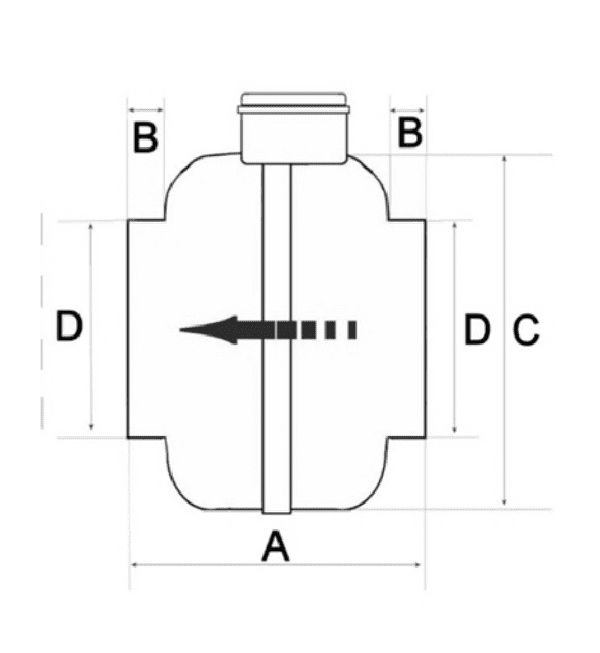

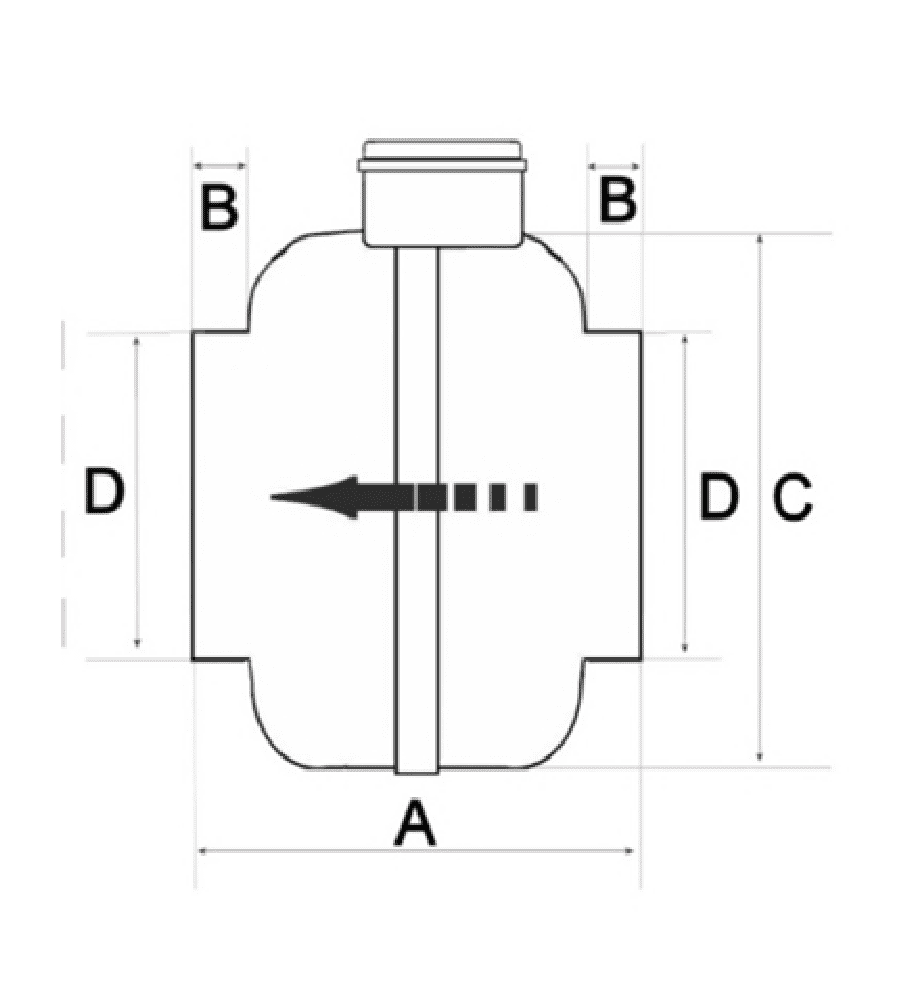

- Dimension A: 194mm
- Dimension B: 23mm
- Dimension C: 243mm
- Dimension D: 100mm
- Protection Rating: IP44
- Insulation Class: Class B
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
