Introduction

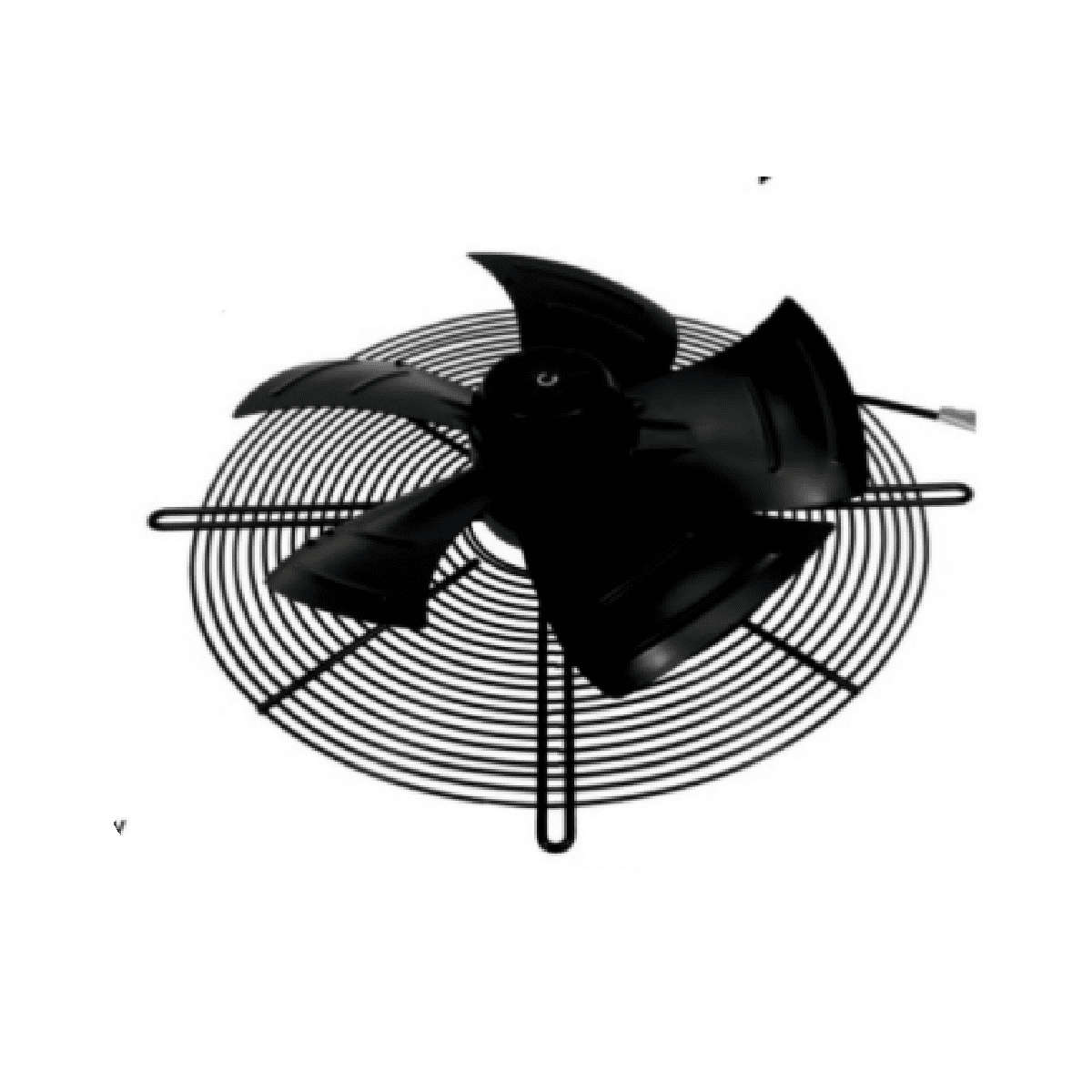

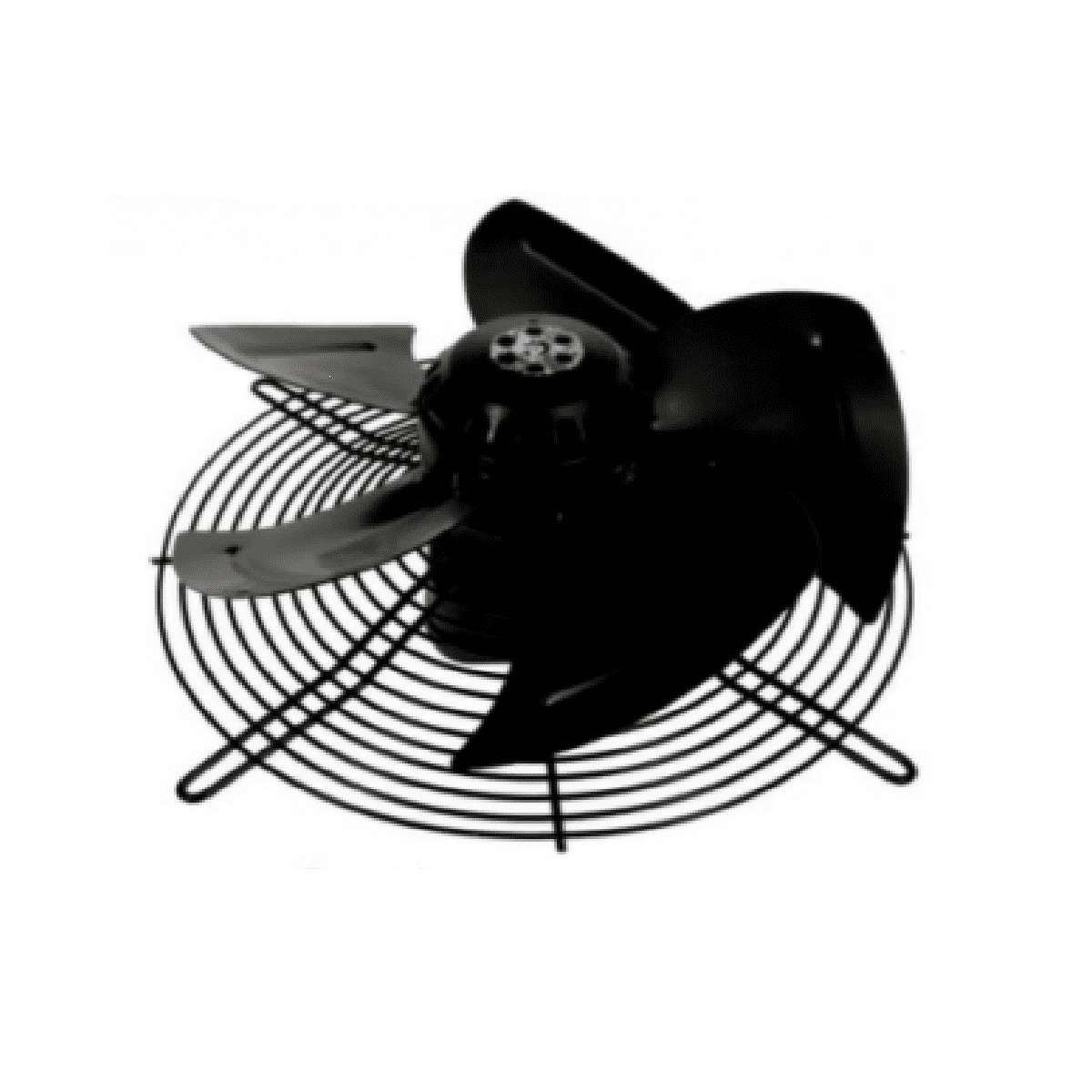

The GMAF1-300BS4-1 is a compact, single-phase guard-mounted axial fan designed for reliable airflow performance in industrial and commercial ventilation applications. Built with a PSC motor and sealed-for-life bearings, it provides dependable operation with low maintenance requirements. Ideal for extraction, cooling, and general air movement systems.

Key Product Features

• Single-phase 230V supply
• PSC motor for energy-efficient performance
• Forward air direction (blowing or sucking depending on installation)
• Fully enclosed motor housing for added durability
• Sealed-for-life ball bearings
• Tough guard-mounted design suitable for industrial environments
• Operating temperature: -40°C to +60°C

Technical Specifications

• Part Number: GMAF1-300BS4-1
• Phase: 1PH
• Motor Power: 85W
• Motor Speed: 1380 RPM
• Air Volume: 1810 m³/h
• Connection Type: Terminal block
• Guard Dimensions: X 351 mm, Y 368 mm
• Mounting: Standard flat guard

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
