Introduction

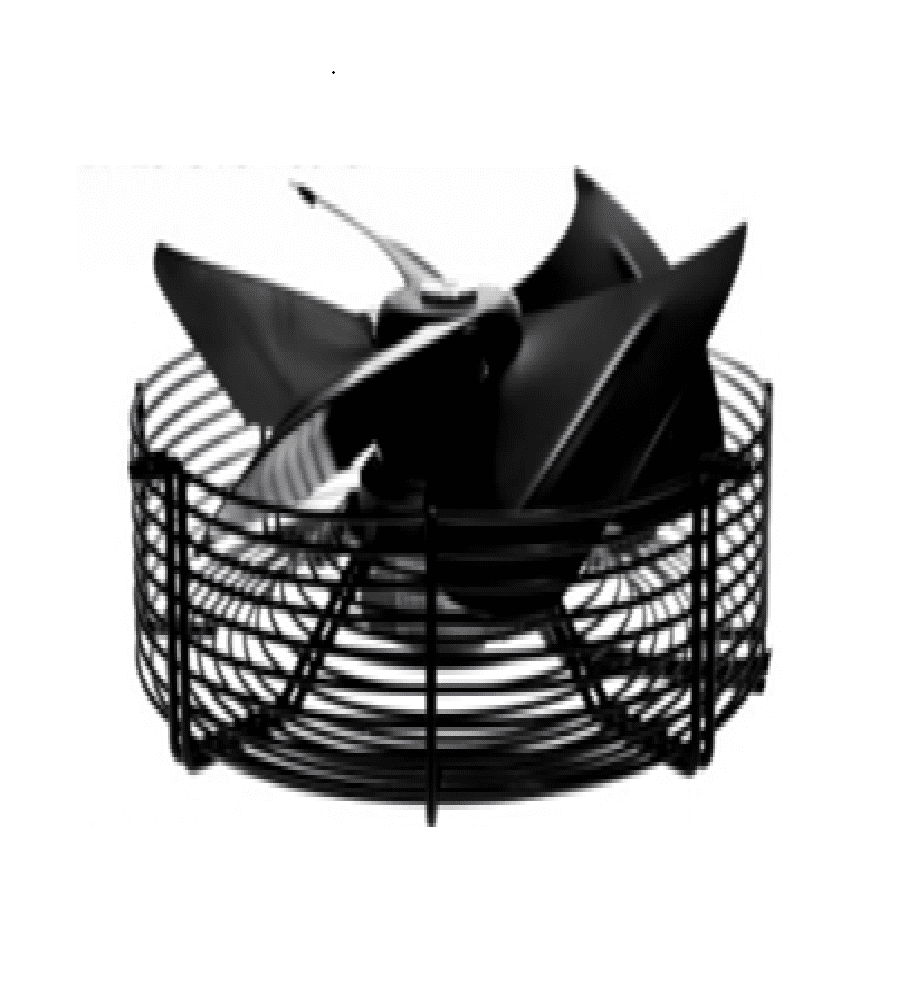

The PSP GMA1-300S-EC-2E-1 is a high-efficiency EC guard mounted axial fan designed for commercial refrigeration, HVAC and industrial ventilation systems requiring reliable and energy-efficient airflow performance. Operating on a single-phase 230V~50Hz/60Hz supply, this model features advanced ECM motor technology with variable speed functionality, enabling improved airflow control and lower operating costs. Built with sealed-for-life ball bearings and a totally enclosed motor design, the fan is engineered for dependable continuous-duty operation in demanding environments. This version is configured for sucking airflow and features an extended guard P.C.D. arrangement for specialist mounting applications.
Key Product Features
Single-phase 230V~50Hz/60Hz EC motor
High-efficiency ECM motor technology
Variable speed controllable operation
Guard mounted axial fan design
Sucking airflow configuration for extraction applications

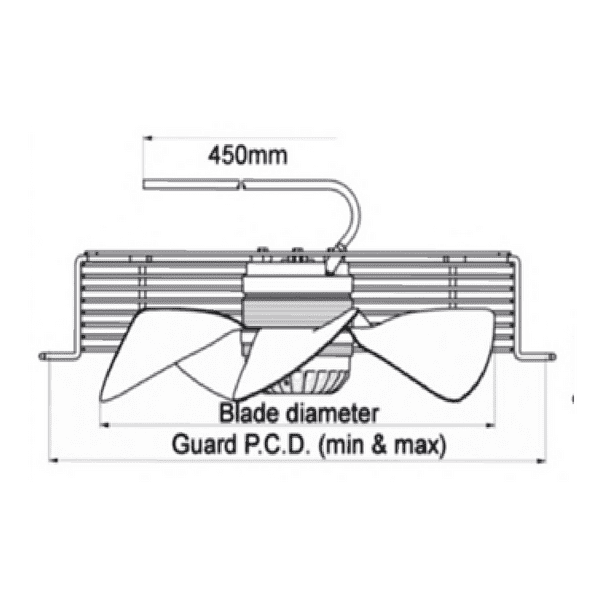

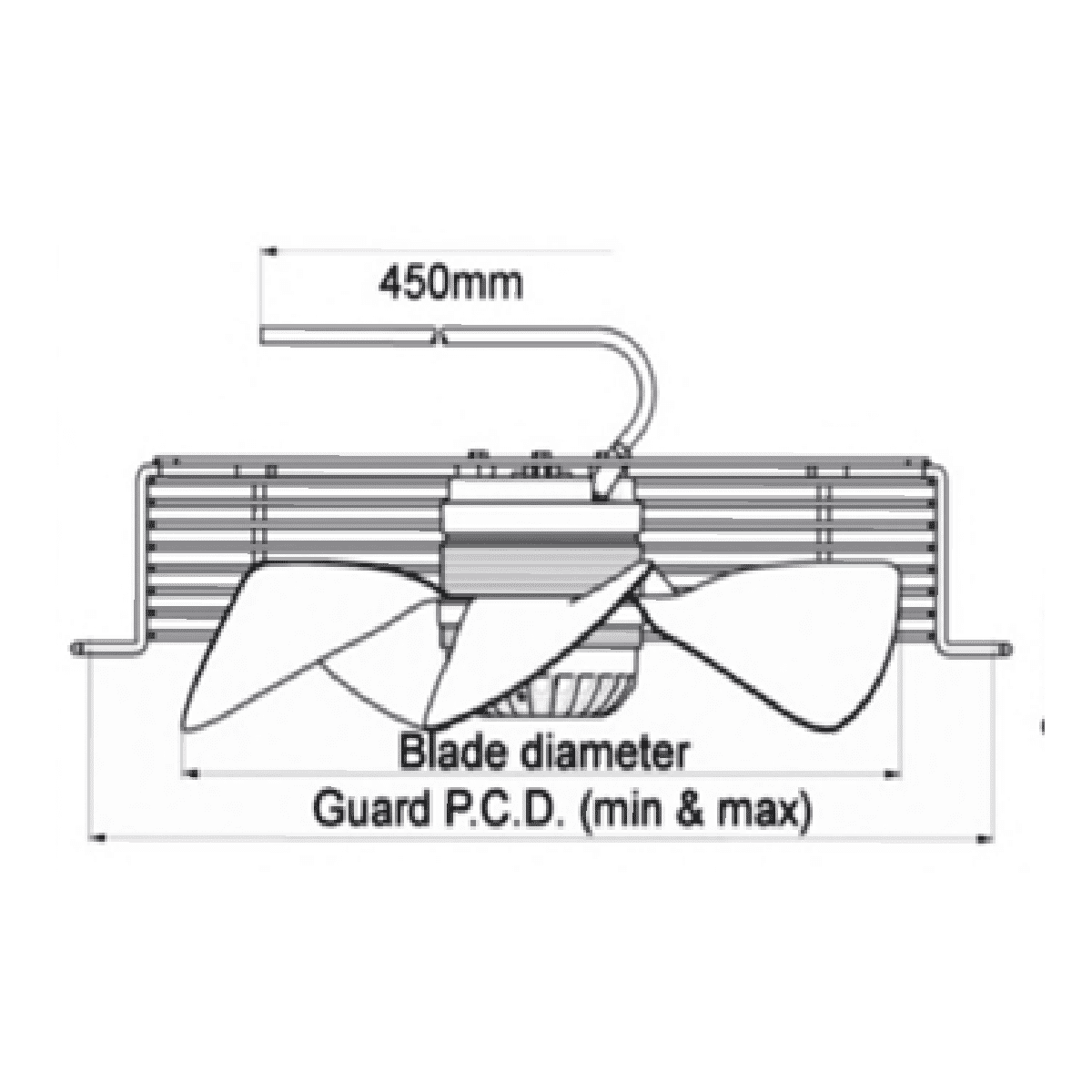

Extended guard P.C.D. mounting arrangement
300mm blade diameter
Air volume: 2850m³/h
Maximum motor speed: 1750 RPM
170W input power
Totally enclosed motor construction
IP44 motor protection rating
Class F insulation
Sealed-for-life ball bearings
Dual-rated continuous-duty operation
Operating temperature range from –25°C to +60°C
Suitable for refrigeration, condensers, HVAC systems and OEM ventilation equipment
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
