Introduction

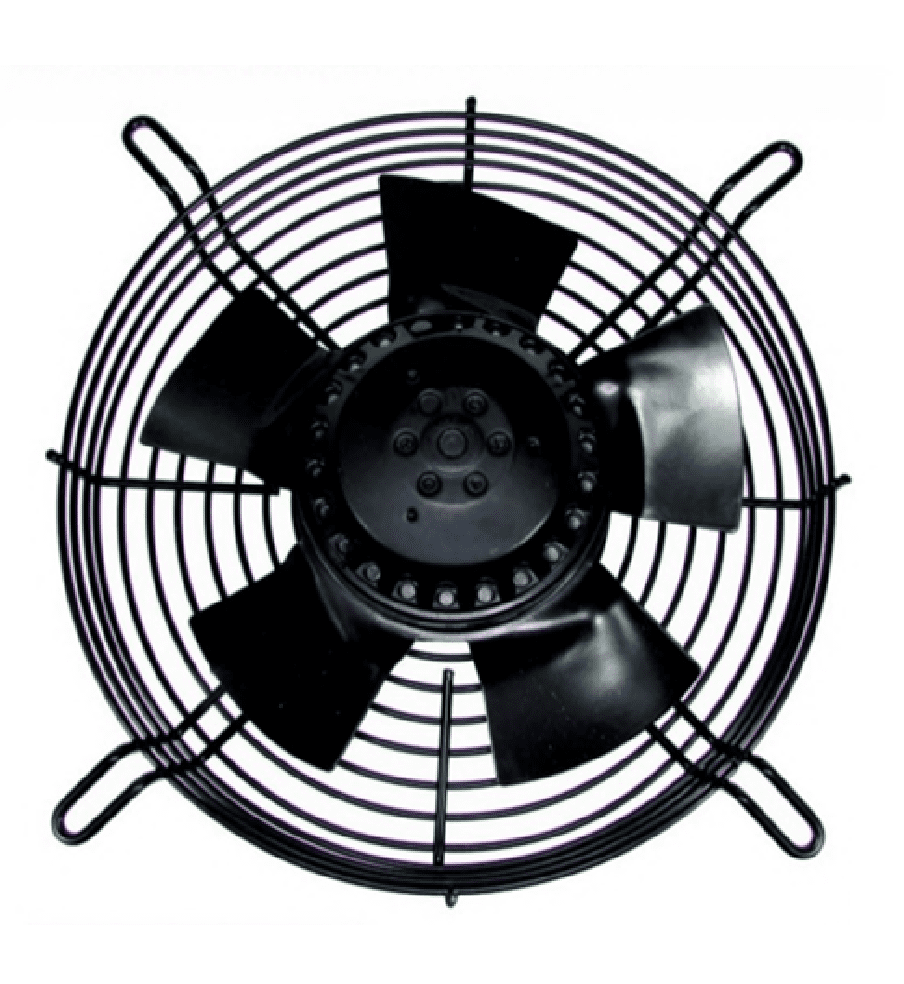

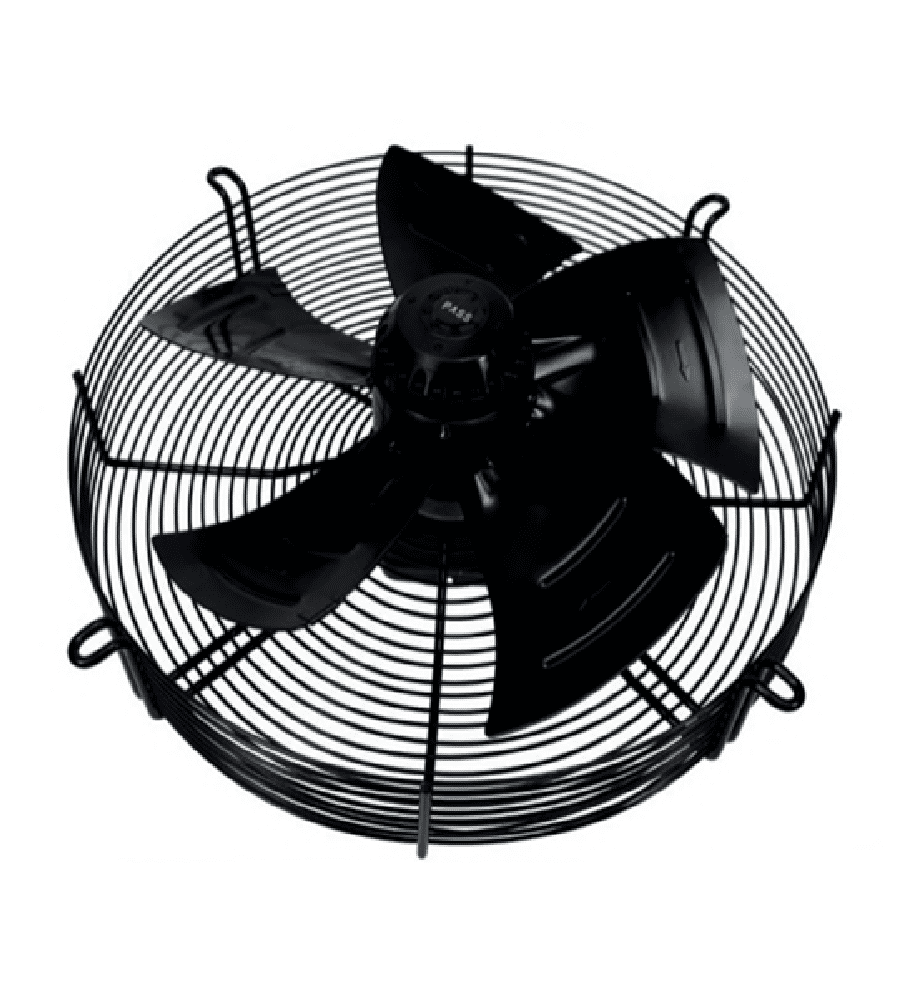

The PSP GMA1-200S2-9BE-1 is a high-performance extended guard mounted axial fan designed for commercial, industrial and OEM ventilation applications. Featuring a powerful 9-blade impeller, PSC motor and extended basket guard construction, this fan delivers enhanced airflow performance whilst providing additional guard clearance for specialist installations. Suitable for both sucking and blowing airflow configurations, it is ideal for machinery cooling, refrigeration equipment, condensers, electrical enclosures and industrial ventilation systems.

Key Product Features

• Extended guard mounted axial fan
• 200mm fan diameter
• Single-phase 230V~50Hz/60Hz operation
• PSC motor design
• High-performance 9-blade impeller
• 450mm connection lead
• Suitable for sucking or blowing airflow
• Airflow capacity of 915 m³/h
• 2600 RPM motor speed
• 64W power input
• Class F insulation
• IP54 protection rating
• Totally enclosed motor construction
• Continuously rated operation
• Sealed-for-life ball bearings
• Operating temperature range from -40°C to +60°C
• Extended basket guard design for additional clearance

Technical Specifications

• Model: GMA1-200S2-9BE-1
• Brand: PSP
• Fan Type: Extended Guard Mounted Axial Fan
• Voltage: 230V~50Hz/60Hz
• Phase: 1PH
• Motor Speed: 2600 RPM
• Input Power: 64W
• Air Volume: 915 m³/h
• Connection Type: 450mm Lead
• Blade Design: 9 Blade
• Guard Depth: Extended Type

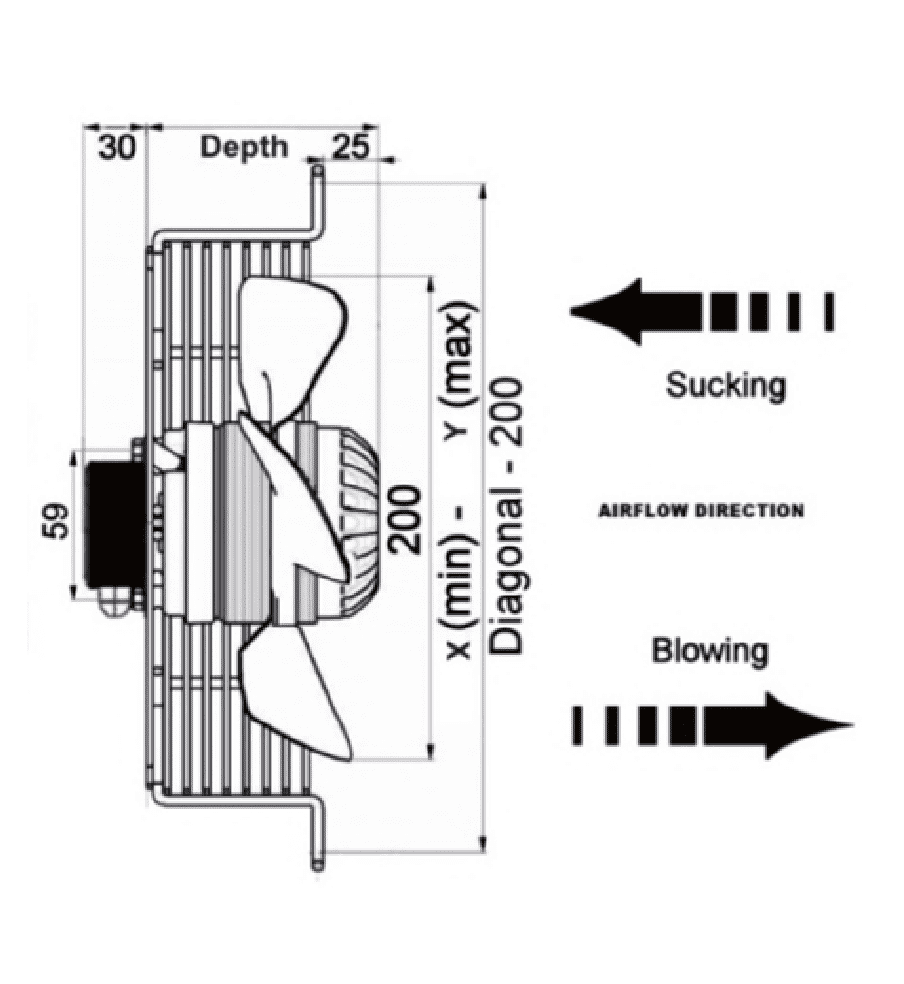

• Minimum Guard Dimension (X): 231mm
• Maximum Guard Dimension (Y): 260mm
• Insulation Class: Class F
• Protection Rating: IP54
• Bearing Type: Sealed-for-Life Ball Bearings
• Temperature Range: -40°C to +60°C

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
