Introduction

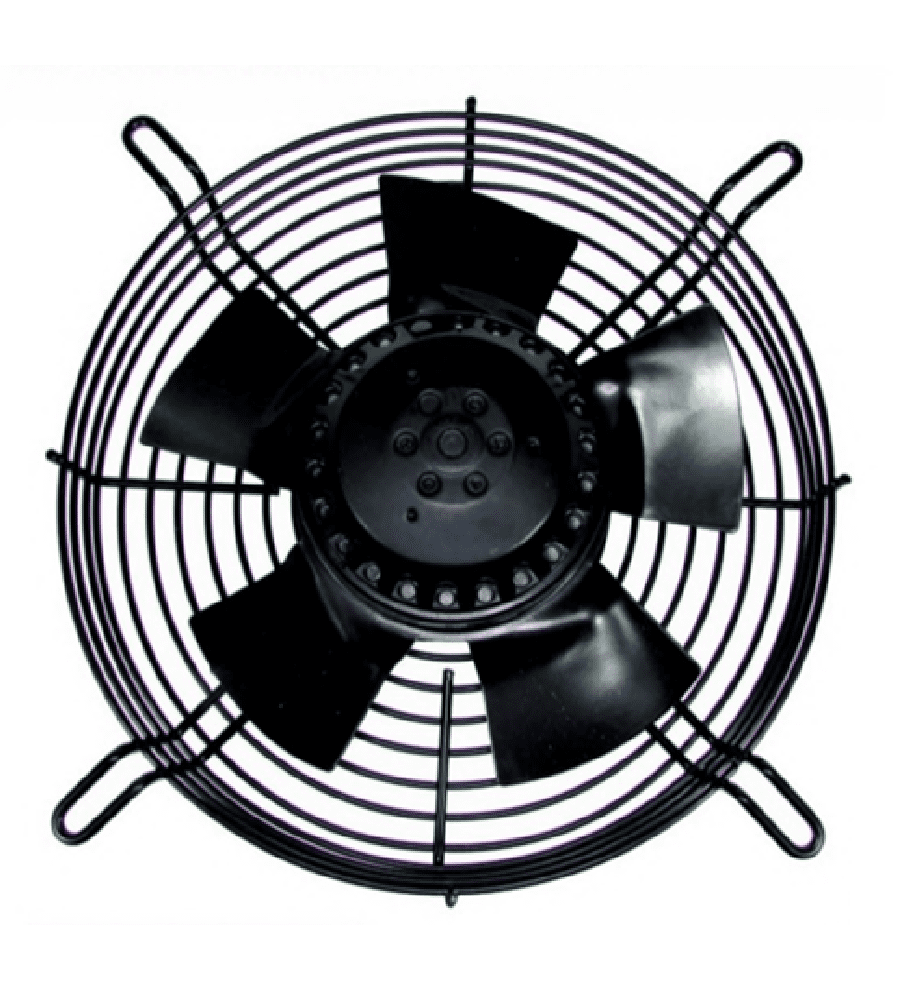

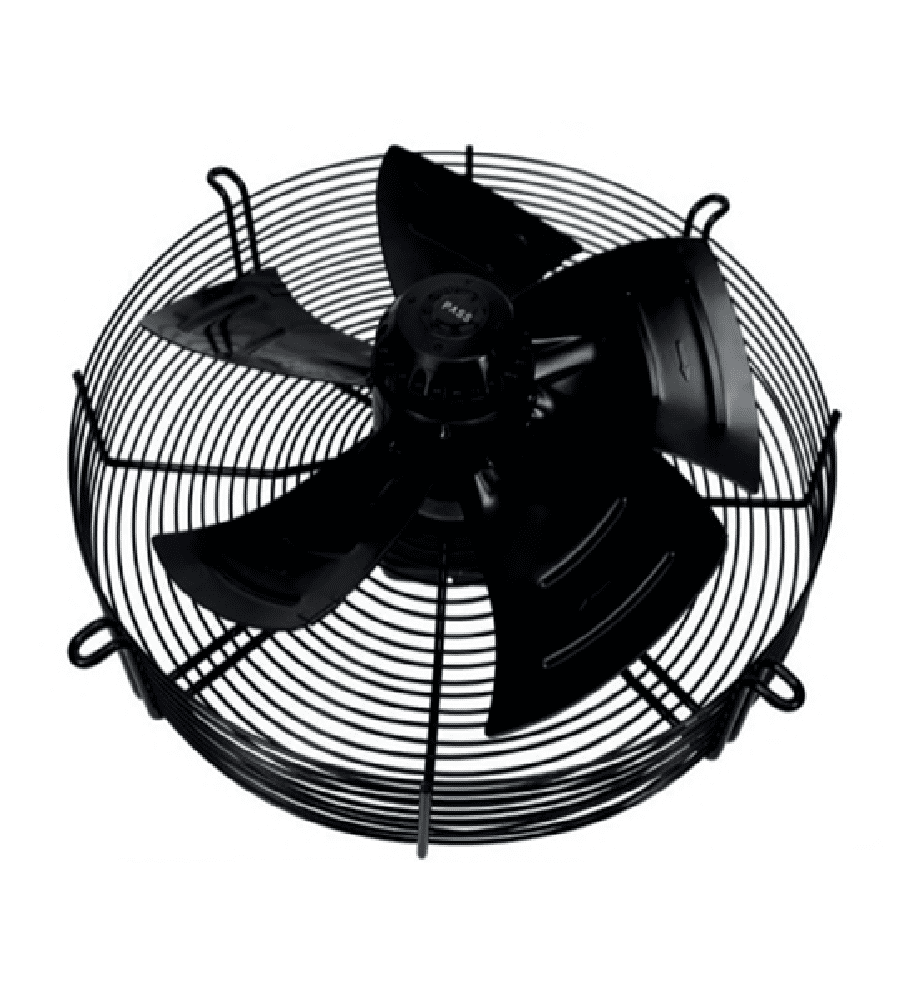

The PSP GMA1-200S2-7BE-1 is an extended guard mounted axial fan designed for commercial, industrial and OEM ventilation applications requiring enhanced safety clearance and reliable airflow performance. Featuring a PSC motor, extended basket guard construction and high-performance 7-blade impeller, this fan provides efficient cooling, extraction and air movement. Suitable for both sucking and blowing airflow configurations, it is ideal for machinery cooling, refrigeration systems, electrical enclosures and HVAC equipment.

Key Product Features

• Extended guard mounted axial fan
• 200mm fan diameter
• Single-phase 230V~50Hz/60Hz operation
• PSC motor design
• High-performance 7-blade impeller
• Short lead connection
• Suitable for sucking or blowing airflow
• Class F insulation
• IP54 protection rating
• Totally enclosed motor construction
• Continuously rated operation
• Sealed-for-life ball bearings
• Operating temperature range from -40°C to +60°C
• Extended basket guard design
• Additional guard clearance for specialist applications

Technical Specifications

• Model: GMA1-200S2-7BE-1
• Brand: PSP
• Fan Type: Extended Guard Mounted Axial Fan
• Voltage: 230V~50Hz/60Hz
• Phase: 1PH
• Motor Speed: 2500 RPM
• Input Power: 120W
• Air Volume: TBC
• Connection Type: Short Lead
• Blade Design: 7 Blade
• Guard Depth: Extended Type

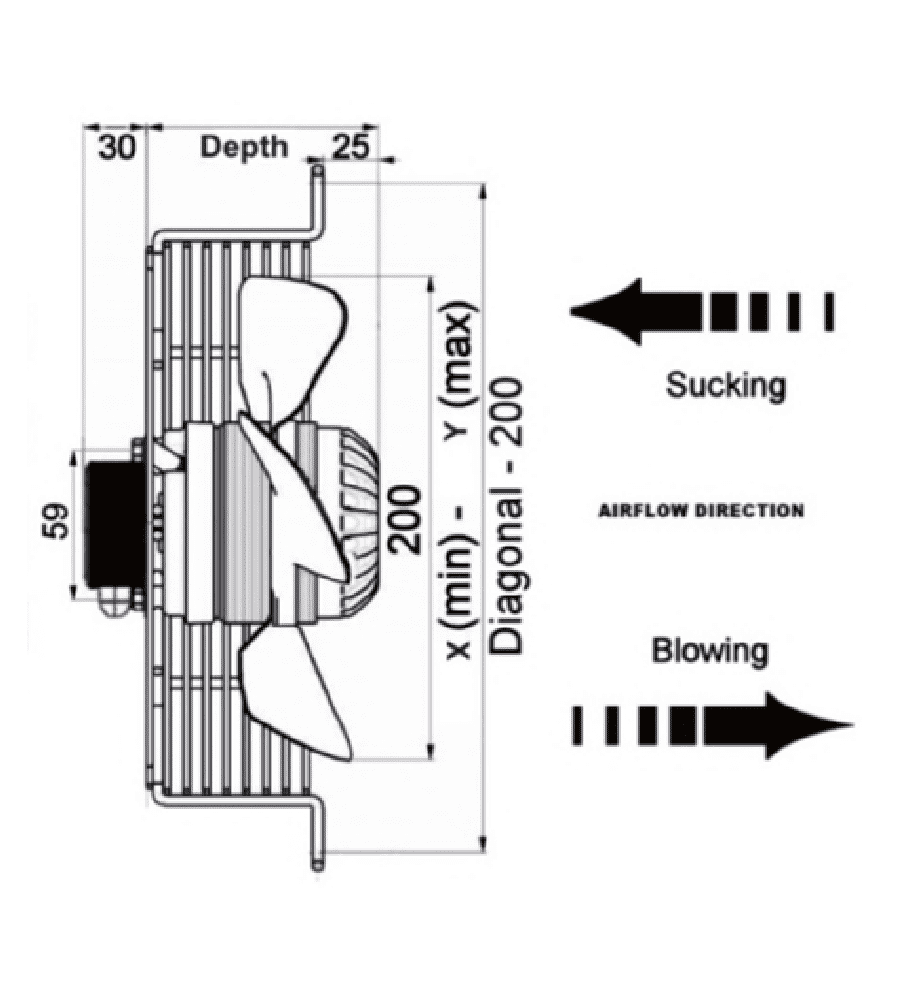

• Minimum Guard Dimension (X): 231mm
• Maximum Guard Dimension (Y): 260mm
• Insulation Class: Class F
• Protection Rating: IP54
• Bearing Type: Sealed-for-Life Ball Bearings
• Temperature Range: -40°C to +60°C

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
