Introduction
The PSP GMA1-200S2-7B is a specialist guard mounted axial fan featuring a 7-blade impeller design for enhanced airflow performance. Designed for commercial, industrial and OEM applications, this fan incorporates a PSC motor, robust basket guard construction and sealed-for-life bearings to provide dependable air movement. Suitable for cooling, extraction and ventilation duties, it is ideal for machinery cooling, refrigeration equipment, control panels and HVAC applications.
Key Product Features
- Guard mounted axial fan
- 200mm fan diameter
- Single-phase 230V~50Hz/60Hz operation
- PSC motor design
- High-performance 7-blade impeller
- Short lead connection
- Suitable for sucking or blowing airflow
- Class F insulation
- IP54 protection rating
- Totally enclosed motor construction
- Continuously rated operation
- Sealed-for-life ball bearings
- Operating temperature range from -40°C to +60°C
- Standard basket guard design with 45mm depth
- Optimised for industrial cooling and ventilation applications
Technical Specifications
- Model: GMA1-200S2-7B
- Brand: PSP
- Fan Type: Guard Mounted Axial Fan
- Voltage: 230V~50Hz/60Hz
- Phase: 1PH
- Motor Speed: 2500 RPM
- Input Power: 120W
- Air Volume: TBC
- Connection Type: Short Lead
- Blade Design: 7 Blade

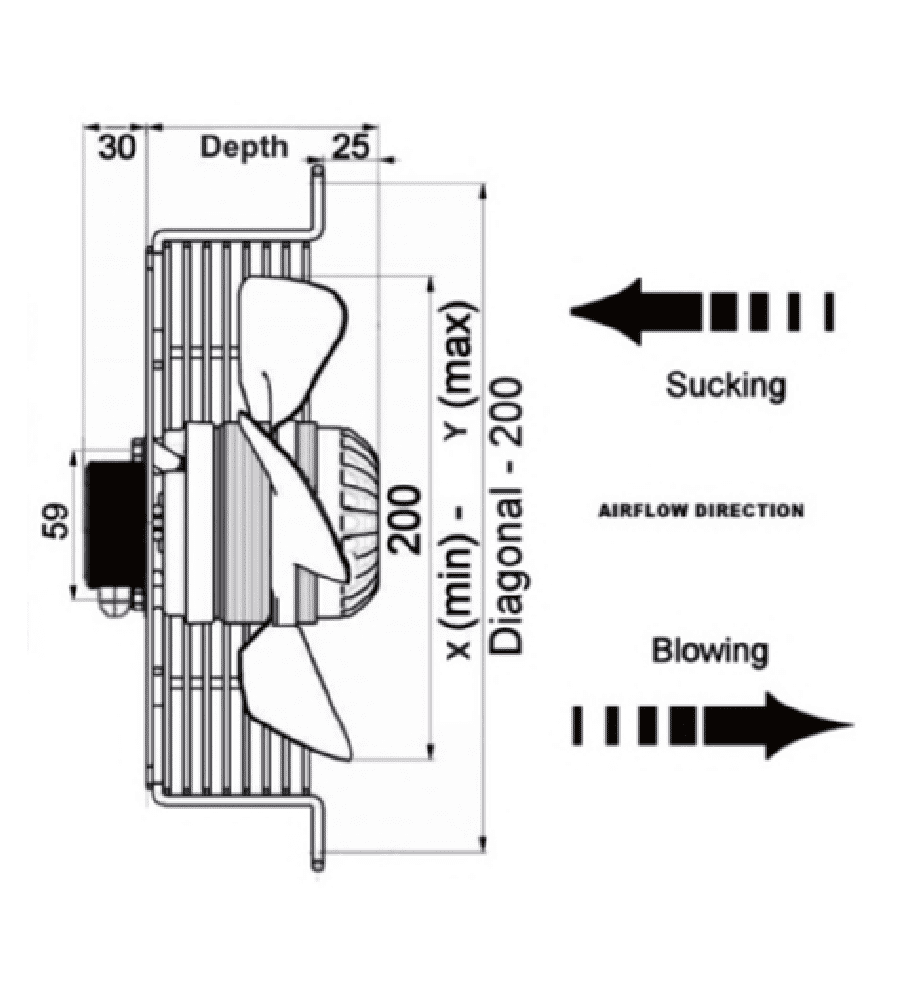

- Guard Depth: 45mm
- Minimum Guard Dimension (X): 231mm
- Maximum Guard Dimension (Y): 260mm
- Insulation Class: Class F
- Protection Rating: IP54
- Bearing Type: Sealed-for-Life Ball Bearings
- Temperature Range: -40°C to +60°C
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
