Introduction

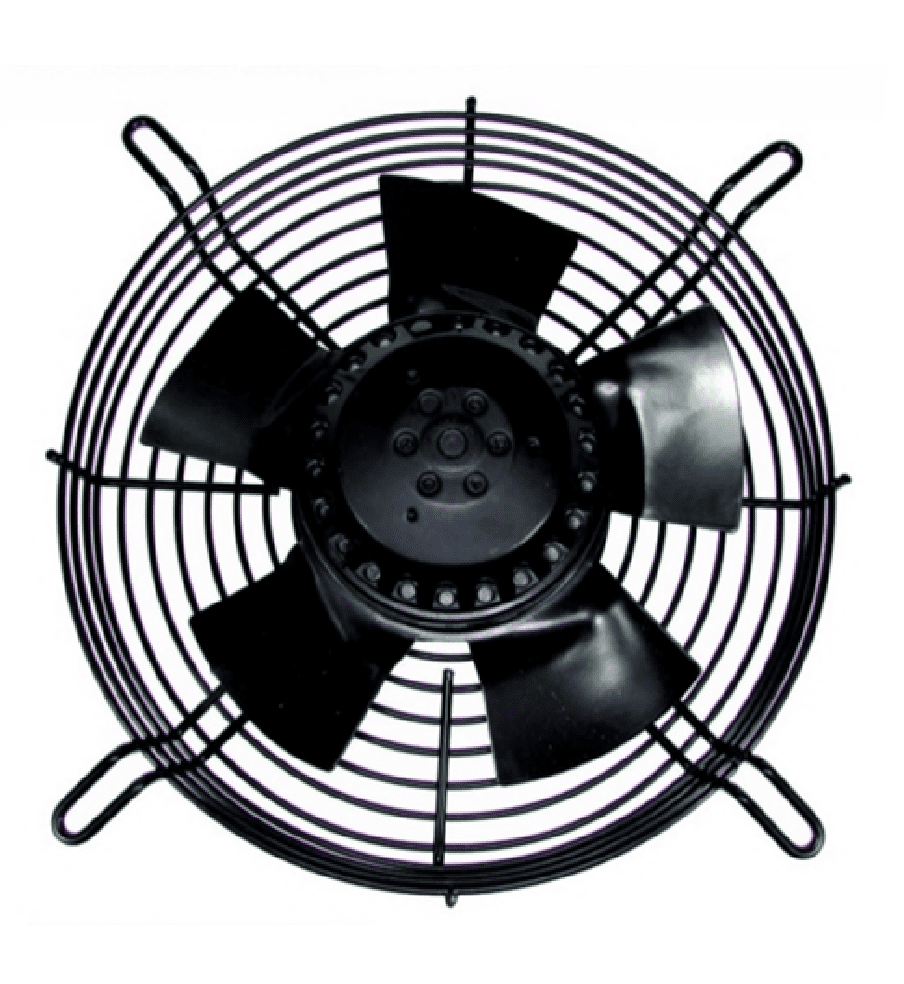

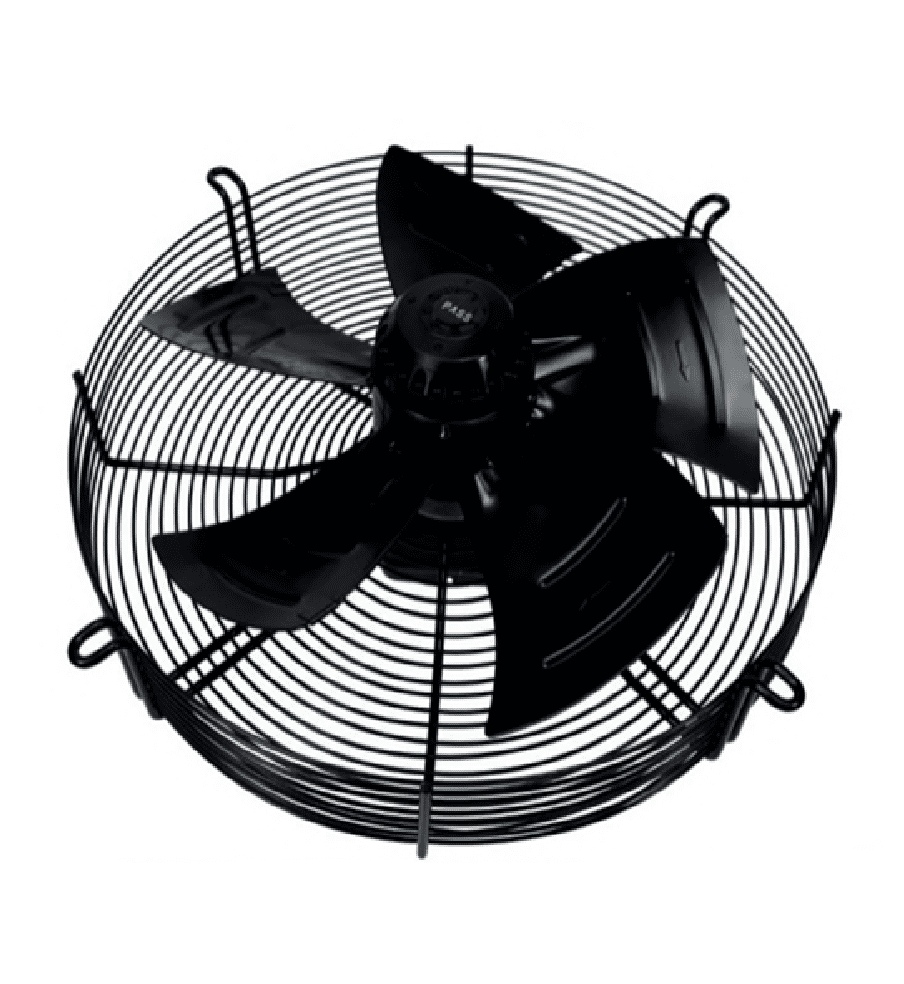

The PSP GMA1-200S2-1E-1 is an extended guard mounted axial fan designed for commercial, industrial and OEM ventilation applications where additional guard clearance is required. Featuring a PSC motor, extended basket guard construction and precision-balanced axial impeller, this fan delivers reliable airflow for cooling, extraction and general air movement duties. Suitable for both sucking and blowing airflow configurations, it is ideal for machinery cooling, electrical cabinets, refrigeration systems, condensers and HVAC applications.
Key Product Features
- Extended guard mounted axial fan
- 200mm fan diameter
- Single-phase 230V~50Hz/60Hz operation
- PSC motor design
- Suitable for sucking or blowing airflow
- Airflow capacity of 760 m³/h
- 2500 RPM motor speed
- 67W power input
- Class F insulation
- IP54 protection rating
- Totally enclosed motor construction
- Continuously rated operation
- Sealed-for-life ball bearings
- Operating temperature range from -40°C to +60°C
- Extended basket guard design
- Additional guard clearance for specialist applications
Technical Specifications
- Model: GMA1-200S2-1E-1
- Brand: PSP
- Fan Type: Extended Guard Mounted Axial Fan
- Voltage: 230V~50Hz/60Hz
- Phase: 1PH
- Motor Speed: 2500 RPM
- Input Power: 67W
- Air Volume: 760 m³/h
- Connection Type: Terminal Block
- Guard Depth: Extended Type

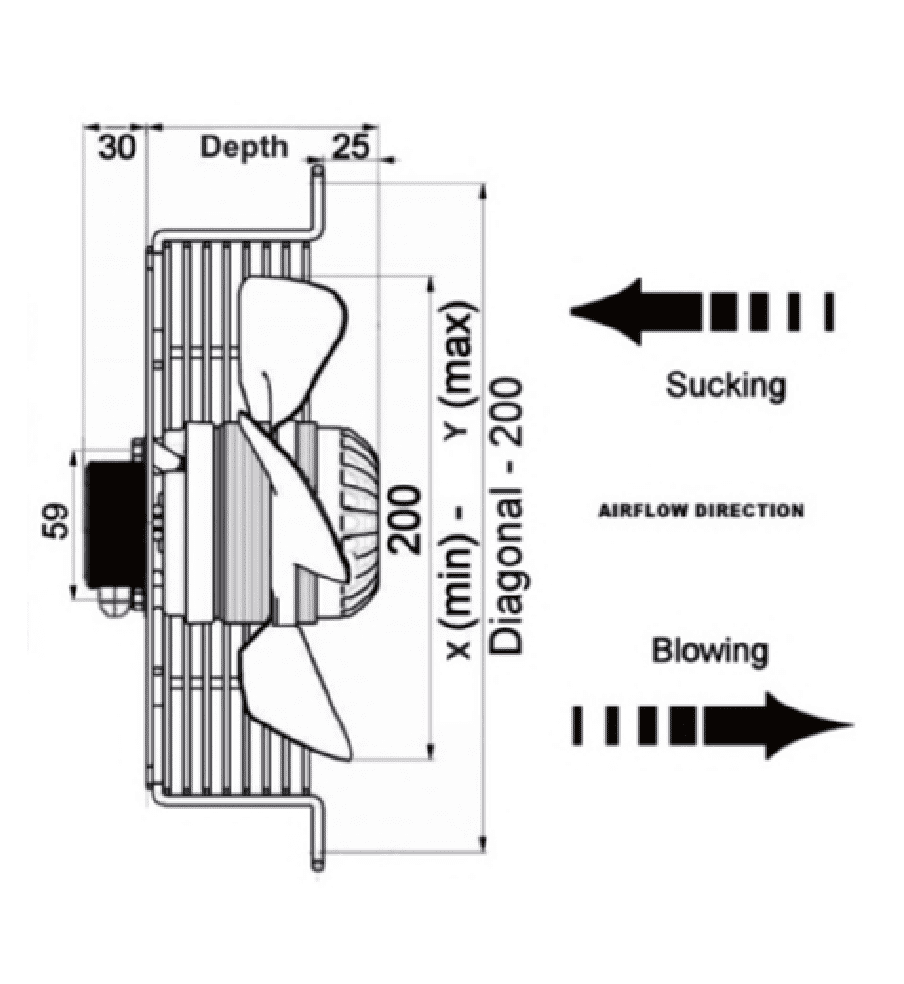

- Minimum Guard Dimension (X): 231mm
- Maximum Guard Dimension (Y): 260mm
- Insulation Class: Class F
- Protection Rating: IP54
- Bearing Type: Sealed-for-Life Ball Bearings
- Temperature Range: -40°C to +60°C
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
