Introduction

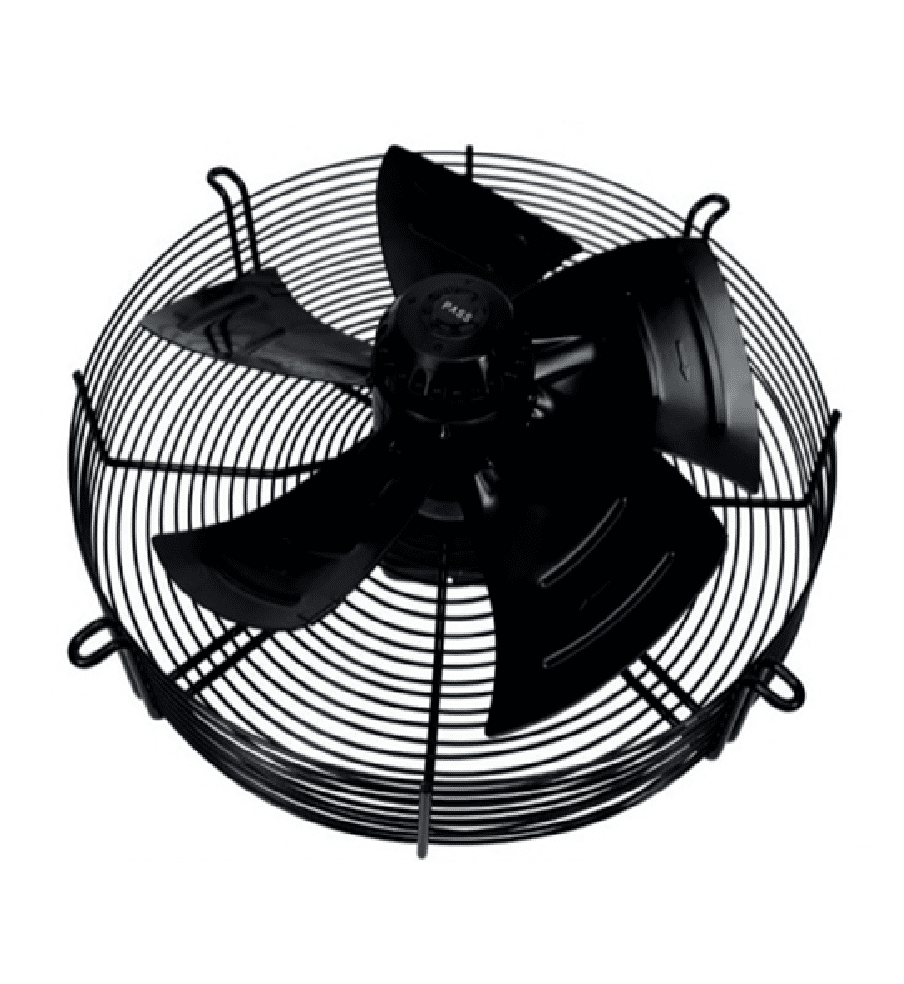

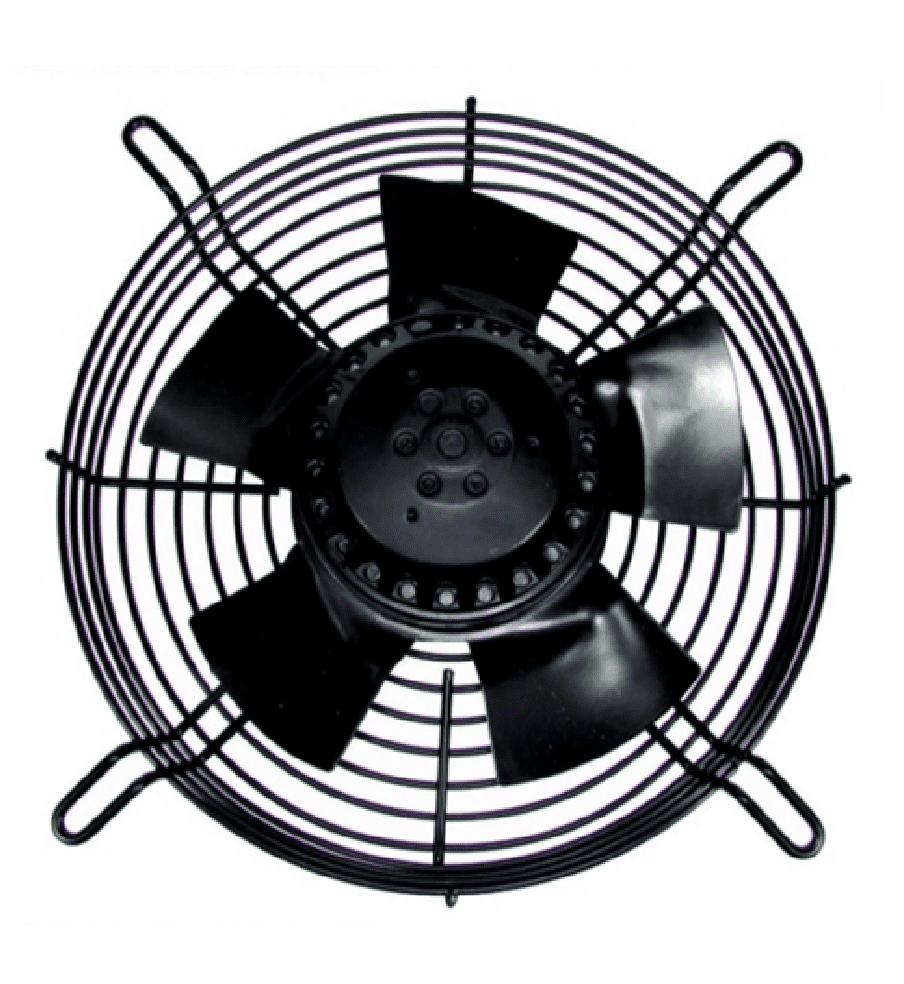

The PSP GMA1-200S2-1 is a compact guard mounted axial fan designed for commercial, industrial and OEM ventilation applications. Featuring a PSC motor, robust basket guard construction and high-performance axial impeller, this fan delivers reliable airflow for cooling, extraction and general air movement duties. Suitable for both sucking and blowing airflow configurations, it is ideal for machinery cooling, electrical enclosures, refrigeration equipment, HVAC systems and industrial ventilation applications.
Key Product Features
- Guard mounted axial fan
- 200mm fan diameter
- Single-phase 230V~50Hz/60Hz operation
- PSC motor design
- Suitable for sucking or blowing airflow
- Airflow capacity of 760 m³/h
- 2500 RPM motor speed
- 67W power input
- Class F insulation
- IP54 protection rating
- Totally enclosed motor construction
- Continuously rated operation
- Sealed-for-life ball bearings
- Operating temperature range from -40°C to +60°C
- Standard basket guard design with 45mm depth
Technical Specifications
- Model: GMA1-200S2-1
- Brand: PSP
- Fan Type: Guard Mounted Axial Fan
- Voltage: 230V~50Hz/60Hz
- Phase: 1PH
- Motor Speed: 2500 RPM
- Input Power: 67W
- Air Volume: 760 m³/h
- Connection Type: Terminal Block

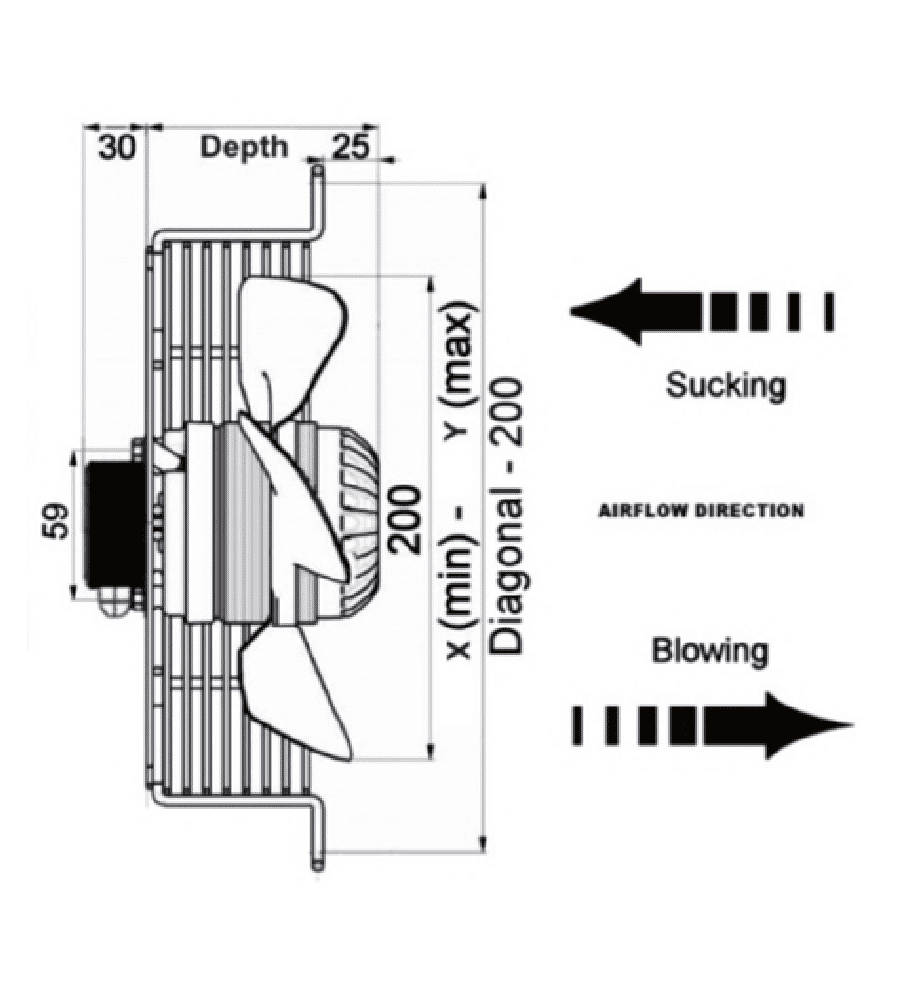

- Guard Depth: 45mm
- Minimum Guard Dimension (X): 231mm
- Maximum Guard Dimension (Y): 260mm
- Insulation Class: Class F
- Protection Rating: IP54
- Bearing Type: Sealed-for-Life Ball Bearings
- Temperature Range: -40°C to +60°C
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
