Introduction
The PSP GMA1-200S-EC-2E-1 is a high-efficiency EC guard mounted axial fan designed for commercial refrigeration, HVAC and industrial ventilation applications where energy-efficient airflow performance is essential. Operating on a single-phase 230V~50Hz/60Hz supply, this model features advanced ECM motor technology with variable speed capability, allowing improved airflow control and lower energy consumption. Built with sealed-for-life ball bearings and a totally enclosed motor design, the fan is engineered for reliable continuous-duty operation in demanding environments. This version is configured for sucking airflow and features an extended guard P.C.D. arrangement for specialist mounting applications.
Key Product Features
Single-phase 230V~50Hz/60Hz EC motor
High-efficiency ECM motor technology
Variable speed controllable operation

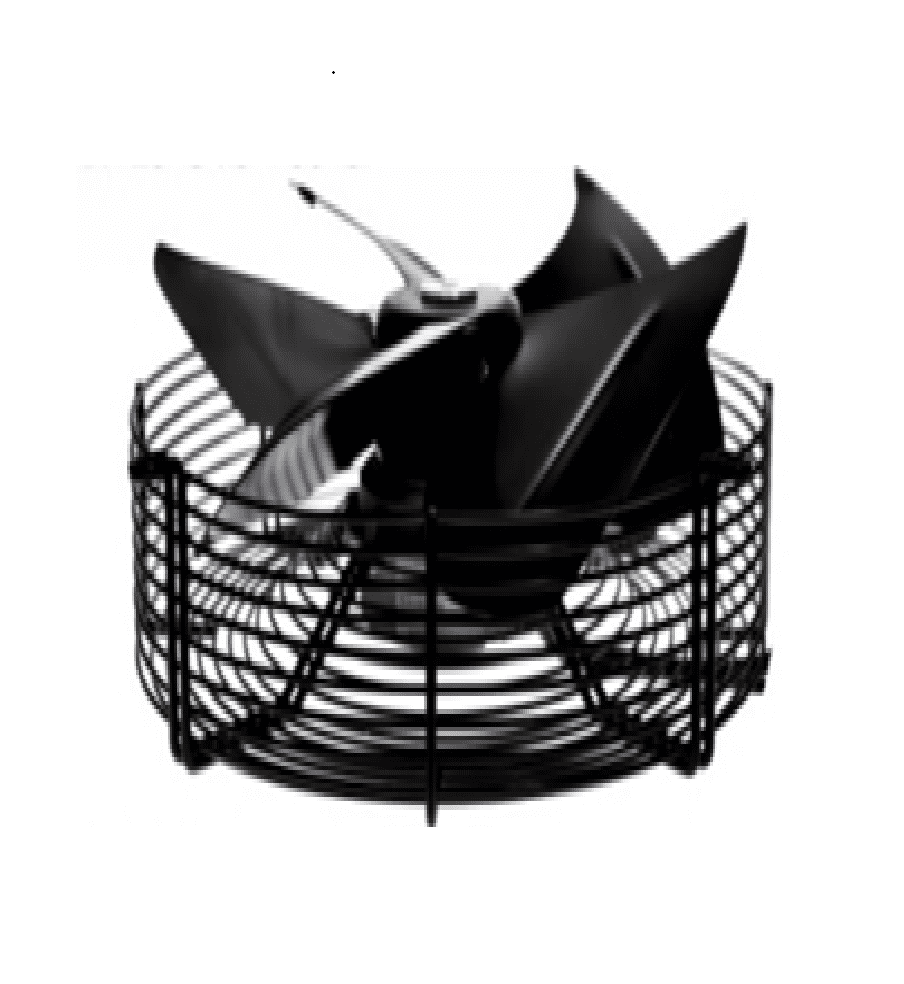

Guard mounted axial fan design
Sucking airflow configuration for extraction applications

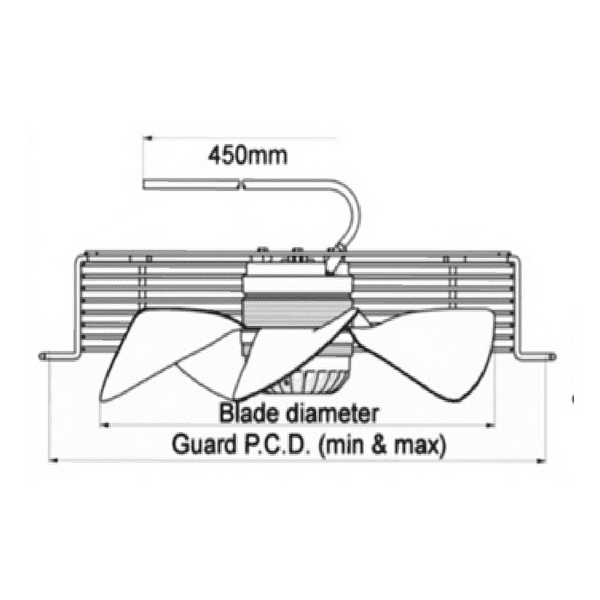

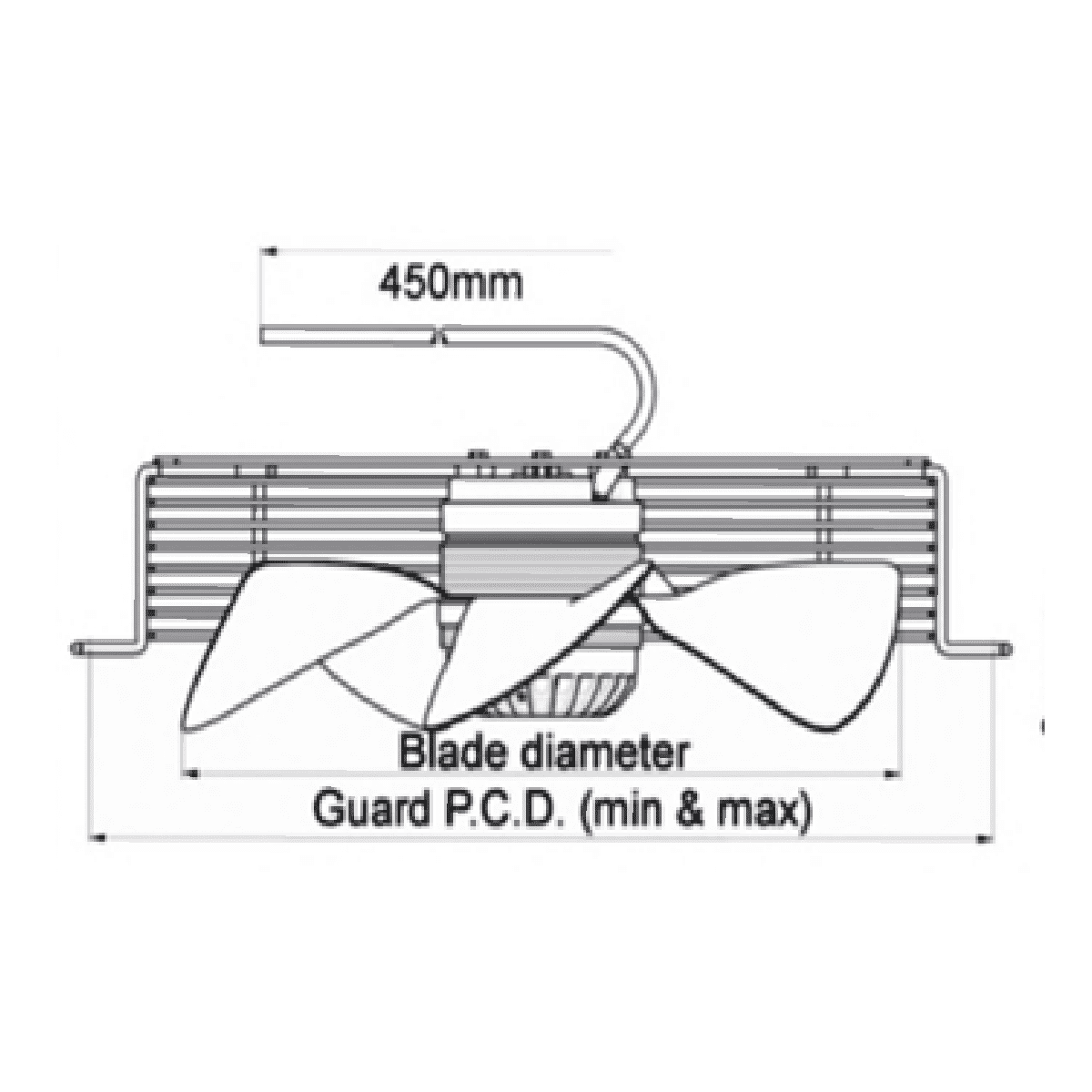

Extended guard P.C.D. mounting arrangement
200mm blade diameter
Air volume: 875m³/h
Maximum motor speed: 2600 RPM
80W input power
Totally enclosed motor construction
IP44 motor protection rating
Class F insulation
Sealed-for-life ball bearings
Dual-rated continuous-duty operation
Operating temperature range from –25°C to +60°C
Suitable for refrigeration, condensers, HVAC systems and OEM ventilation equipment
]
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
