Introduction

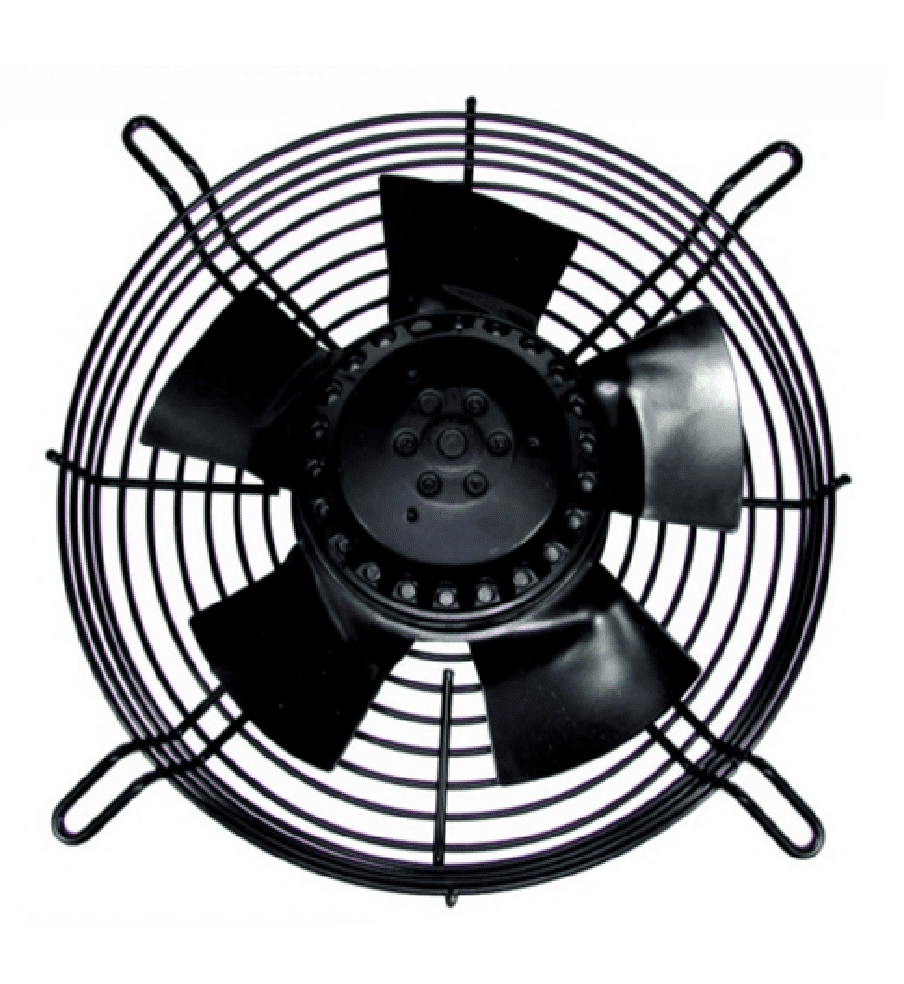

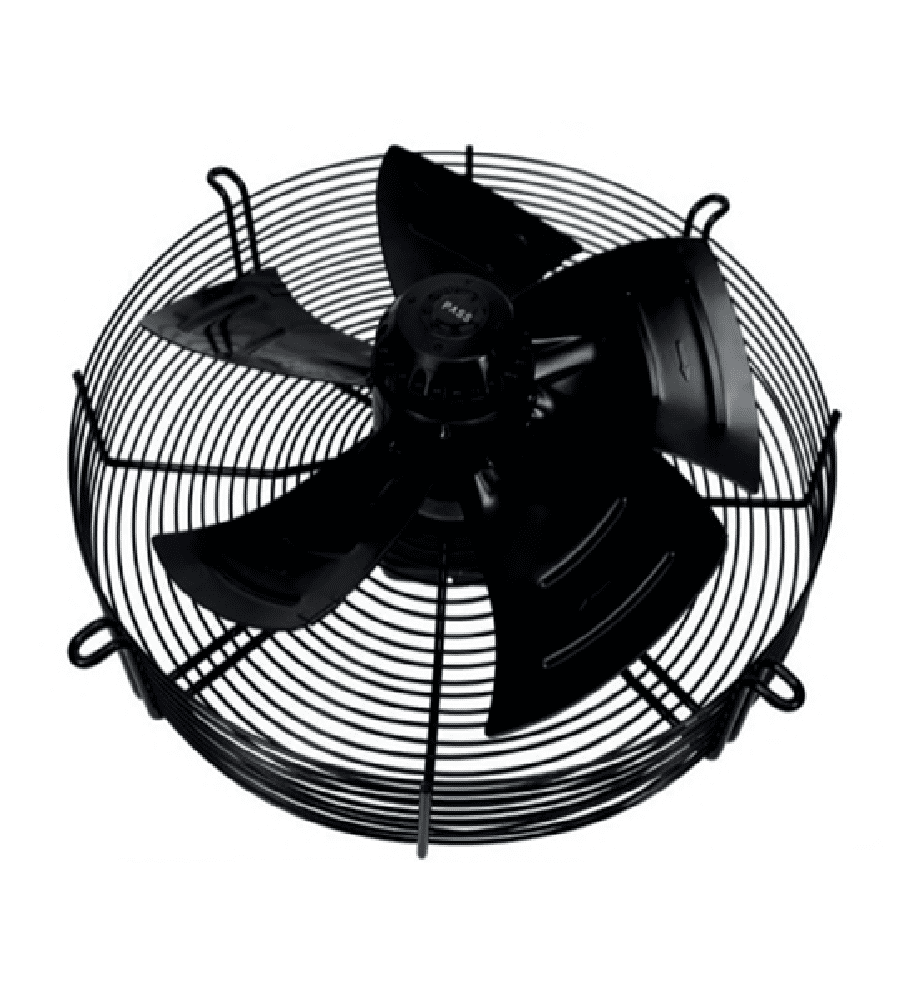

The PSP GMA1-200S-2E-1 is a high-performance extended guard mounted axial fan designed for commercial, industrial and OEM ventilation applications. Featuring a PSC motor, extended basket guard construction and precision-balanced axial impeller, this fan delivers powerful airflow for cooling, extraction and general air movement duties. The extended guard design provides additional safety clearance, making it suitable for machinery cooling, electrical cabinets, refrigeration equipment, condensers and HVAC systems.

Key Product Features

• Extended guard mounted axial fan
• 200mm fan diameter
• Single-phase 230V~50Hz/60Hz operation
• PSC motor design
• Suitable for sucking or blowing airflow
• Airflow capacity of 910 m³/h
• 2500 RPM motor speed
• 105W power input
• Class F insulation
• IP54 protection rating
• Totally enclosed motor construction
• Continuously rated operation
• Sealed-for-life ball bearings
• Operating temperature range from -40°C to +60°C
• Extended basket guard design for additional clearance

Technical Specifications

• Model: GMA1-200S-2E-1
• Brand: PSP
• Fan Type: Extended Guard Mounted Axial Fan
• Voltage: 230V~50Hz/60Hz
• Phase: 1PH
• Motor Speed: 2500 RPM
• Input Power: 105W
• Air Volume: 910 m³/h
• Connection Type: Terminal Block

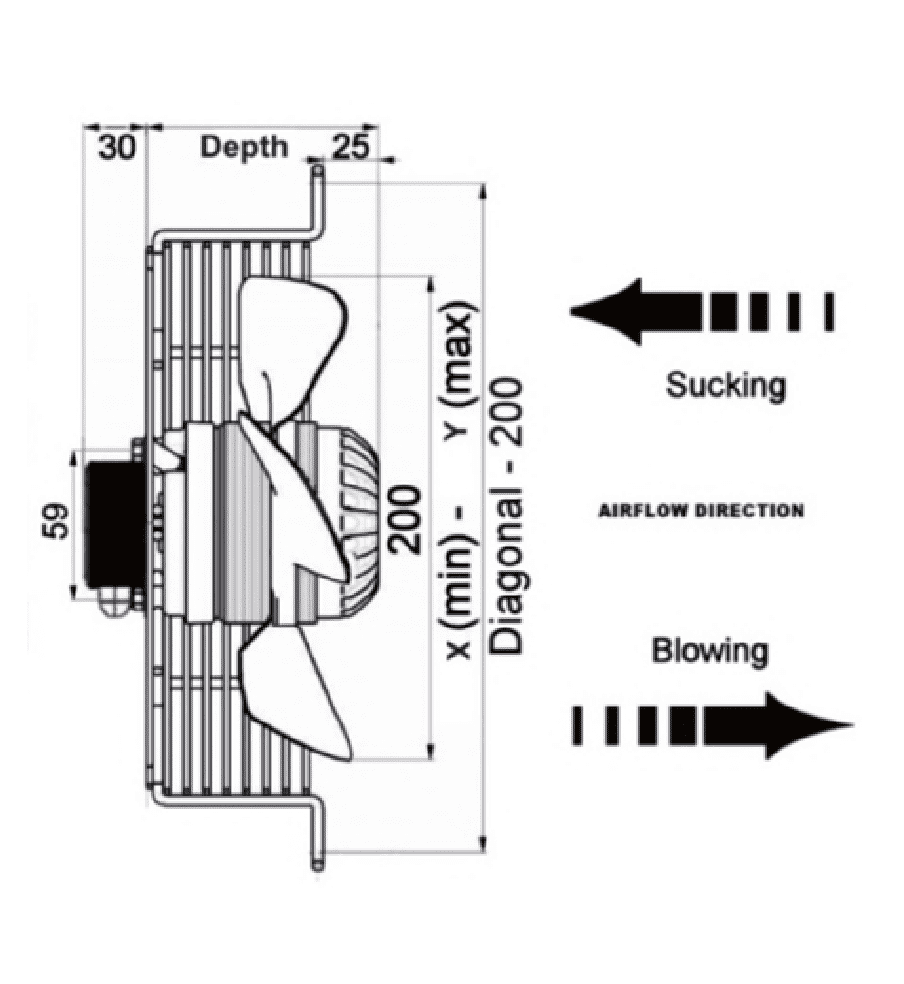

• Guard Depth: Extended Type
• Minimum Guard Dimension (X): 231mm
• Maximum Guard Dimension (Y): 260mm
• Insulation Class: Class F
• Protection Rating: IP54
• Bearing Type: Sealed-for-Life Ball Bearings
• Temperature Range: -40°C to +60°C

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
