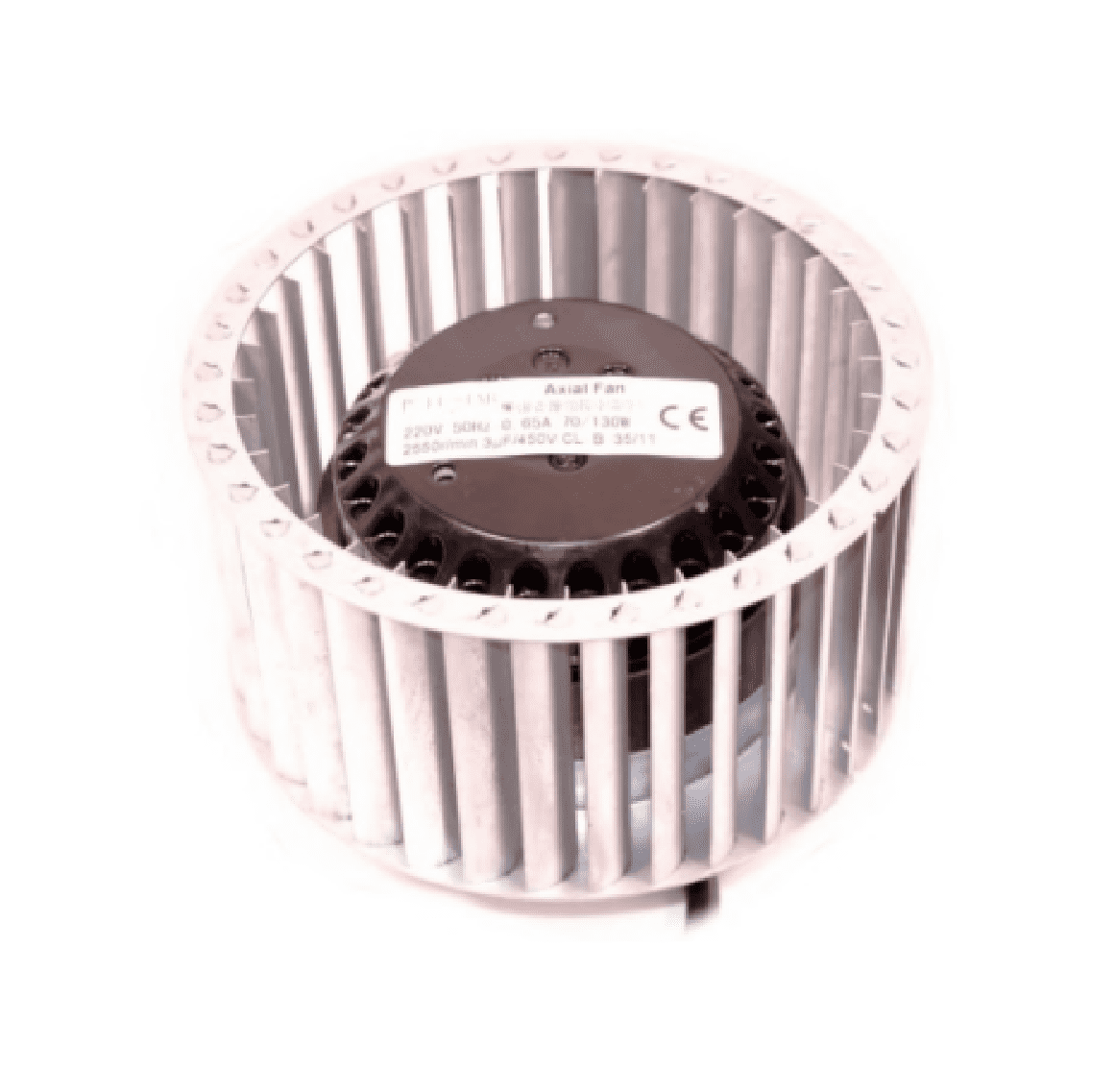

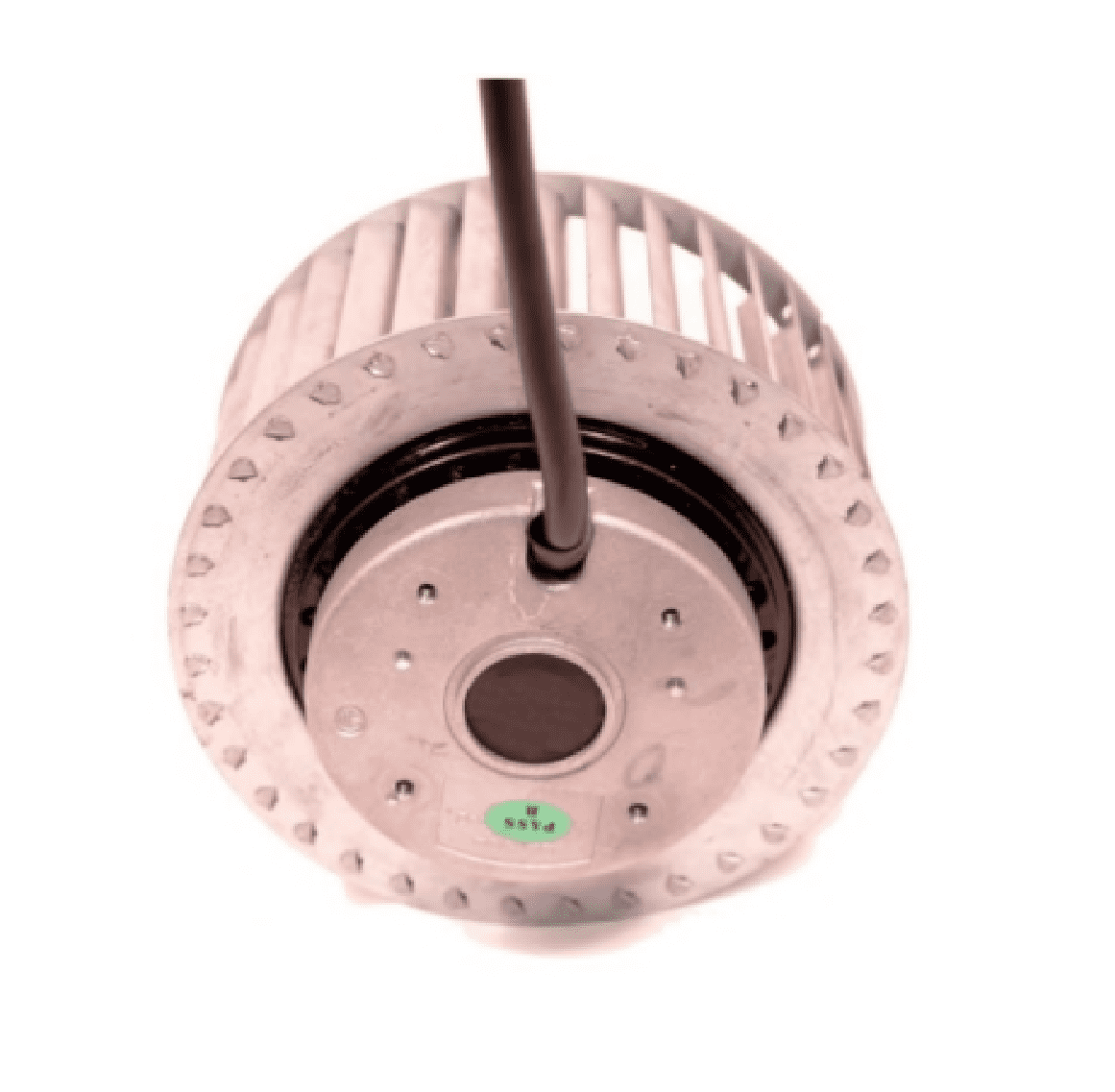

The PSP FCI-4-315/125-3PH Forward Curved Fan is a high-capacity centrifugal fan designed for demanding HVAC systems, air handling units and industrial ventilation applications. Featuring a forward curved impeller and a powerful three-phase motor, this unit delivers strong, consistent airflow performance under continuous operation. Its robust construction and compact form make it ideal for integration into ducted systems and OEM equipment where reliability is critical.
Key Product Features
315mm forward curved centrifugal fan
380-415V~50Hz/60Hz three phase motor
Forward curved impeller for efficient airflow
Single speed operation
Totally enclosed motor design
Sealed for life ball bearings
Class B insulation with IP54 protection
Continuous duty rating
Heavy-duty construction for industrial environments
Designed to blow air through ducted systems
Technical Specification
Model: FCI-4-315/125-3PH
Brand: PSP
Fan Type: Forward Curved Centrifugal Fan

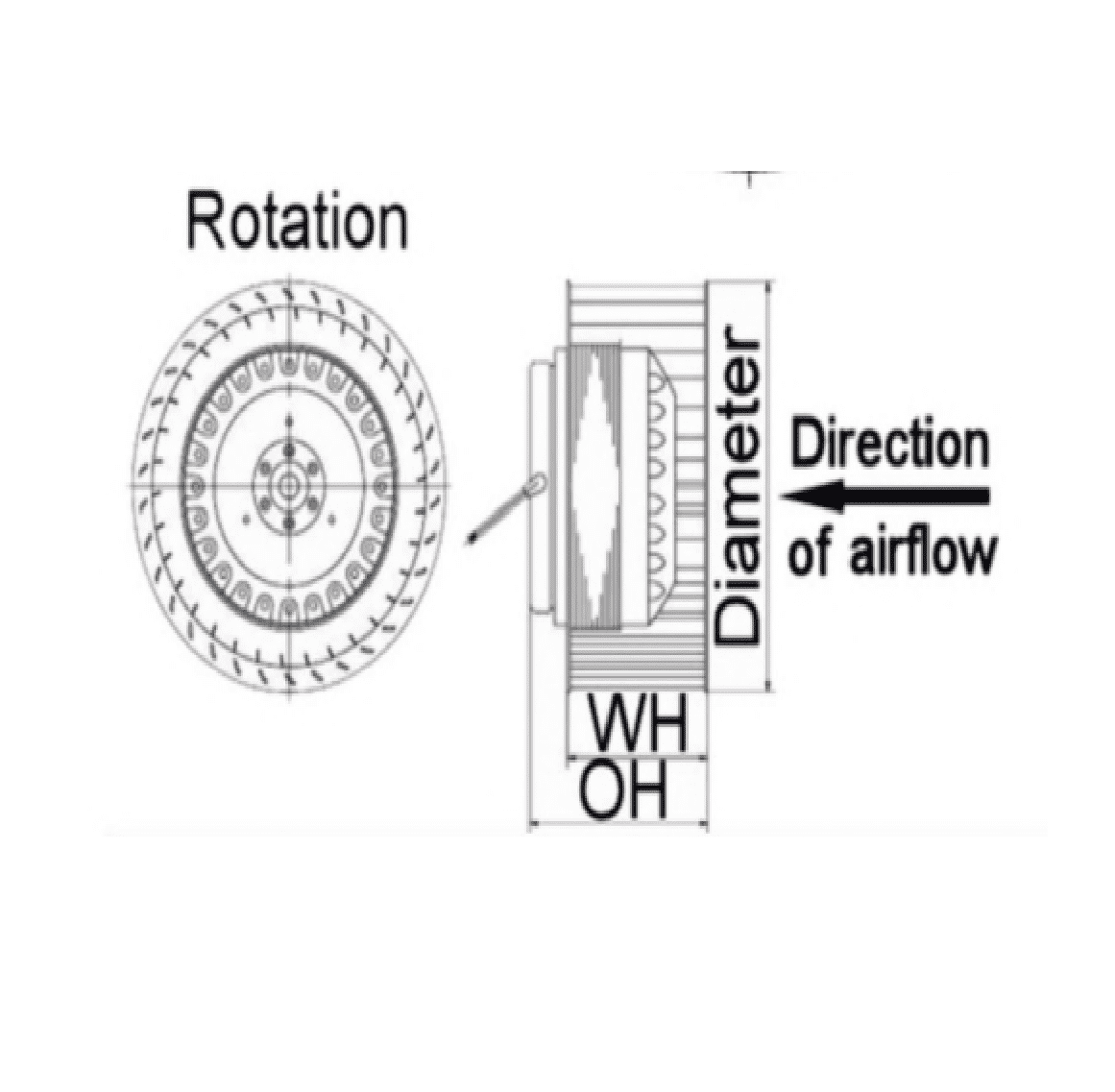

Wheel Diameter: 315mm
Wheel Height: 125mm
Voltage: 380-415V~50Hz/60Hz
Phase: 3PH
Motor Type: PSC
Speeds: Single
Motor RPM: 1370
Motor Protection: IP54
Insulation Class: Class B
Bearing Type: Sealed Ball Bearings
Temperature Range: -30°C to +60°C
Rotation: CW
Applications
Air handling units
HVAC systems
Industrial ventilation systems
Commercial ventilation
OEM equipment
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
