Introduction

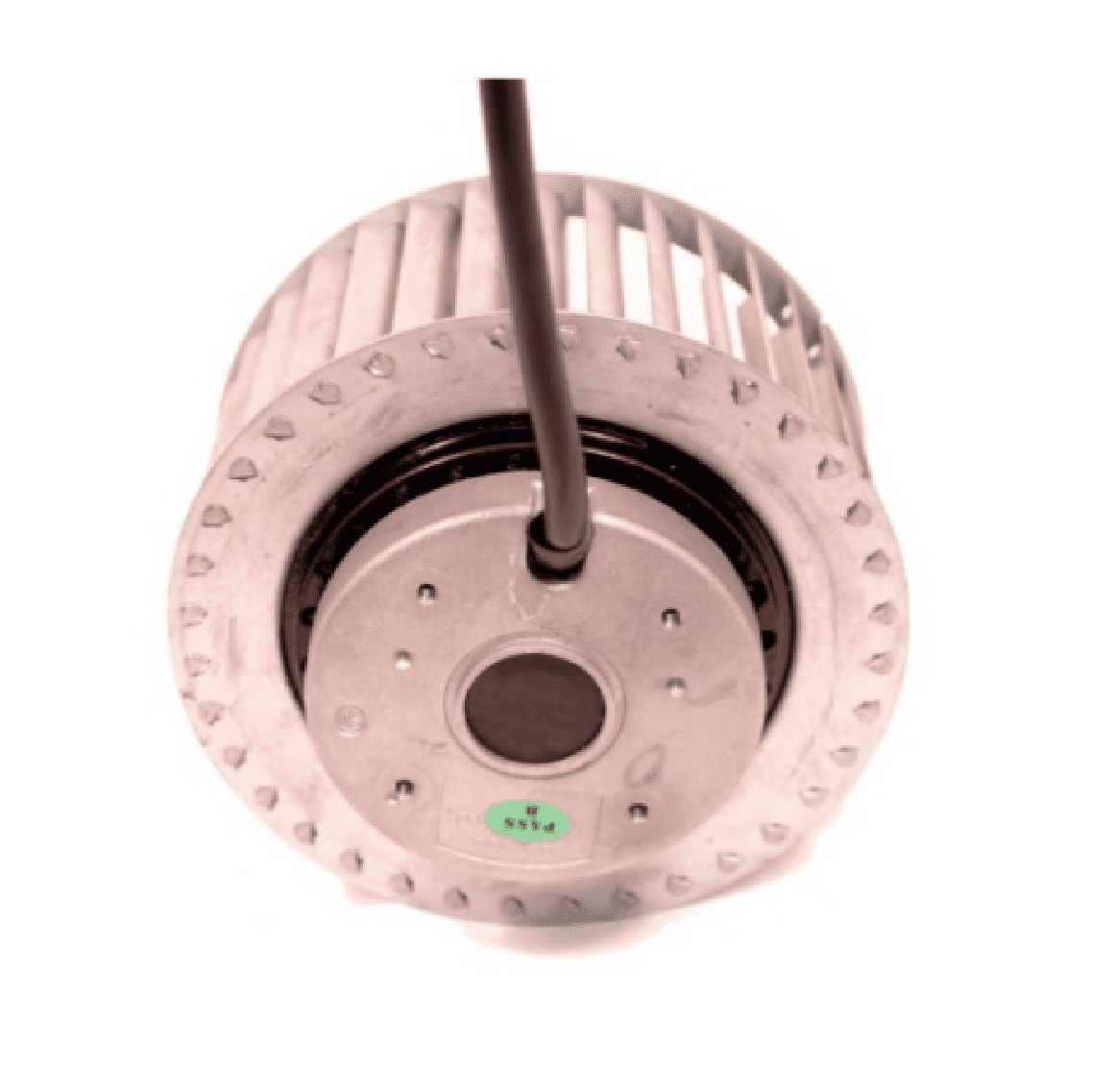

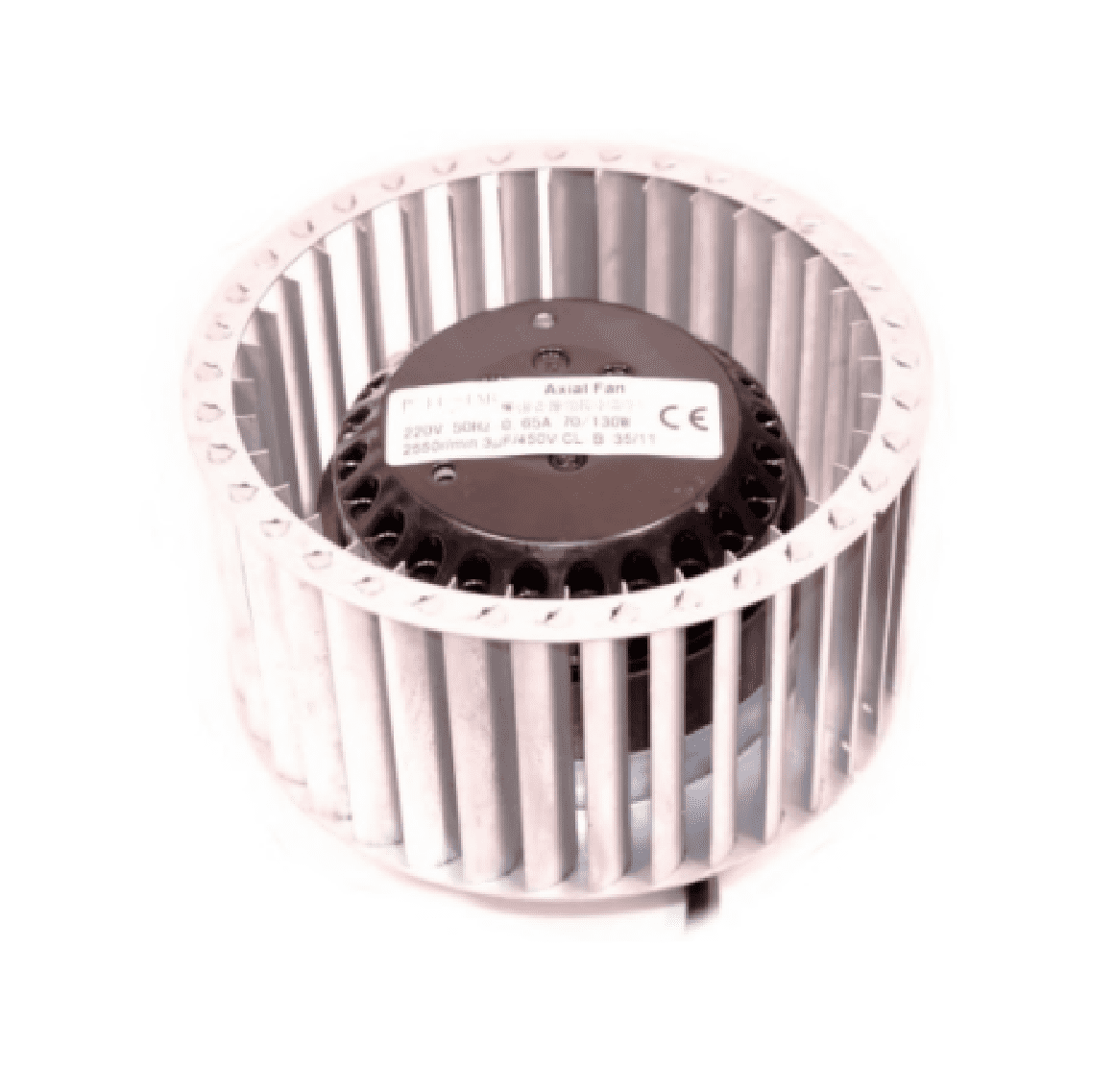

The PSP FCI-4-280/112-3PH Forward Curved Fan is a high-capacity centrifugal fan engineered for demanding HVAC systems, air handling units and industrial ventilation applications. Featuring a forward curved impeller and a powerful three-phase motor, this unit delivers strong and consistent airflow performance under continuous operation. Its robust construction and compact footprint make it ideal for integration into ducted systems and OEM equipment where reliability is essential.
Key Product Features
280mm forward curved centrifugal fan
380-415V~50Hz/60Hz three phase motor
Forward curved impeller for efficient airflow performance
Single speed operation
Totally enclosed motor design
Sealed for life ball bearings
Class B insulation with IP54 protection
Continuous duty rating
Compact design for AHU and OEM integration
Designed to blow air through ducted systems
Technical Specification
Model: FCI-4-280/112-3PH
Brand: PSP
Fan Type: Forward Curved Centrifugal Fan
Wheel Diameter: 280mm
Wheel Height: 112mm
Voltage: 380-415V~50Hz/60Hz
Phase: 3PH
Motor Type: PSC
Speeds: Single
Motor RPM: 1330
Motor Protection: IP54
Insulation Class: Class B
Bearing Type: Sealed Ball Bearings
Temperature Range: -30°C to +60°C

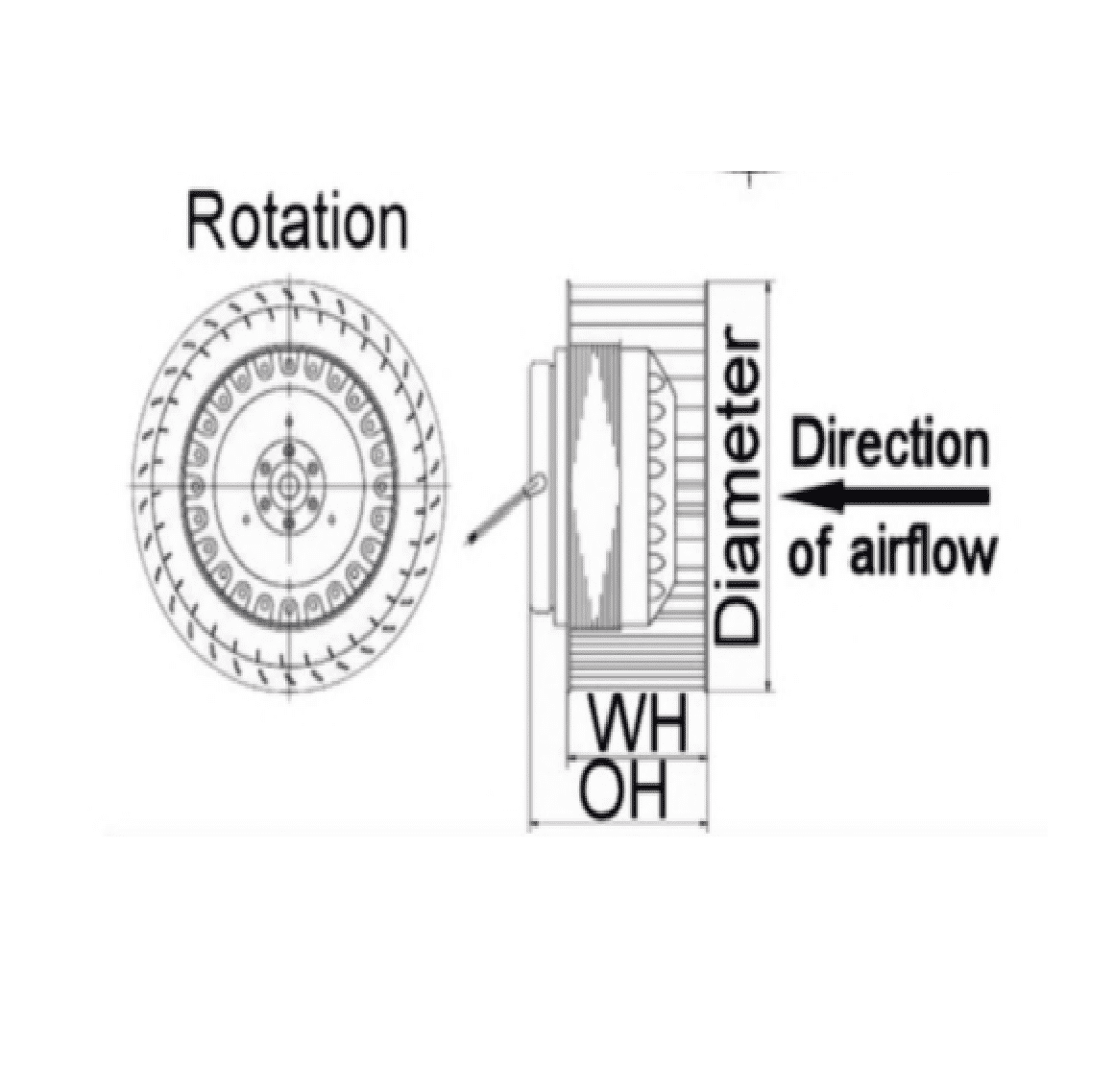

Rotation: CW
Applications
Air handling units
HVAC systems
Commercial and industrial ventilation
Fan coil units
OEM equipment
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
