Introduction

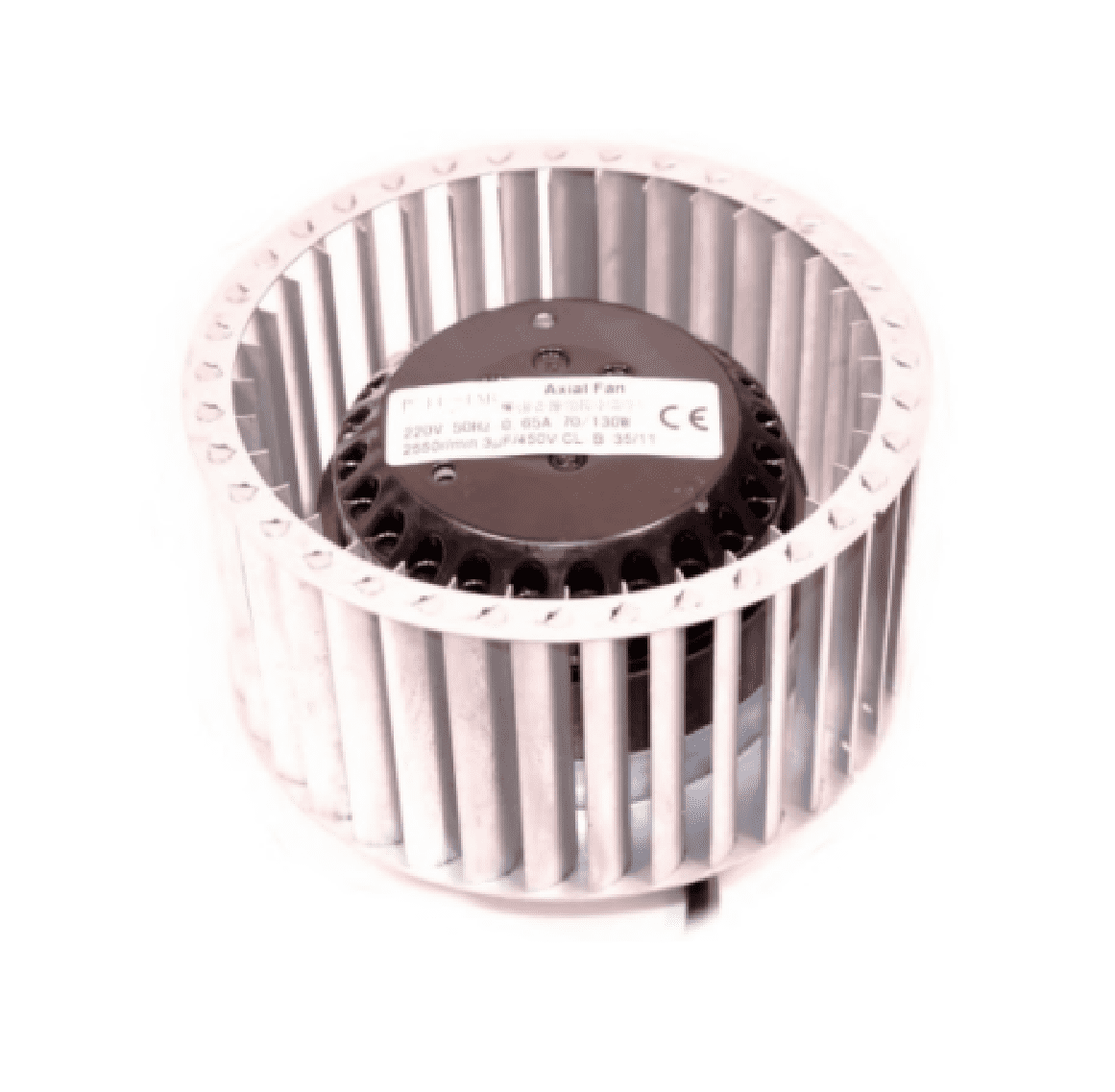

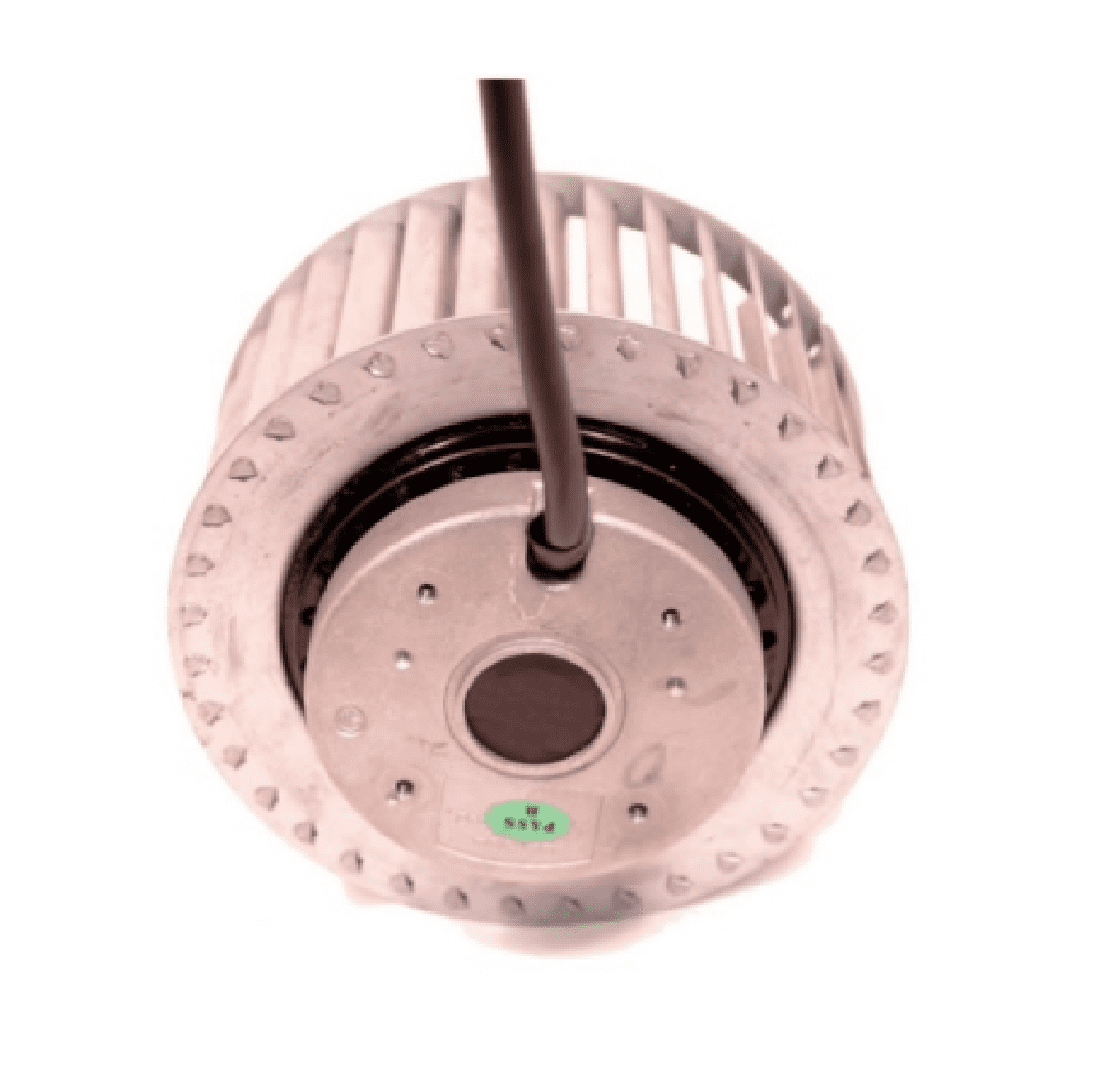

The PSP FCI-2-180/73-1 is a forward curved centrifugal fan designed for smooth, dependable airflow in commercial and light industrial ventilation applications. Operating from a single-phase 230V~50Hz/60Hz supply, this model features a forward curved impeller that delivers consistent air movement in compact installations. A totally enclosed IP54 motor with sealed-for-life ball bearings ensures reliable, low-maintenance operation and long service life.
Key Product Features
Single-phase 230V~50Hz/60Hz PSC motor
Forward curved centrifugal impeller for smooth airflow
Totally enclosed motor construction
IP54-rated motor protection
Class B insulation for dependable operation
Sealed-for-life ball bearings for long service life
Continuously rated air-over-motor design
Operating temperature range from –30°C to +60°C
Suitable for air handling units, HVAC equipment, compact ventilation systems and OEM applications
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
