Introduction
The PSP CA3-550S6-3 is a low-noise three-phase case mounted axial fan designed for commercial, industrial and HVAC ventilation applications where efficient airflow and quieter operation are required. Featuring a high-efficiency industrial motor, heavy-duty steel casing and precision-balanced axial impeller, this fan delivers reliable supply and extract ventilation performance. The six-pole motor configuration reduces operating noise whilst maintaining dependable airflow, making it ideal for warehouses, factories, agricultural buildings, workshops and plant room installations.
Key Product Features
- Case mounted axial fan design
- Three-phase 380-415V~50Hz/60Hz operation
- High-efficiency industrial motor
- 550mm blade diameter
- 900 RPM motor speed
- Low-noise operation
- Class F motor insulation
- IP54 motor protection
- Totally enclosed motor construction
- Sealed-for-life ball bearings
- Operating temperature range from -40°C to +60°C
- Suitable for supply and extract ventilation
- Continuous-duty industrial operation
- Robust steel casing construction
Technical Specifications
- Model: CA3-550S6-3
- Brand: PSP
- Fan Type: Case Mounted Axial Fan
- Voltage: 380-415V~50Hz/60Hz
- Phase: 3PH
- Blade Diameter: 550mm
- Motor Speed: 900 RPM
- Casing Depth: 180mm
- Inner Diameter: 555mm
- Flange Diameter: 600mm

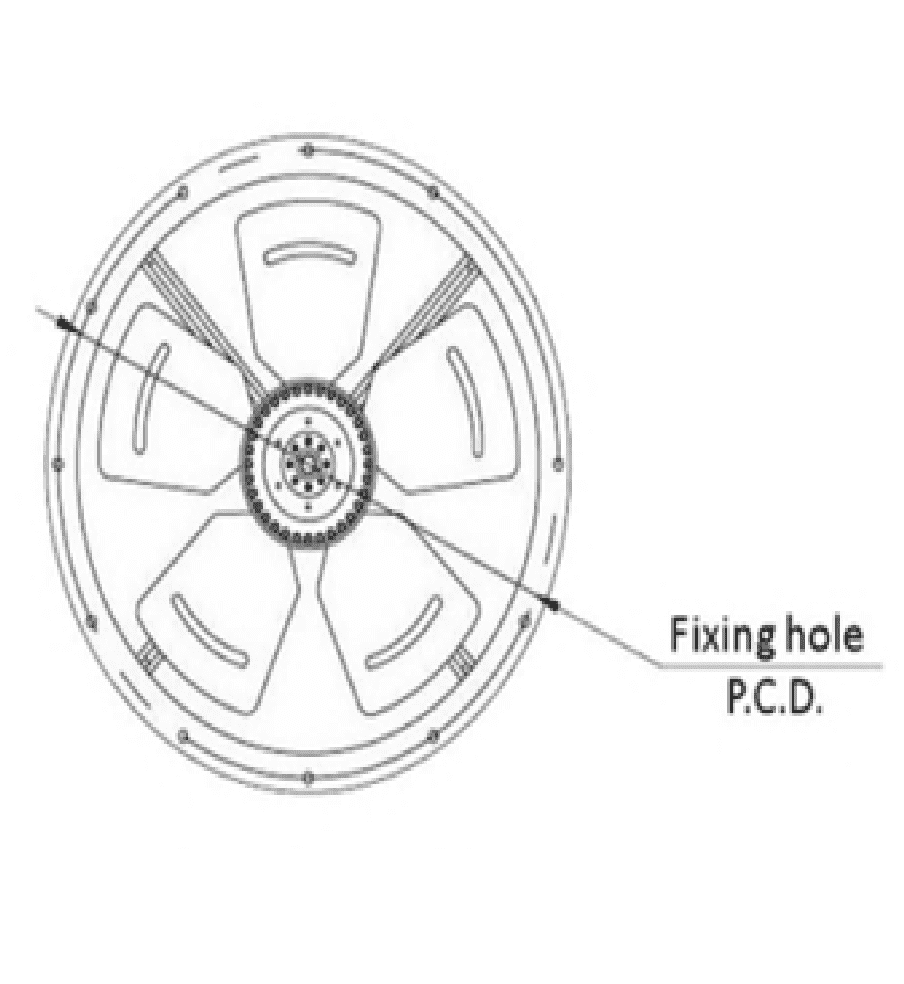

- Fixing Hole PCD: 572mm
- Insulation Class: Class F
- Protection Rating: IP54
- Bearing Type: Sealed-for-Life Ball Bearings
- Temperature Range: -40°C to +60°C
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
