Introduction
The PSP CA1-300S2-2 is a high-performance case mounted axial fan designed for demanding commercial, industrial and HVAC ventilation applications. Featuring a powerful PSC motor, robust steel casing and efficient axial impeller, this fan provides enhanced airflow performance for both supply and extract air systems. Engineered for continuous-duty operation, it is ideal for warehouses, factories, workshops, plant rooms and industrial ventilation installations where higher airflow capacity is required.
Key Product Features
- Case mounted axial fan design
- Single-phase 230V~50Hz/60Hz operation
- High-efficiency PSC motor
- 300mm blade diameter
- 2700 RPM motor speed
- Enhanced airflow performance
- Class F motor insulation
- IP54 motor protection
- Totally enclosed motor construction
- Sealed-for-life ball bearings
- Operating temperature range from -40°C to +60°C
- Suitable for supply and extract ventilation
- Continuous-duty industrial operation
Technical Specifications
- Model: CA1-300S2-2
- Brand: PSP
- Fan Type: Case Mounted Axial Fan
- Voltage: 230V~50Hz/60Hz
- Phase: 1PH
- Blade Diameter: 300mm
- Motor Speed: 2700 RPM

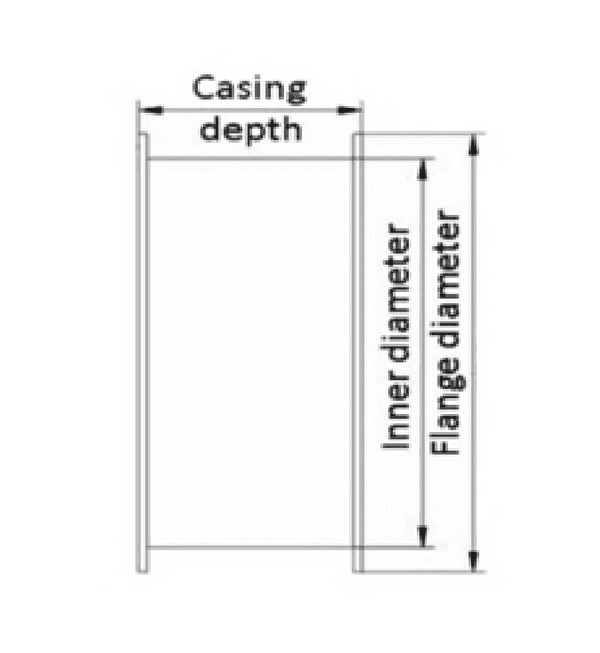

- Casing Depth: 180mm
- Inner Diameter: 305mm
- Flange Diameter: 350mm
- Fixing Hole PCD: 322mm
- Insulation Class: Class F
- Protection Rating: IP54
- Bearing Type: Sealed-for-Life Ball Bearings
- Temperature Range: -40°C to +60°C
Disclaimer
Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
