Introduction

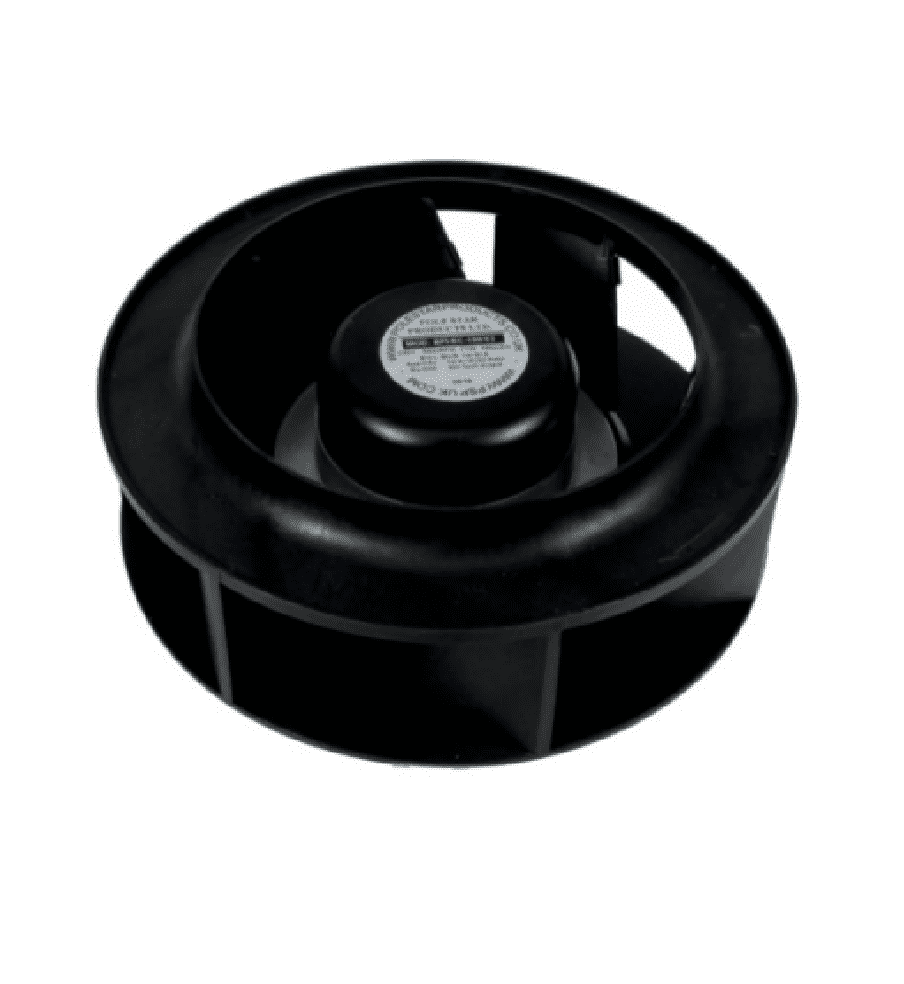

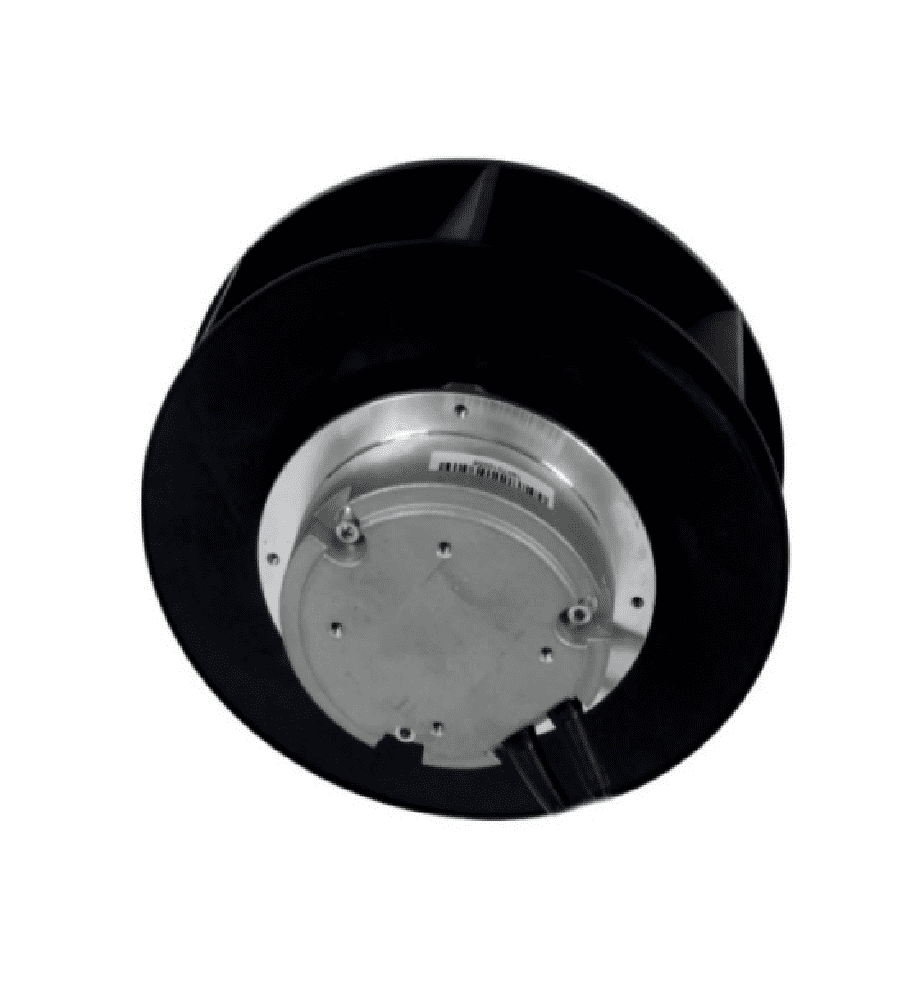

The PSP BPI-EC-560/220 is a heavy-duty backward curved centrifugal fan designed for large commercial HVAC systems, air handling units, heat recovery equipment and OEM ventilation applications. Featuring advanced EC motor technology and a precision-engineered backward curved impeller, this model delivers outstanding airflow performance with excellent energy efficiency. Its robust construction and continuous-duty capability make it ideal for demanding installations requiring high airflow volumes, strong static pressure characteristics and reliable long-term operation.

Key Product Features

• Single-phase 230V~50Hz/60Hz EC motor
• Backward curved centrifugal impeller
• Variable speed controllable operation
• 560mm wheel diameter
• 220mm wheel height
• Airflow up to 20,500m³/h
• 7500W input power
• Maximum speed 2000 RPM
• Totally enclosed motor construction
• IP54 motor protection
• Class B insulation
• Sealed-for-life ball bearings
• Continuous-duty operation
• Suitable for AHUs, heat recovery units and OEM ventilation equipment

Technical Specifications

• Model: BPI-EC-560/220
• Brand: PSP
• Fan Type: Backward Curved Centrifugal Fan
• Voltage: 230V~50Hz/60Hz
• Phase: 1PH
• Input Power: 7500W
• Maximum RPM: 2000
• Airflow: 20,500m³/h

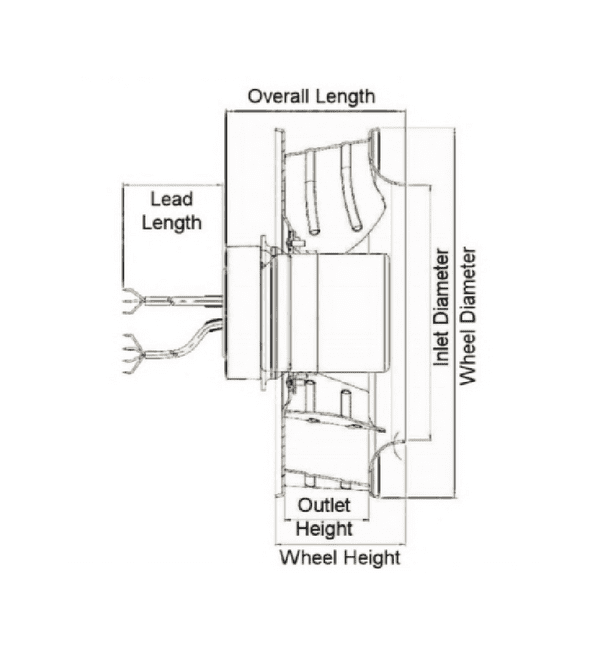

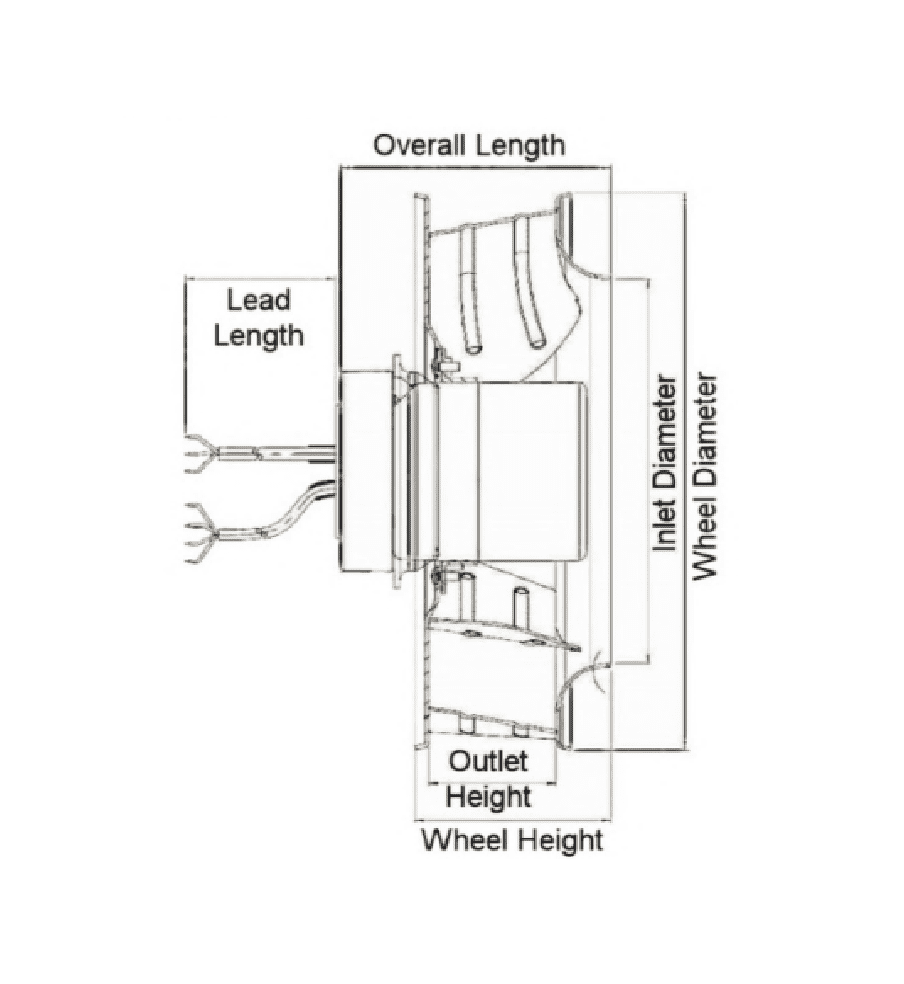

• Overall Height: 320mm
• Outlet Height: 190mm
• Wheel Height: 220mm
• Wheel Diameter: 560mm
• Fixing PCD: 58 / 79 / 90 / 125

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
