Introduction

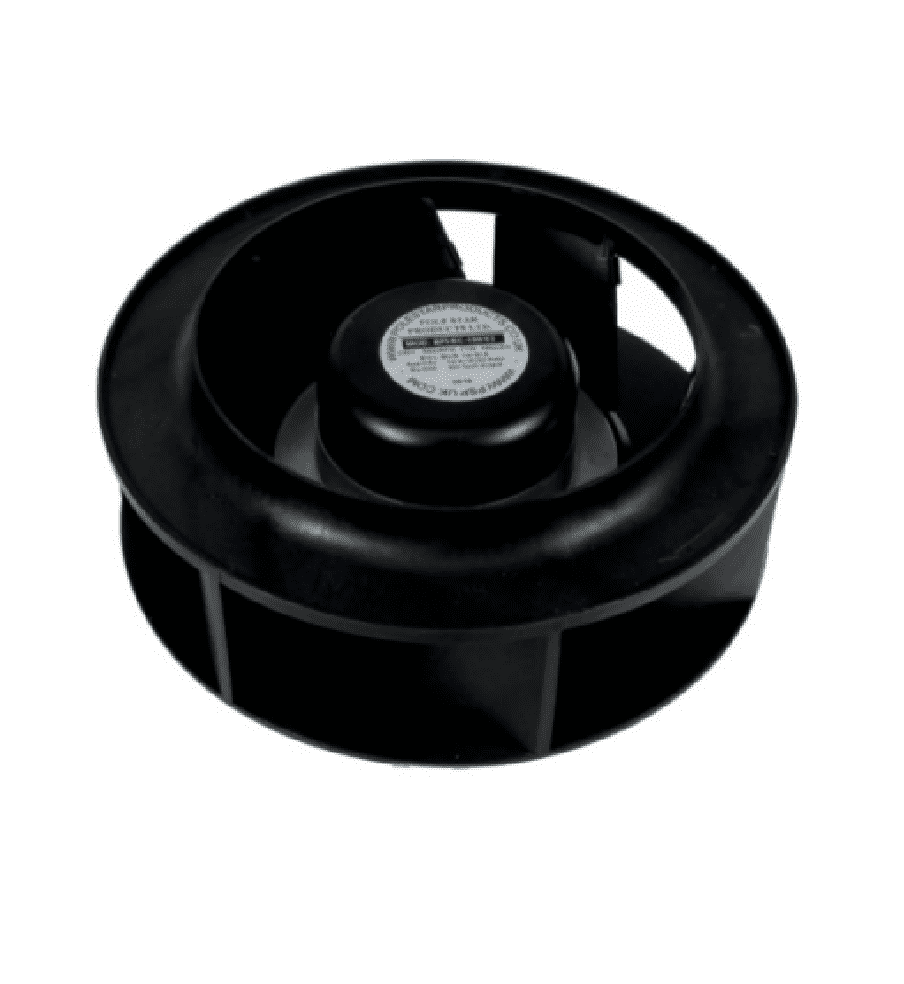

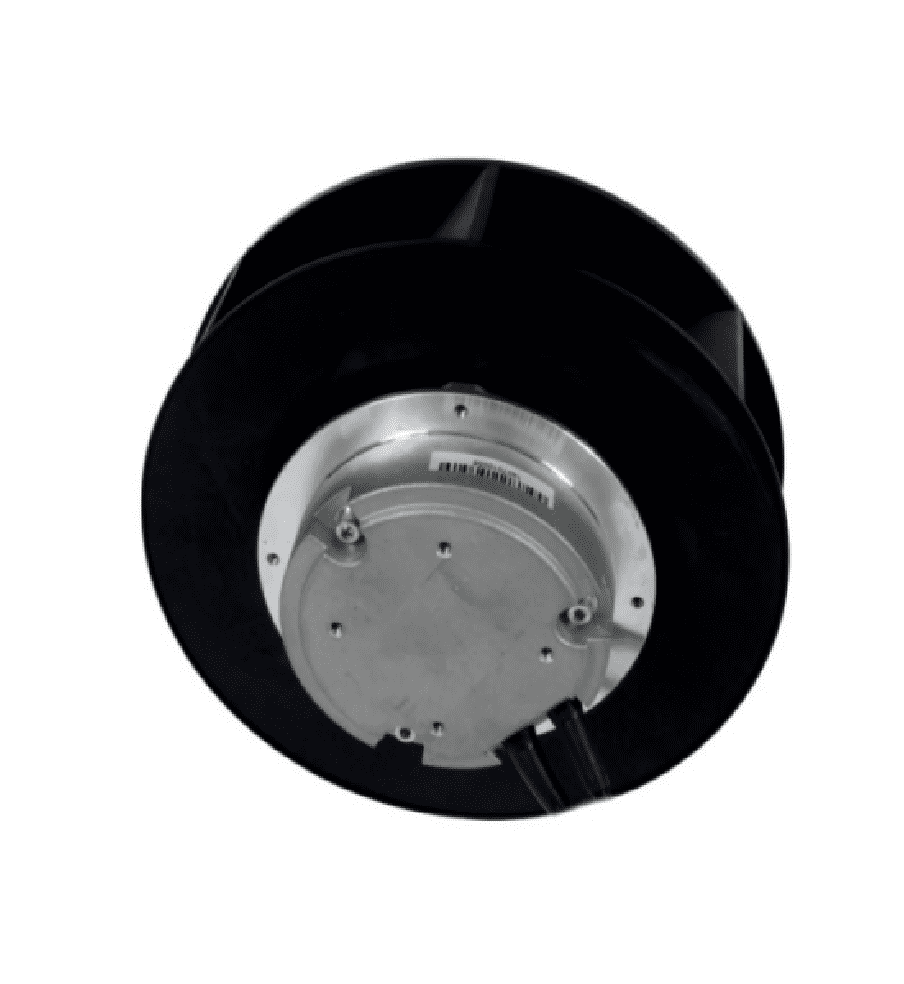

The PSP BPI-EC-133/61 is a compact backward curved centrifugal fan designed for energy-efficient airflow in commercial ventilation and OEM equipment. Featuring EC motor technology and a backward curved impeller, this model delivers reliable airflow performance whilst minimising energy consumption.

Key Product Features

• Single-phase 230V~50Hz/60Hz EC motor
• Backward curved centrifugal impeller
• Variable speed operation
• 133mm wheel diameter
• 61mm wheel height
• Airflow up to 430m³/h
• 43W input power
• Maximum speed 4480 RPM
• Compact design
• Suitable for AHUs, heat recovery units and OEM equipment

Technical Specifications

• Model: BPI-EC-133/61
• Voltage: 230V~50Hz/60Hz
• Phase: 1PH
• Input Power: 43W
• Maximum RPM: 4480
• Airflow: 430m³/h

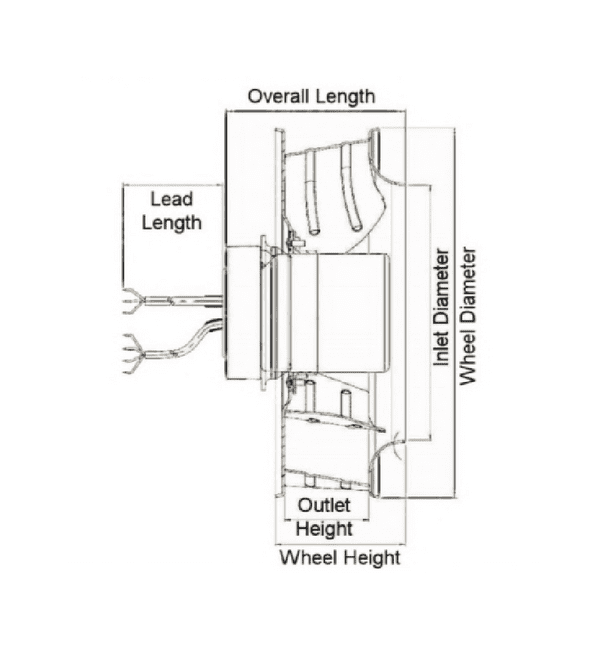

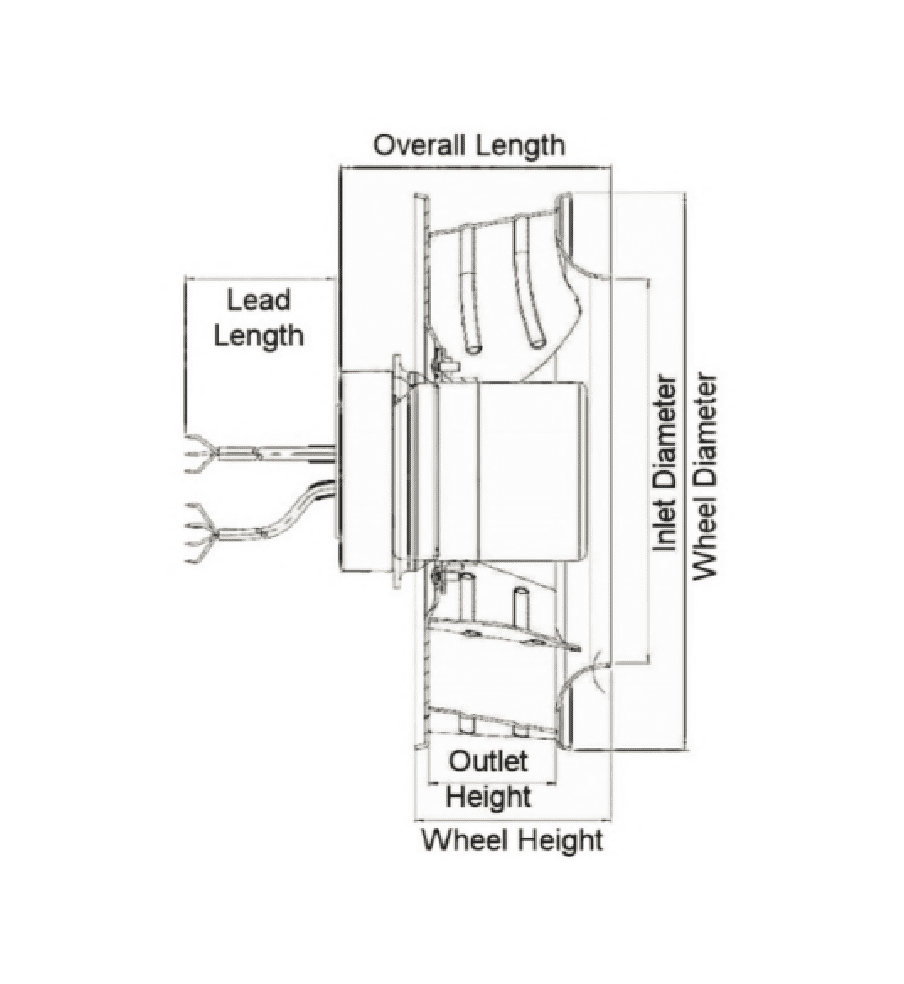

• Overall Height: 110mm
• Outlet Height: 41mm
• Wheel Height: 61mm
• Wheel Diameter: 133mm
• Fixing PCD: 58/105

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
