Introduction

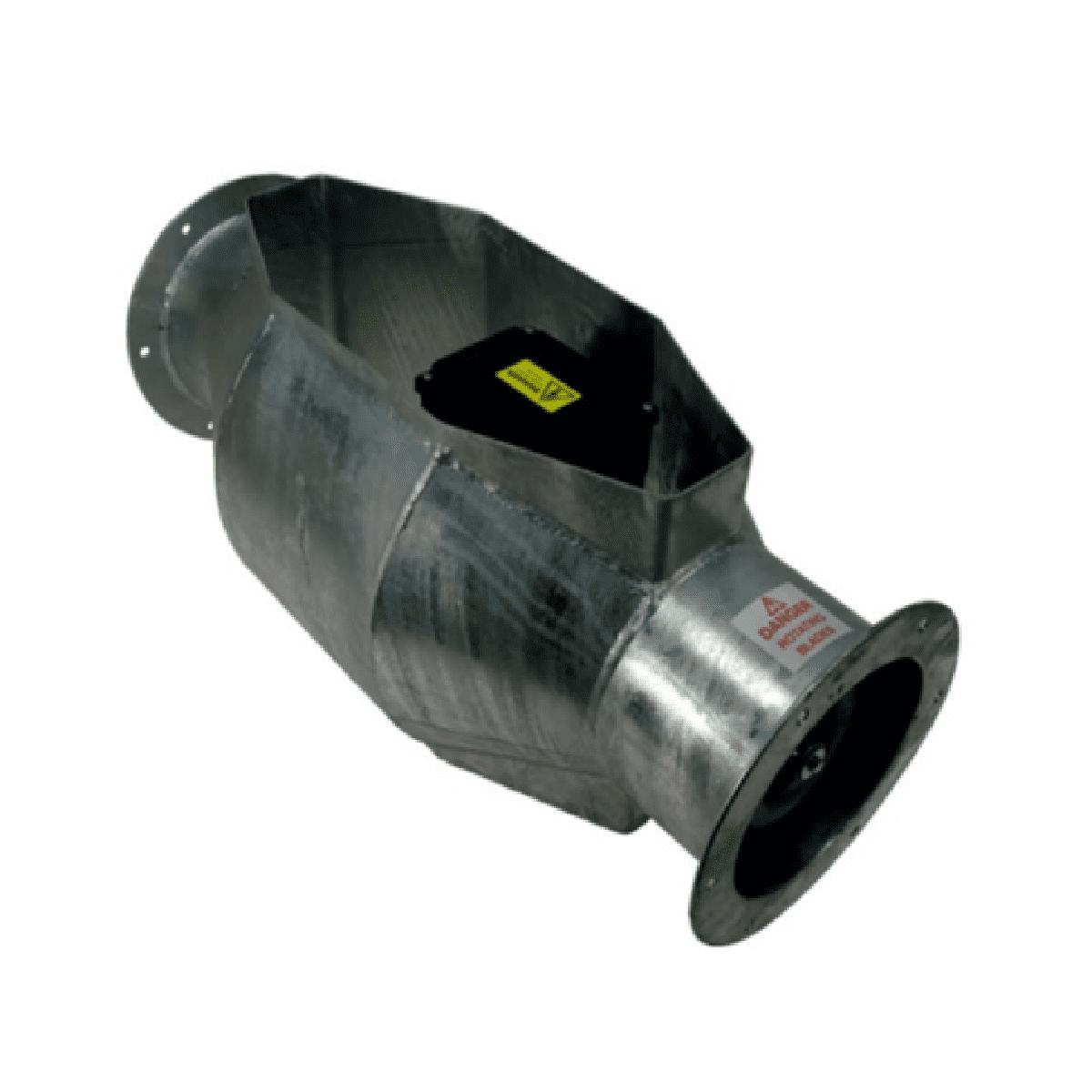

The PSP BF1-500/4-3.0N is an ATEX-rated bifurcated axial fan engineered for high-capacity ventilation and extraction in hazardous and potentially explosive environments. Operating on a single-phase 230V~50Hz/60Hz supply, this model features a bifurcated casing design which isolates the motor from the primary airflow, making it suitable for contaminated, hazardous and elevated-temperature air movement applications. Designed for continuous-duty industrial operation, this fan combines powerful airflow performance with robust heavy-duty construction for dependable long-term reliability in demanding environments.

Key Product Features

Single-phase 230V~50Hz/60Hz ATEX motor
ATEX explosion-proof bifurcated fan design
500mm internal diameter
3.0kW motor power
Lower speed operation for reduced noise levels
Motor isolated from main airflow for hazardous applications
Motor speed: 1350 RPM
Sealed-for-life ball bearings
Continuously rated air-over-motor design
Suitable for operation up to +60°C
Heavy-duty industrial construction
Suitable for hazardous area extraction and ventilation systems

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
