Introduction

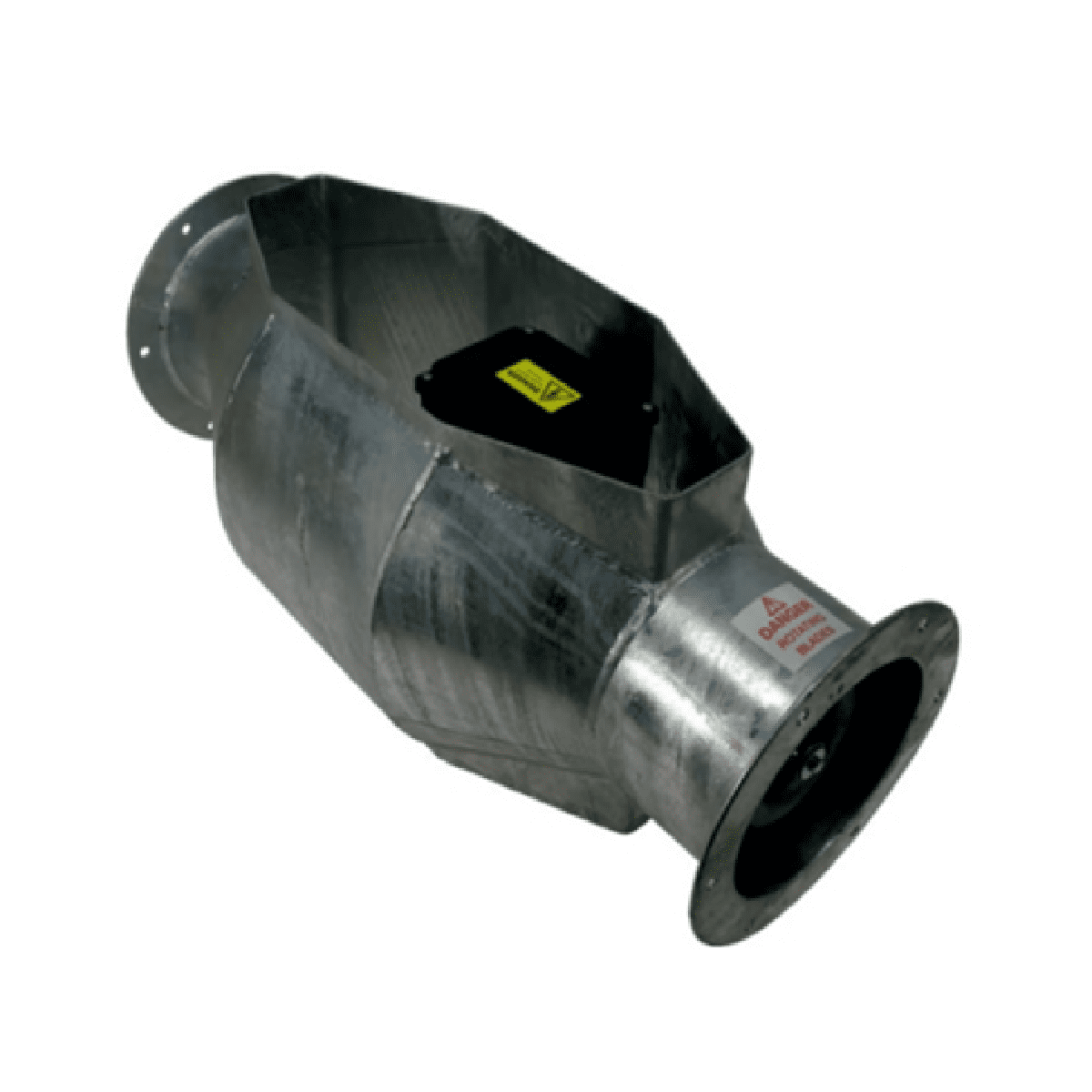

The PSP BF1-150/4-0.18N is an ATEX-rated bifurcated axial fan engineered for safe ventilation and extraction in hazardous and potentially explosive environments. Operating on a single-phase 230V~50Hz/60Hz supply, this model uses a bifurcated casing design that isolates the motor from the primary airflow, making it suitable for contaminated or hazardous air movement applications. Featuring a lower speed motor for quieter operation, this fan is ideal for continuous-duty industrial use where reliable airflow and reduced noise levels are required.

Key Product Features

Single-phase 230V~50Hz/60Hz ATEX motor
ATEX explosion-proof bifurcated fan design
150mm internal diameter
180W motor power
Lower speed operation for reduced noise levels
Motor isolated from main airflow for hazardous applications
Motor speed: 1350 RPM
Sealed-for-life ball bearings
Continuously rated air-over-motor design
Suitable for operation up to +60°C
Heavy-duty industrial construction
Suitable for hazardous area extraction and ventilation systems

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
