Introduction

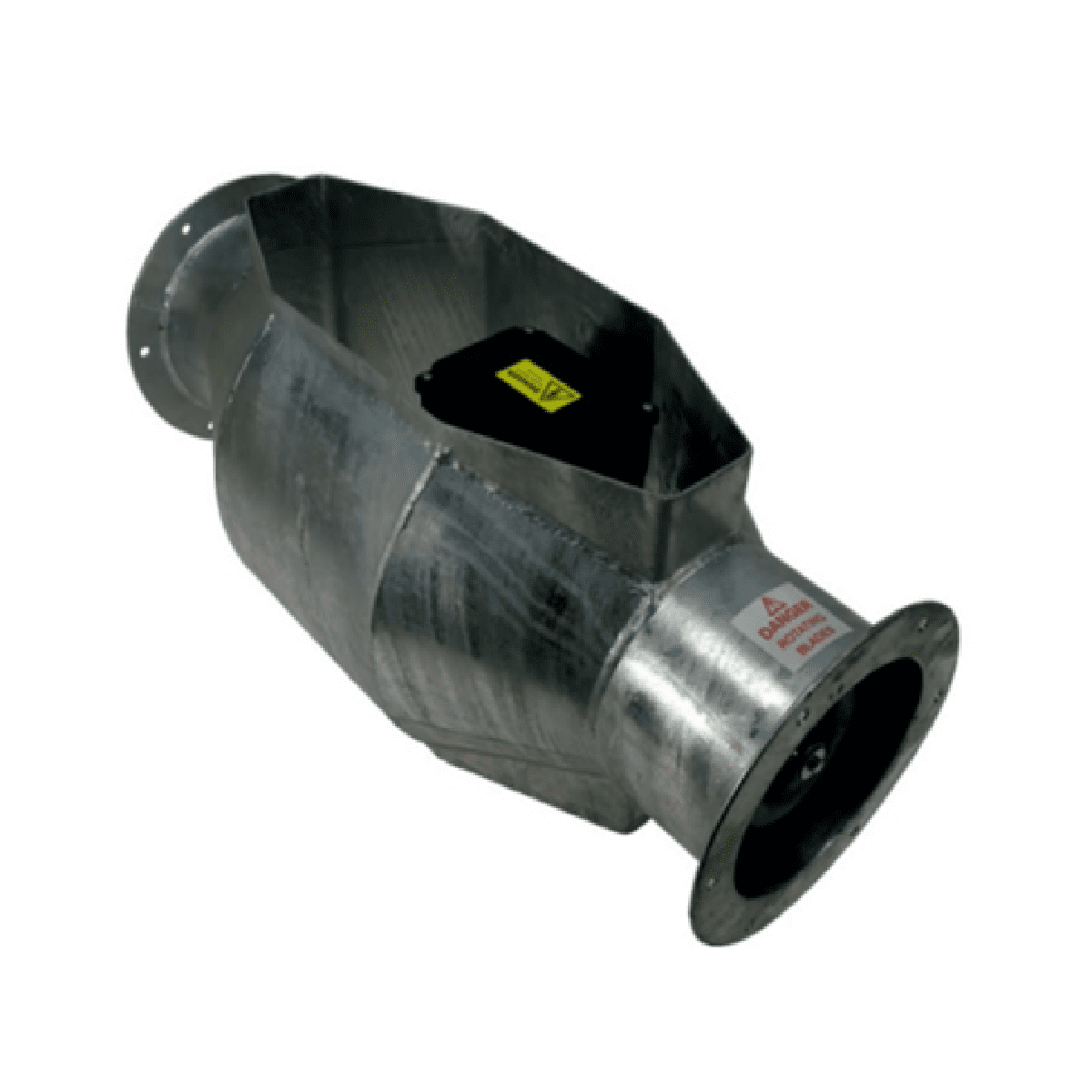

The PSP BF1-150/2-0.18N is an ATEX-rated bifurcated axial fan designed for safe ventilation in hazardous and potentially explosive environments. Operating on a single-phase 230V~50Hz/60Hz supply, this model features a bifurcated casing design which keeps the motor isolated from the main airflow, making it ideal for handling contaminated, high-temperature or hazardous air streams. Built with sealed-for-life ball bearings and continuous-duty operation, it provides reliable, low-maintenance performance in demanding industrial applications.

Key Product Features

Single-phase 230V~50Hz/60Hz ATEX motor
ATEX explosion-proof bifurcated fan design
150mm internal diameter
180W motor power
Motor isolated from main airflow for hazardous applications
Motor speed: 2500 RPM
Sealed-for-life ball bearings
Continuously rated air-over-motor design
Suitable for operation up to +60°C
Heavy-duty industrial construction
Ideal for hazardous area ventilation and extraction systems
Suitable for chemical plants, workshops, industrial processing areas and OEM applications

Disclaimer

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
