Introduction:

The PSP 48FB75-2 is a 750mm diameter external rotor axial fan engineered for robust performance in ventilation, cooling, and air movement systems. Operating on single-phase 230V~50Hz/60Hz, this 4-pole fan is optimised for quieter operation with lower speed compared to 2-pole variants, making it suitable for applications where reduced noise is preferred without compromising airflow capacity.

Key Product Features:

• 230V~50Hz/60Hz single-phase compatible

• 750mm diameter axial blade

• 4-pole motor for lower noise and smoother performance

• External rotor motor design for compact and efficient airflow

• IP44-rated protection for dust and moisture resistance

• Suitable for both blowing and suction use

• Reinforced galvanised steel frame and corrosion-resistant finish

• Durable and compact fan unit with integrated motor

• Ideal for refrigeration, ventilation, or HVAC applications

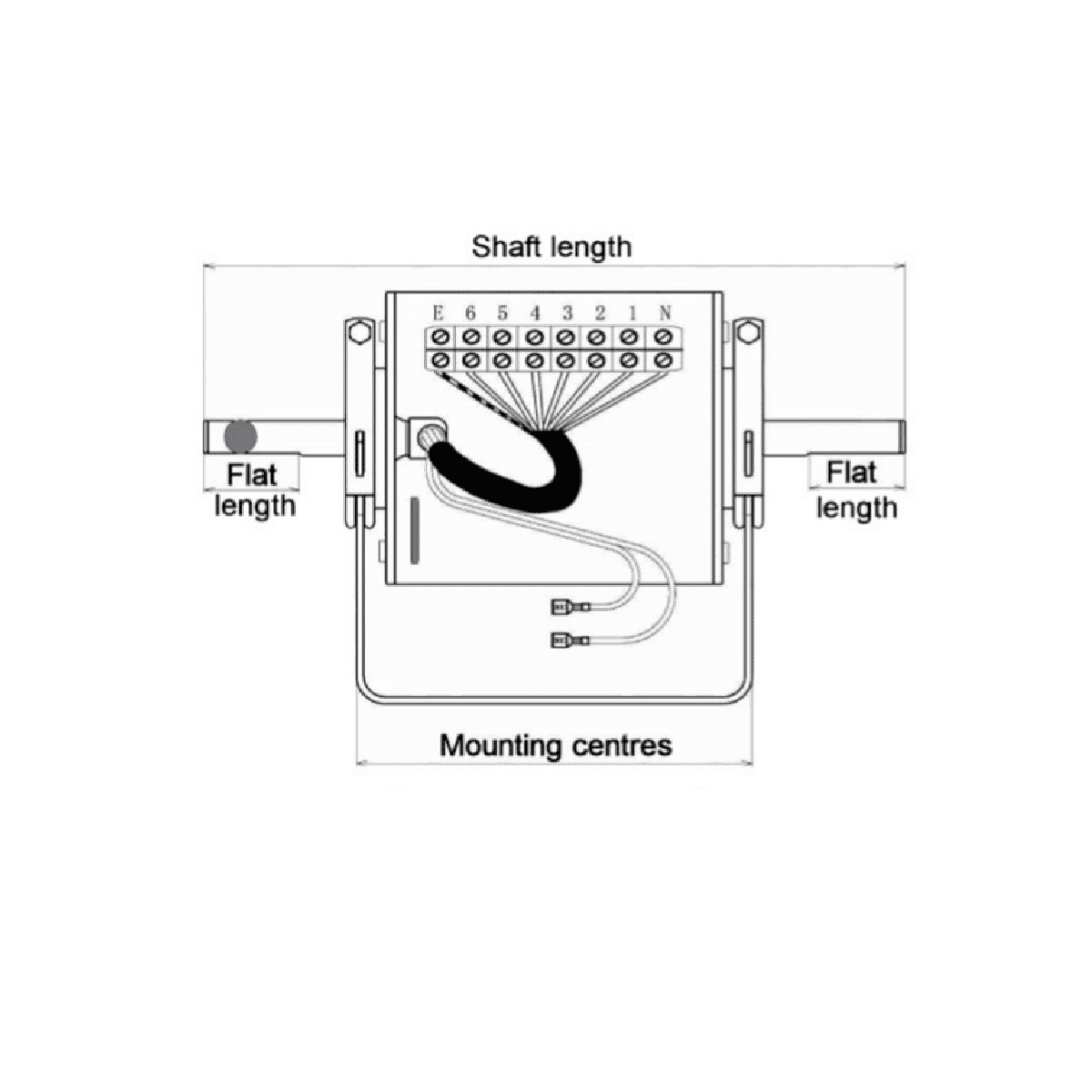

• Simple terminal box for wiring access

Technical Specifications:

• Model: 48FB75-2

• Voltage: 230V~50Hz/60Hz

• Phase: Single-phase

• Motor Type: External Rotor

• Motor Poles: 4-pole

• Diameter: 750mm

• Direction: Blowing or suction

• Speed: ~900 RPM (nominal)

• Protection Rating: IP44

• Construction: Galvanised steel

• Mounting: Panel or wall bracket mounting

Disclaimer:

Ensure professional installation in accordance with safety regulations and product suitability for the intended application.
