Introduction:

The PSP 48FB75-1 is a large-diameter 750mm external rotor axial fan designed for single-phase 230V~50Hz/60Hz power applications. Built for reliability and high airflow, this 2-pole fan is ideal for use in ventilation, refrigeration, and HVAC systems across industrial, commercial, and agricultural environments. Compact and efficient, it is suitable for both suction and blowing installations.

Key Product Features:

• 230V~50Hz/60Hz single-phase operation

• 750mm balanced axial blade for large airflow volumes

• 2-pole high-speed external rotor motor

• Robust design for continuous industrial use

• Suitable for both blowing and suction configurations

• Galvanised steel frame and corrosion-resistant finish

• Space-saving compact motor/fan assembly

• IP44-rated motor for dust and moisture protection

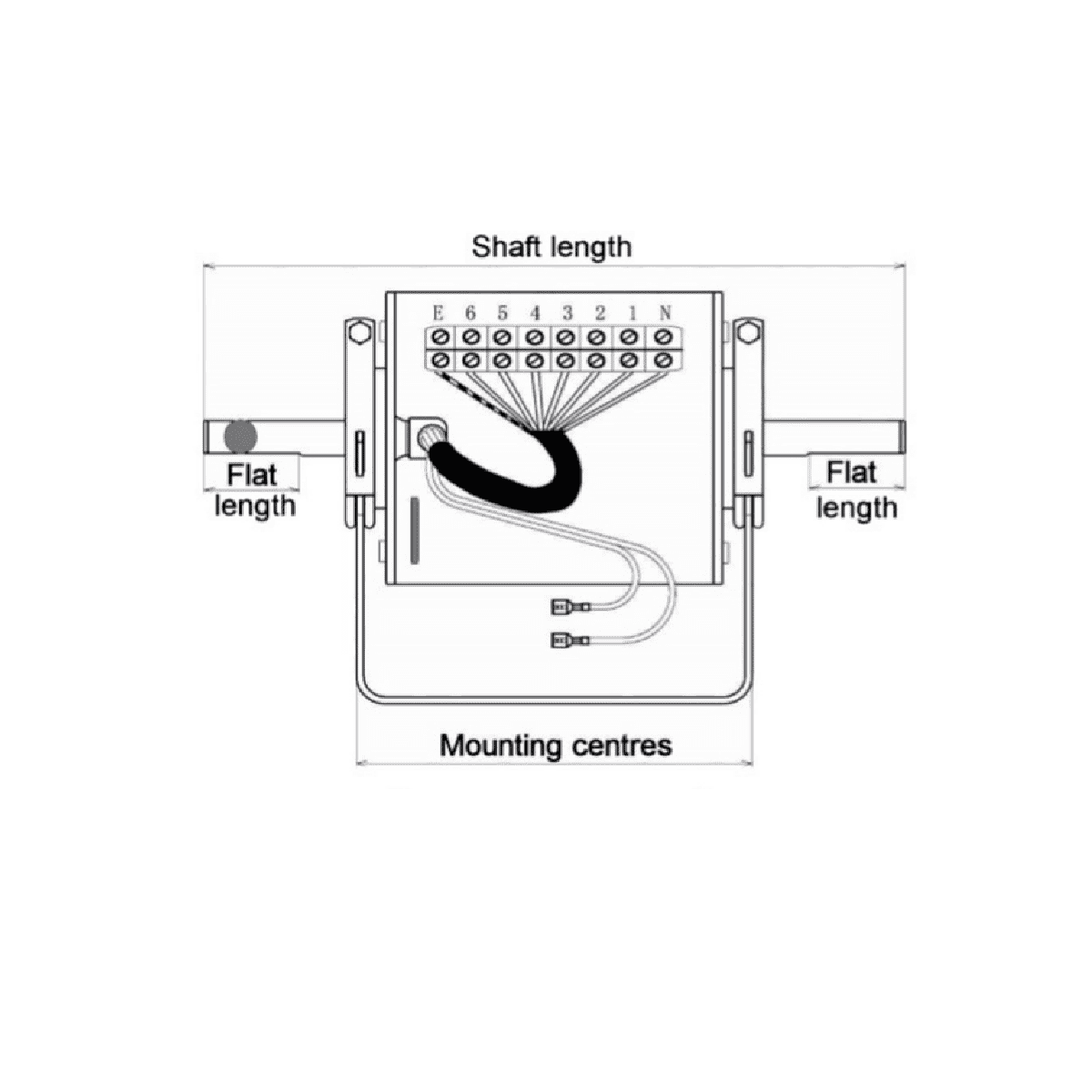

• Terminal box for straightforward electrical connection

• Durable PSP build quality for long service life

Technical Specifications:

• Model: 48FB75-1

• Voltage: 230V~50Hz/60Hz

• Phase: Single-phase

• Motor Type: External Rotor

• Motor Poles: 2-pole

• Diameter: 750mm

• Speed: ~1300 RPM

• Direction: Blowing or suction

• Protection Rating: IP44

• Material: Galvanised steel frame

• Mounting Style: Panel or bracket mounting

Disclaimer:

Installation must be carried out by qualified personnel in accordance with applicable standards and safety regulations. Verify compatibility with your system prior to installation.
