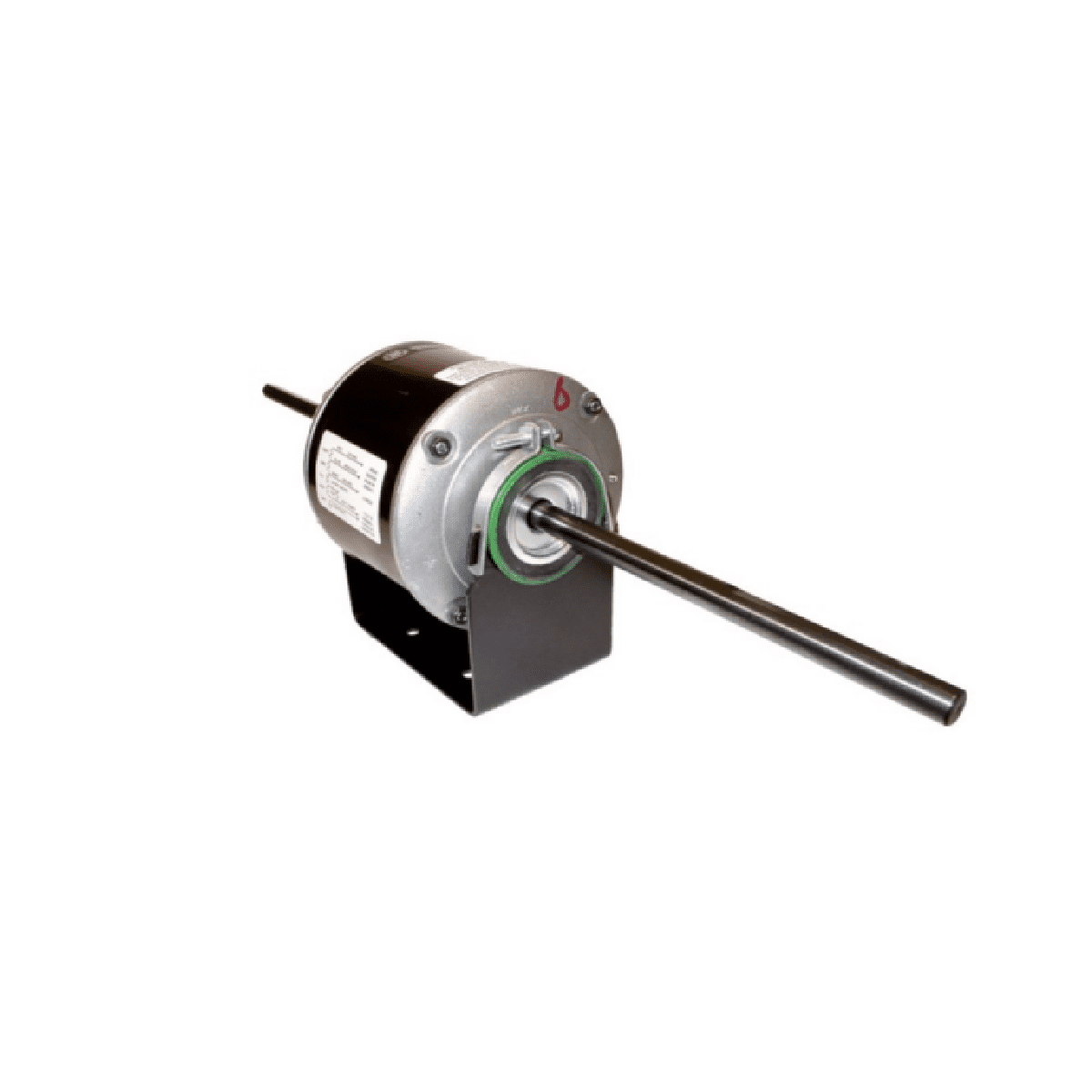

Introduction:

The PSP 48FB37-2 is a 37W resilient mount fan motor from the compact 48 Series. Operating at 1300RPM with a single speed, it offers durable performance for ventilation, heating, and air conditioning systems. Designed with a totally enclosed housing and sealed ball bearings, this fan motor ensures long life in demanding HVAC environments.

Key Product Features:

• Voltage: 230V~50Hz

• Motor Power: 37W

• Motor RPM: 1300

• Number of Speeds: 1

• Shaft Diameter: 8mm (5/16")

• Shaft Length: 50mm

• Mount Type: Resilient Mount

• Connections: Flying leads

• Insulation Class: Class B

• Enclosure: Totally enclosed

• Duty: Continuous air over motor

• Bearings: Sealed for life ball bearing

Technical Specifications:

• Part Number: 48FB37-2

• Supply: Single Phase 230V~50Hz

• Power Output: 37W

• Motor RPM: 1300

• Speeds: 1

• Shaft Diameter: 8mm (5/16")

• Shaft Length: 50mm

• Lead Length: 1100mm

• Mount Centres: 89mm

• Enclosure: Totally Enclosed

• Bearings: Sealed Ball Bearing
