Introduction:

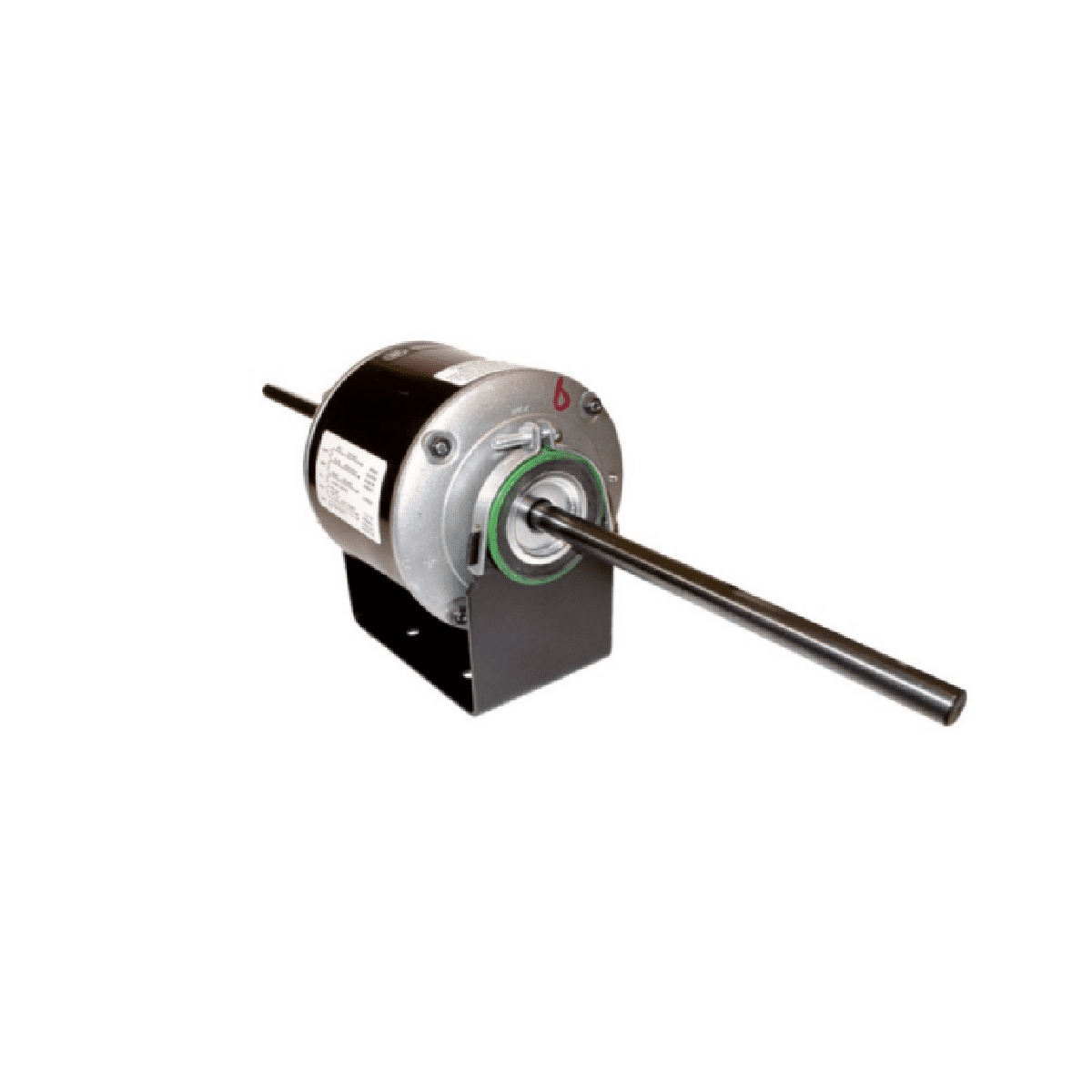

The PSP 48FB37-1 is a resilient mount fan motor from the 48 Series, offering 37W of power at 1300RPM. Designed for use in HVAC and ventilation systems, this compact PSC motor is built for continuous duty, making it a dependable solution for air movement applications where long service life and consistent performance are essential.

Key Product Features:

• Voltage: 230V~50Hz

• Motor Power: 37W

• Motor RPM: 1300

• Number of Speeds: 1

• Shaft Diameter: 8mm (5/16")

• Shaft Length: 50mm

• Mount Type: Resilient Mount

• Connections: Flying leads

• Insulation Class: Class B

• Enclosure: Totally enclosed

• Duty: Continuous air over motor

• Bearings: Sealed for life ball bearing

Technical Specifications:

• Part Number: 48FB37-1

• Supply: Single Phase 230V~50Hz

• Power Output: 37W

• Motor RPM: 1300

• Speeds: 1

• Shaft Diameter: 8mm (5/16")

• Shaft Length: 50mm

• Lead Length: 1100mm

• Mount Centres: 89mm

• Enclosure: Totally Enclosed

• Bearings: Sealed Ball Bearing
