Introduction:

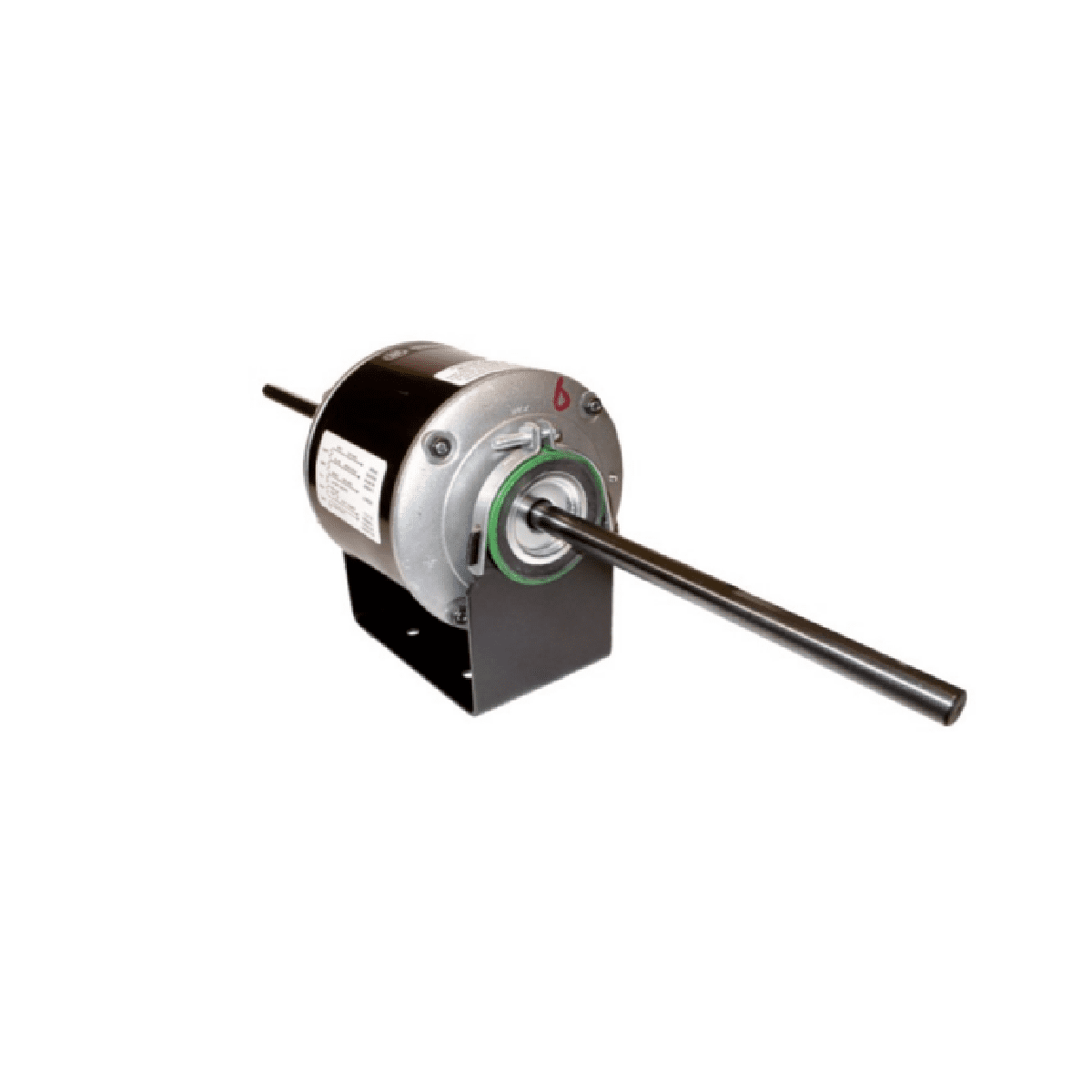

The PSP 105SB18/3V is a compact, energy-efficient fan motor designed for resilient mount applications. Operating on single-phase 230V~50Hz, it features a 3-speed setting and is ideal for various air movement systems where continuous-duty performance and compact size are key. This model is equipped with a 1/2" diameter shaft and 570mm shaft length.

Key Product Features:

• Voltage: 230V~50Hz single-phase

• Power Output: 18W

• Motor RPM: 850

• Number of Speeds: 3

• Shaft Diameter: 12.7mm (1/2")

• Shaft Length: 570mm

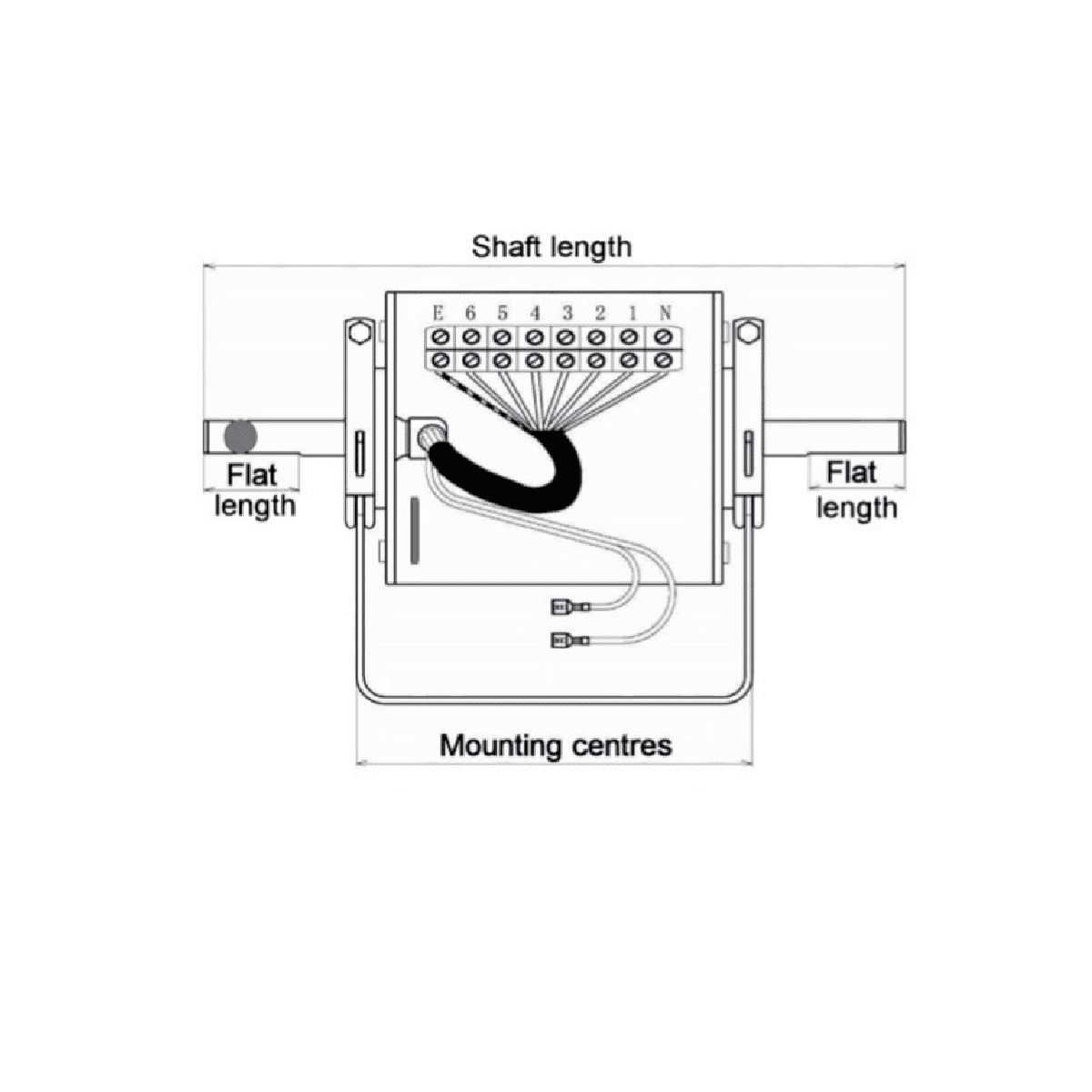

• Mounting: NBS (No Base Support), 120mm centres

• Lead Length: 1100mm

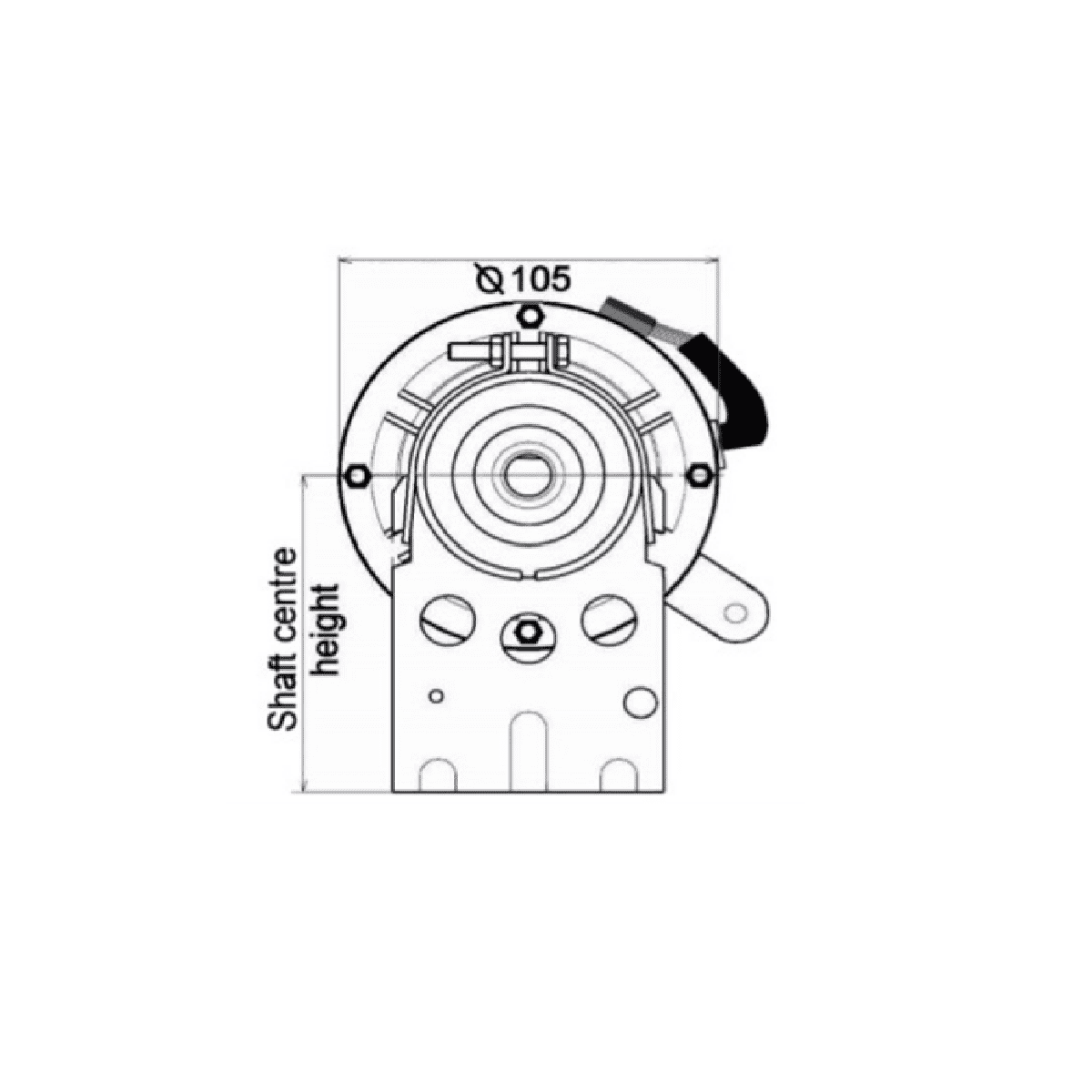

• Shaft Height: NBS

• Insulation Class: Class B

• Enclosure: Totally enclosed design

• Motor Type: PSC Motor

• Duty Rating: Continuous air over motor

• Bearings: Sealed-for-life ball bearing

• Connections: Flying leads

Technical Specifications:

• Motor Power: 18W

• Voltage Supply: 230V~50Hz

• RPM: 850

• Shaft Size: 12.7mm (1/2")

• Shaft Length: 570mm

• Mount Centres: 120mm

• Speed Settings: 3-Speed

• Price: £206.85

Disclaimer:

Ensure compatibility with system requirements. Mounting support must be appropriate for NBS (no base support) configuration.
