This Kit Includes:

1 × Powrmatic WX-3-EC LTHW Hot Water Fan Heater

1 × Integrated EC axial fan assembly

1 × High-efficiency LTHW heat exchanger

1 × Factory pre-wired terminal box

1 × Mounting bracket system

1 x WX-C-EC Manual Variable Speed Potentiometer

High Capacity 37kW LTHW Hot Water Fan Heater for Industrial and Warehouse Heating

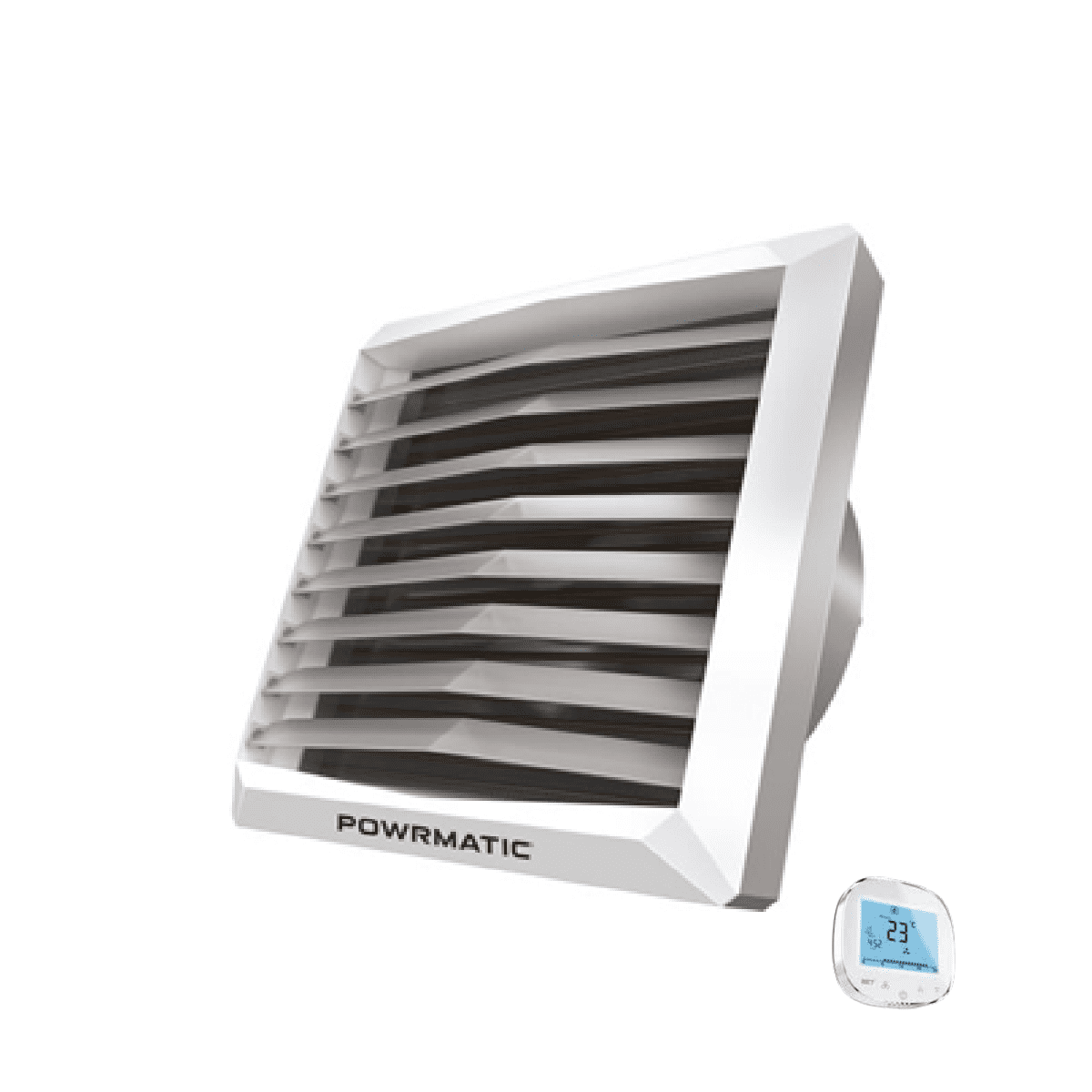

The Powrmatic WX-3-EC is a high-performance low temperature hot water (LTHW) fan heater designed to deliver powerful hydronic heating for large commercial and industrial environments. With a heating output of up to 37kW and airflow performance reaching 4850m³/h, the unit provides effective warm air distribution for warehouses, manufacturing areas and larger workshop spaces.

Built with energy-efficient EC motor technology, the WX-3-EC offers improved electrical efficiency, smoother airflow control and reduced operating costs compared to traditional AC motor unit heaters. Its robust industrial construction and high-output heat exchanger make it well suited for demanding applications requiring dependable and evenly distributed warm air heating from hydronic systems.

Key Product Features:

• LTHW hot water fan heater
• Nominal heat output: 37kW
• Heating capacity: 37kW / 126,000 Btu
• Maximum airflow: 4850 m³/h
• EC motor technology for improved energy efficiency
• Three-speed fan control
• Designed for hydronic heating systems
• Suitable for wall or ceiling mounting
• Industrial-grade casing construction
• Even heat distribution for larger industrial spaces
• Up to 40% electrical energy saving compared with conventional AC motor heaters

Technical Specifications:

Model: WX-3-EC
Product Type: LTHW Hot Water Fan Heater

Heat Output (70°C Flow / 50°C Return / EAT 10°C):
37kW

Heating Capacity (Max):
37kW / 126,000 Btu

Maximum Airflow:
4850 m³/h

Motor Type: EC energy-efficient motor
Fan Speeds: Three-speed

Electrical Supply: 220-240V~50Hz 1Ph

System Type: Low Temperature Hot Water (LTHW)
Heat Source Compatibility: Boiler or Air Source Heat Pump

Mounting: Wall or ceiling installation

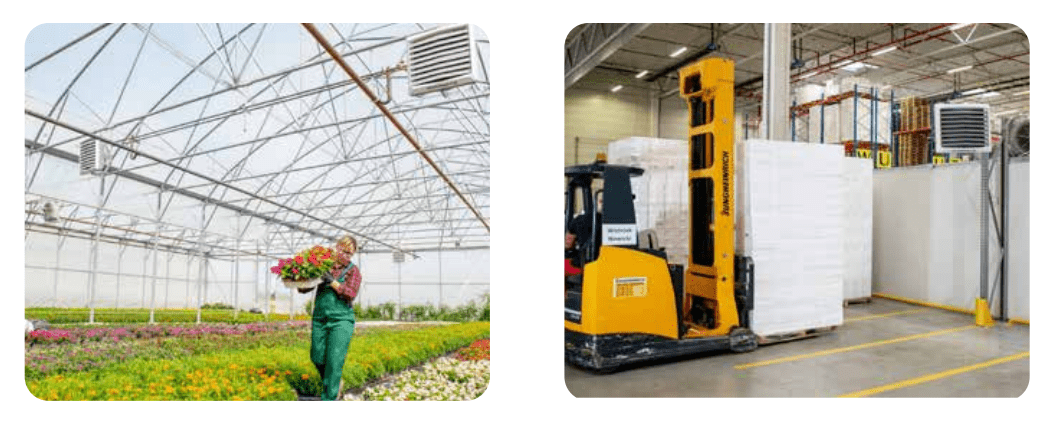

Applications:

• Industrial warehouses
• Manufacturing facilities
• Distribution centres
• Agricultural buildings
• Vehicle workshops
• Large commercial premises

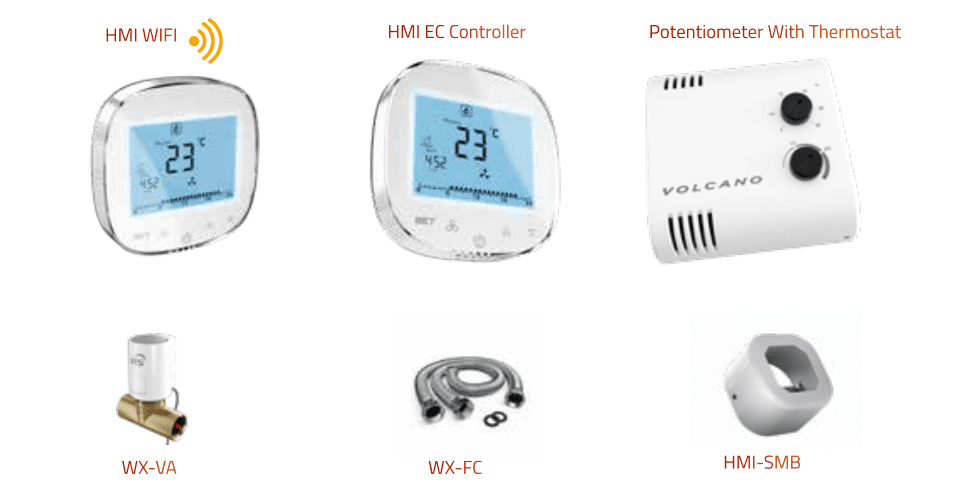

Accessories:
