This Kit Includes:

1 × Powrmatic WX-2-EC LTHW Hot Water Fan Heater

1 × Integrated EC axial fan assembly

1 × High-efficiency LTHW heat exchanger

1 × Factory pre-wired terminal box

1 × Mounting bracket system

1 x WX-C-EC Manual Variable Speed Potentiometer

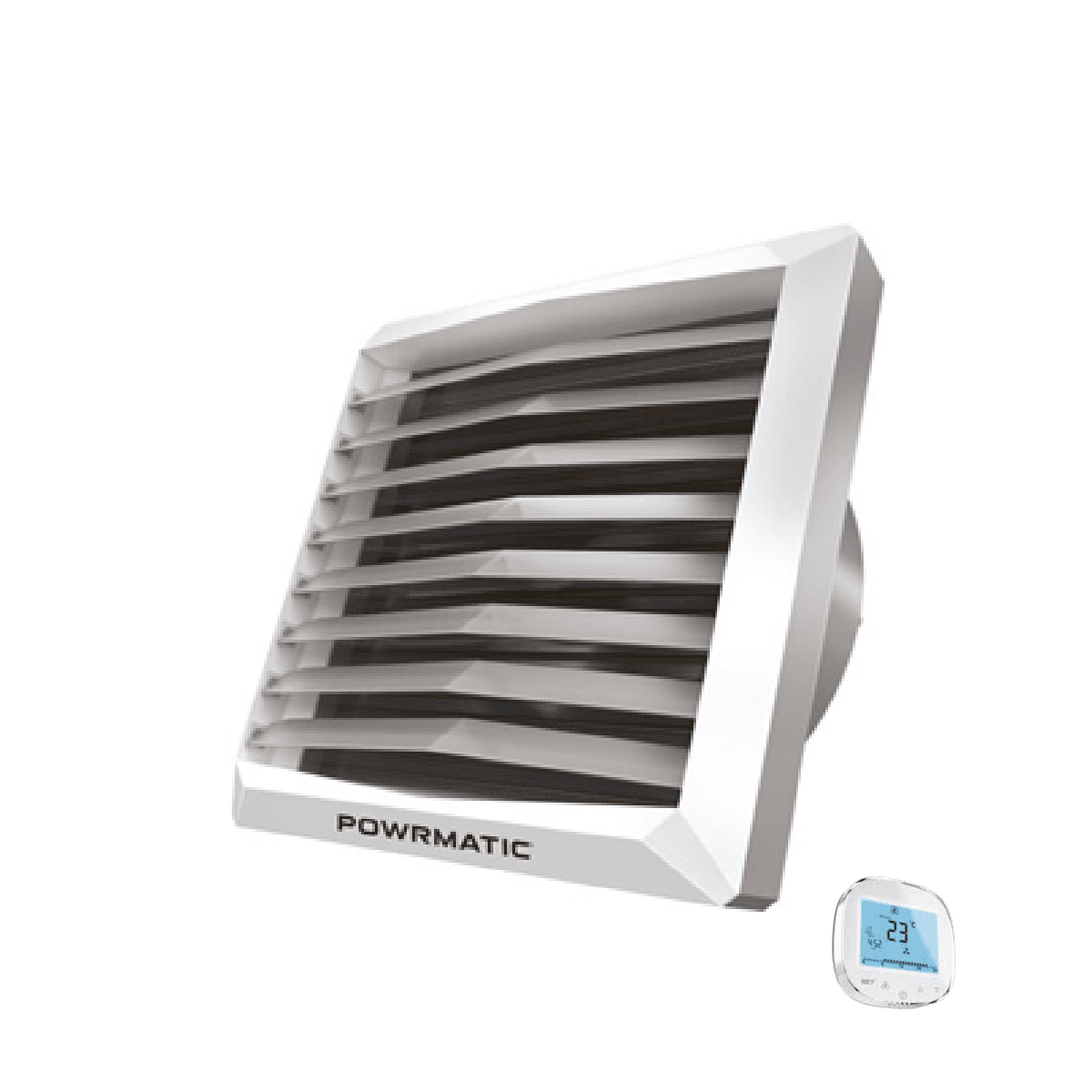

High Performance 22kW LTHW Hot Water Fan Heater for Warehouses and Industrial Spaces

The Powrmatic WX-2-EC is a powerful low temperature hot water (LTHW) fan heater designed to deliver reliable hydronic heating performance for medium-sized commercial and industrial environments. Producing up to 22kW of heating output with airflow reaching 5300m³/h, the unit provides strong heat distribution across workshops, warehouses and manufacturing spaces.

Built with energy-efficient EC motor technology, the WX-2-EC delivers improved electrical efficiency and smoother fan control compared to traditional AC motor unit heaters. Its robust construction and high airflow capacity make it a dependable solution for installations requiring effective warm air circulation from hydronic heating systems including boilers or modern heat pump systems.

Key Product Features:

• LTHW hot water fan heater
• Nominal heat output: 22kW
• Heating capacity: 22kW / 75,000 Btu
• High airflow performance: 5300 m³/h
• EC motor technology for improved energy efficiency
• Three-speed fan control
• Designed for hydronic heating systems
• Suitable for wall or ceiling mounting
• Robust industrial casing
• Even heat distribution across larger spaces
• Up to 40% electrical energy saving compared with conventional AC motor heaters

Technical Specifications:

Model: WX-2-EC
Product Type: LTHW Hot Water Fan Heater

Heat Output (70°C Flow / 50°C Return / EAT 10°C):
22kW

Heating Capacity (Max):
22kW / 75,000 Btu

Maximum Airflow:
5300 m³/h

Motor Type: EC energy-efficient motor
Fan Speeds: Three-speed

Electrical Supply: 220-240V~50Hz 1Ph

System Type: Low Temperature Hot Water (LTHW)
Heat Source Compatibility: Boiler or Air Source Heat Pump

Mounting: Wall or ceiling installation

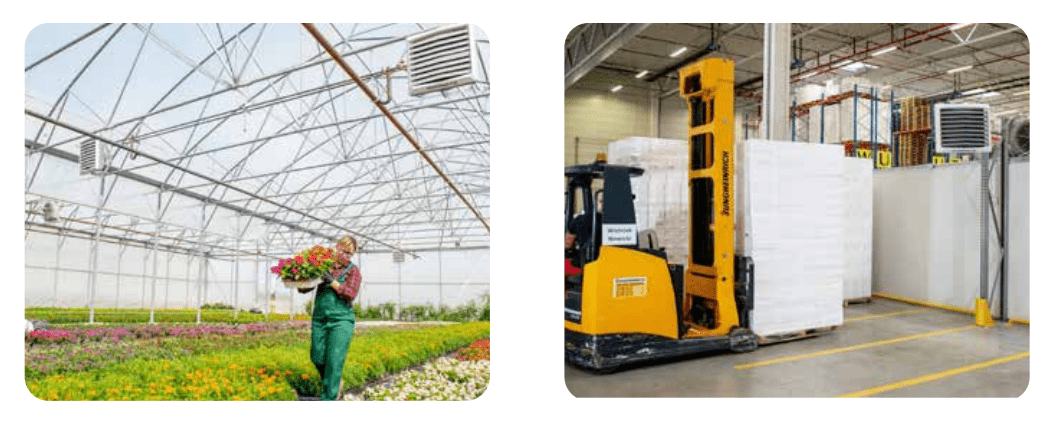

Applications:

• Warehouses
• Workshops
• Manufacturing facilities
• Agricultural buildings
• Vehicle workshops
• Distribution units
• Commercial premises requiring hydronic heating

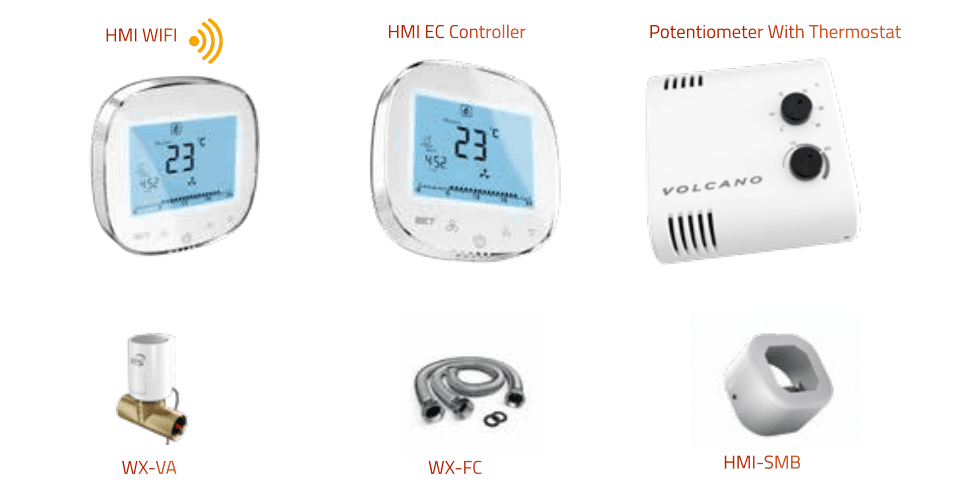

Accessories:
