This Kit Includes:

1 × Powrmatic WX-1.1-EC LTHW Hot Water Fan Heater

1 × Integrated EC axial fan assembly

1 × High-efficiency low temperature heat exchanger

1 × Factory pre-wired terminal box

1 × Mounting bracket system

1 x WX-C-EC Manual Variable Speed Potentiometer

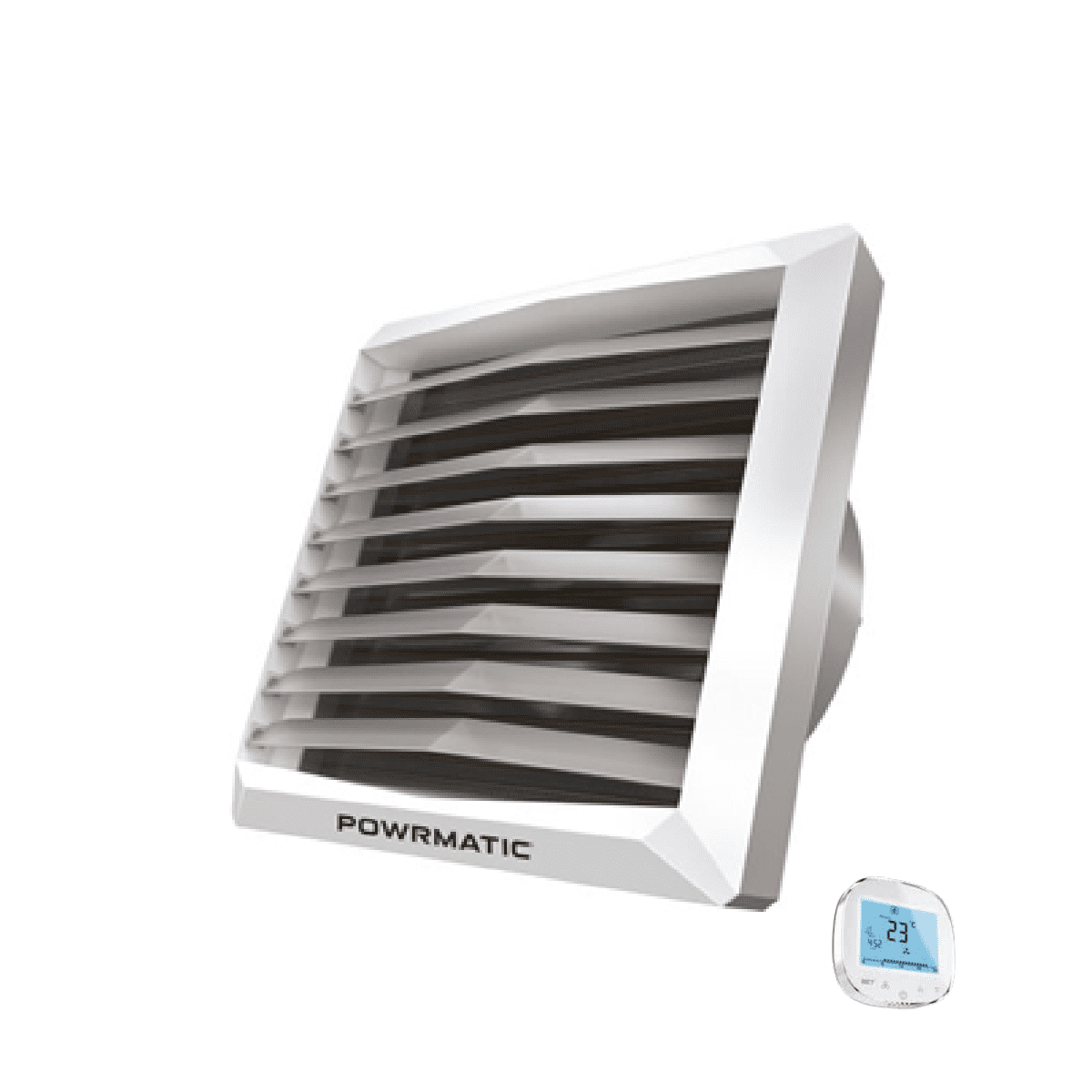

ASHP Optimised 15kW LTHW Hot Water Fan Heater for Low Temperature Heating Systems

The Powrmatic WX-1.1-EC is a low temperature hot water (LTHW) fan heater specifically engineered for compatibility with Air Source Heat Pump systems and modern low temperature hydronic installations. Delivering up to 15kW of heating performance with airflow of 2000m³/h, the unit provides efficient and responsive space heating in commercial and industrial environments.

Designed to operate effectively at reduced water temperatures, the WX-1.1-EC offers enhanced performance in heat pump applications where traditional high-temperature unit heaters would experience output loss. The integrated EC motor ensures smooth speed control and reduced electrical consumption, providing improved energy efficiency compared to conventional AC motor alternatives.

Key Product Features:

• LTHW hot water fan heater
• Specifically optimised for ASHP compatibility
• Nominal heat output: 15kW
• Heating capacity: 15kW / 51,000 Btu
• Maximum airflow: 2000 m³/h
• EC motor technology for reduced electrical consumption
• Three-speed energy-efficient fan control
• Suitable for low temperature hydronic systems
• Compact industrial casing
• Wall or ceiling mounting capability
• Smooth speed regulation for enhanced comfort control
• Ideal for decarbonisation-focused heating upgrades

Technical Specifications:

Model: WX-1.1-EC
Product Type: LTHW Hot Water Fan Heater

Heat Output (70°C Flow / 50°C Return / EAT 10°C):
15kW

Heating Capacity (Max):
15kW / 51,000 Btu

Maximum Airflow:
2000 m³/h

Motor Type: EC energy-efficient motor
Fan Speeds: Three-speed

Electrical Supply: 220-240V~50Hz 1Ph

System Type: Low Temperature Hot Water (LTHW)
Heat Source Compatibility: Boiler or Air Source Heat Pump

Mounting: Wall or ceiling installation

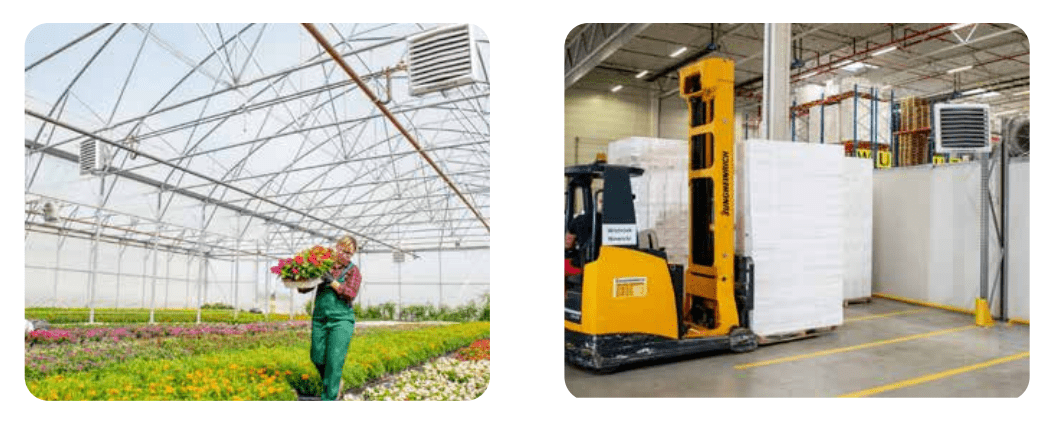

Applications:

• Workshops
• Small warehouses
• Trade counters
• Agricultural buildings
• Garages
• Commercial plant rooms
• Retail back-of-house areas

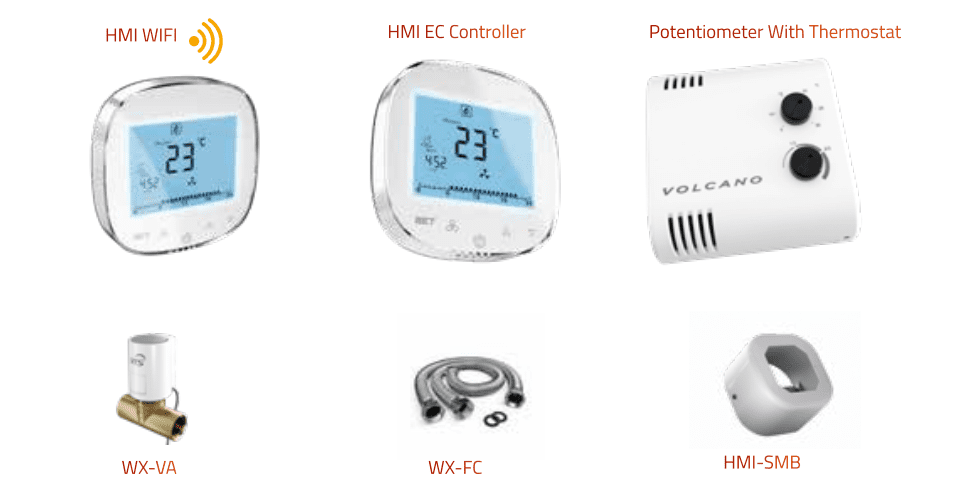

Accessories:
