This Kit Includes:

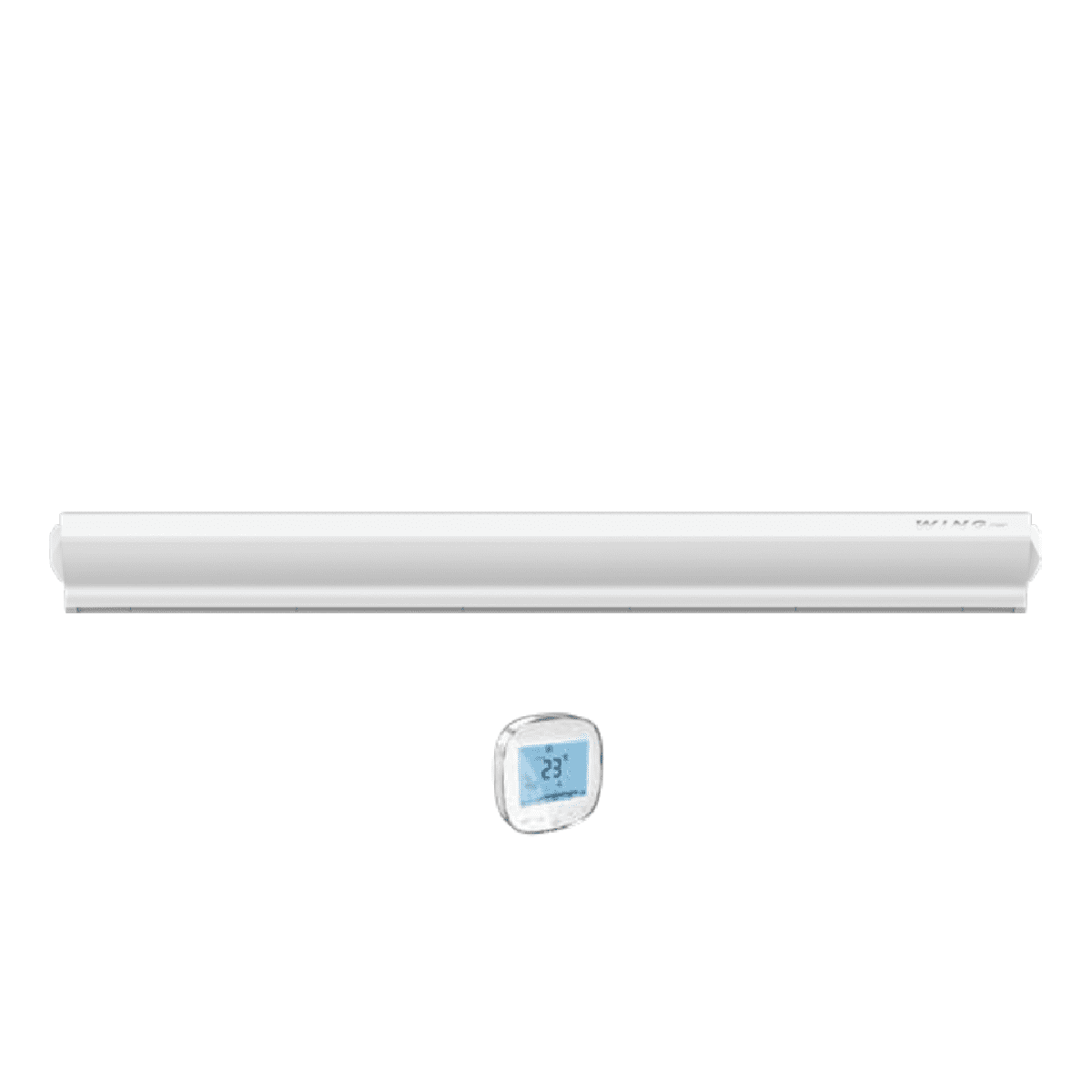

1 × Powrmatic VTS WING-E200W-EC Electric Heated Door Curtain (White)
1 × Integrated EC centrifugal fan assembly
1 × Electric heating element assembly (10–15kW)
1 × Mounting bracket system
1 × Factory pre-wired internal controls
1 × WING-HMI Programmable Automatic Variable Speed Potentiometer

High Output 10–15kW Electric Heated Door Curtain for Wide Commercial and Warehouse Entrances

The Powrmatic VTS WING-E200W-EC is a 2000mm electric heated door curtain engineered for large commercial and industrial door openings requiring powerful thermal separation. Designed with energy-efficient EC motor technology and three-phase electric heating, it produces a strong, consistent downward air barrier that helps reduce heat loss and stabilise internal working temperatures.

With adjustable heating output from 10–15kW and high airflow performance up to 4500m³/h, this model is particularly suited to distribution centres, manufacturing facilities and high-traffic warehouse entrances where environmental control and operational efficiency are essential.

Key Product Features:

• Electric heated commercial door curtain
• Adjustable heat output: 10–15kW
• Maximum heating capacity: 15kW / 51,000 Btu
• EC motor technology for energy efficiency
• Three-phase 380-415V electrical supply
• Airflow range: 2100–4500 m³/h
• 2000mm unit length
• White commercial finish
• Supplied with WING-HMI programmable speed controller
• Designed for horizontal over-door installation
• Suitable for industrial and warehouse environments
• Helps reduce cold air ingress and operational heat loss
• High airflow performance for wide doorway coverage

Technical Specifications:

Model: WING-E200W-EC
Product Type: Electric Heated Door Curtain
Length: 2000 mm
Colour: White

Heat Output:
Minimum: 10kW
Maximum: 15kW

Heating Capacity (Max): 15kW / 51,000 Btu

Airflow Volume:
Minimum: 2100 m³/h
Maximum: 4500 m³/h

Electrical Supply: 380-415V~50Hz 3Ph
Motor Type: EC centrifugal

Installation Type: Horizontal over-door mounting

Applications:

• Retail shop entrances
• Showrooms and commercial frontages
• Trade counter entrances
• Warehouses and distribution centres
• Manufacturing facilities
• High traffic commercial doorways
