This Kit Includes:

1 × Powrmatic VTS WING-E150W-EC Electric Heated Door Curtain (White)
1 × Integrated EC centrifugal fan assembly
1 × Electric heating element assembly (8–12kW)
1 × Mounting bracket system
1 × Factory pre-wired internal controls
1 × WING-HMI Programmable Automatic Variable Speed Potentiometer

High Capacity 8–12kW Electric Heated Door Curtain for Retail and Commercial Entrances

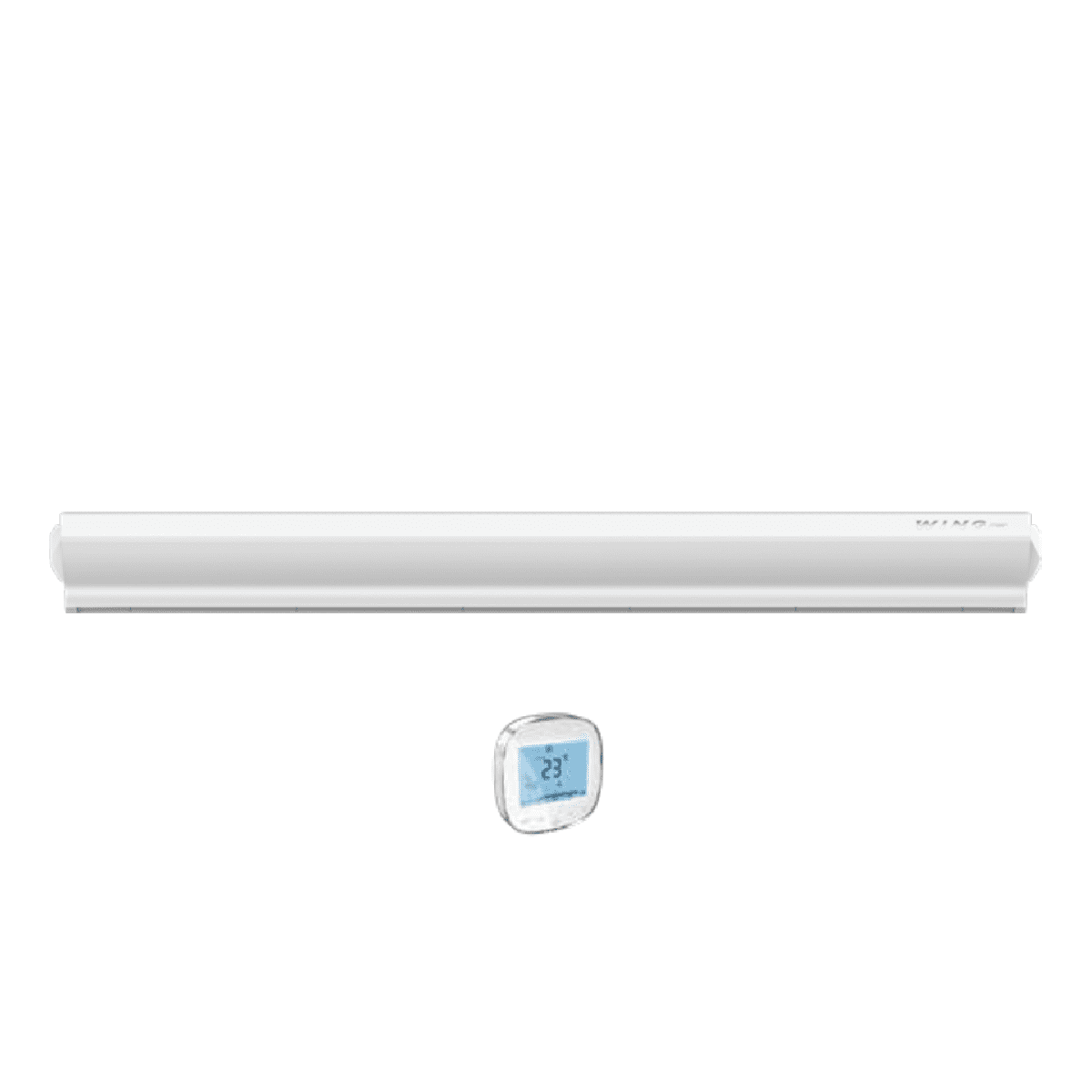

The Powrmatic VTS WING-E150W-EC is a 1500mm electric heated door curtain engineered to deliver powerful thermal separation across wider commercial and industrial door openings. Featuring energy-efficient EC motor technology and three-phase electric heating, it creates a controlled downward air barrier that helps reduce heat loss while maintaining stable internal temperatures.

With adjustable 8–12kW heating output and airflow performance up to 3150m³/h, this model is ideally suited to retail entrances, trade counters, warehouses and commercial buildings requiring consistent environmental control across larger doorways.

Key Product Features:

• Electric heated commercial door curtain
• Adjustable heat output: 8–12kW
• Maximum heating capacity: 12kW / 42,000 Btu
• EC motor technology for energy efficiency
• Three-phase 380-415V electrical supply
• Airflow range: 1450–3150 m³/h
• 1500mm unit length
• White commercial finish
• Supplied with WING-HMI programmable speed controller
• Designed for horizontal over-door installation
• Suitable for retail, warehouse and commercial entrances
• Helps reduce cold air ingress and operational heat loss
• High airflow performance for wider doorway coverage

Technical Specifications:

Model: WING-E150W-EC
Product Type: Electric Heated Door Curtain
Length: 1500 mm
Colour: White

Heat Output:
Minimum: 8kW
Maximum: 12kW

Heating Capacity (Max): 12kW / 42,000 Btu

Airflow Volume:
Minimum: 1450 m³/h
Maximum: 3150 m³/h

Electrical Supply: 380-415V~50Hz 3Ph
Motor Type: EC centrifugal

Installation Type: Horizontal over-door mounting

Applications:

• Retail shop entrances
• Showrooms and commercial frontages
• Trade counter entrances
• Warehouses and distribution centres
• Manufacturing facilities
• High traffic commercial doorways
