This Kit Includes:

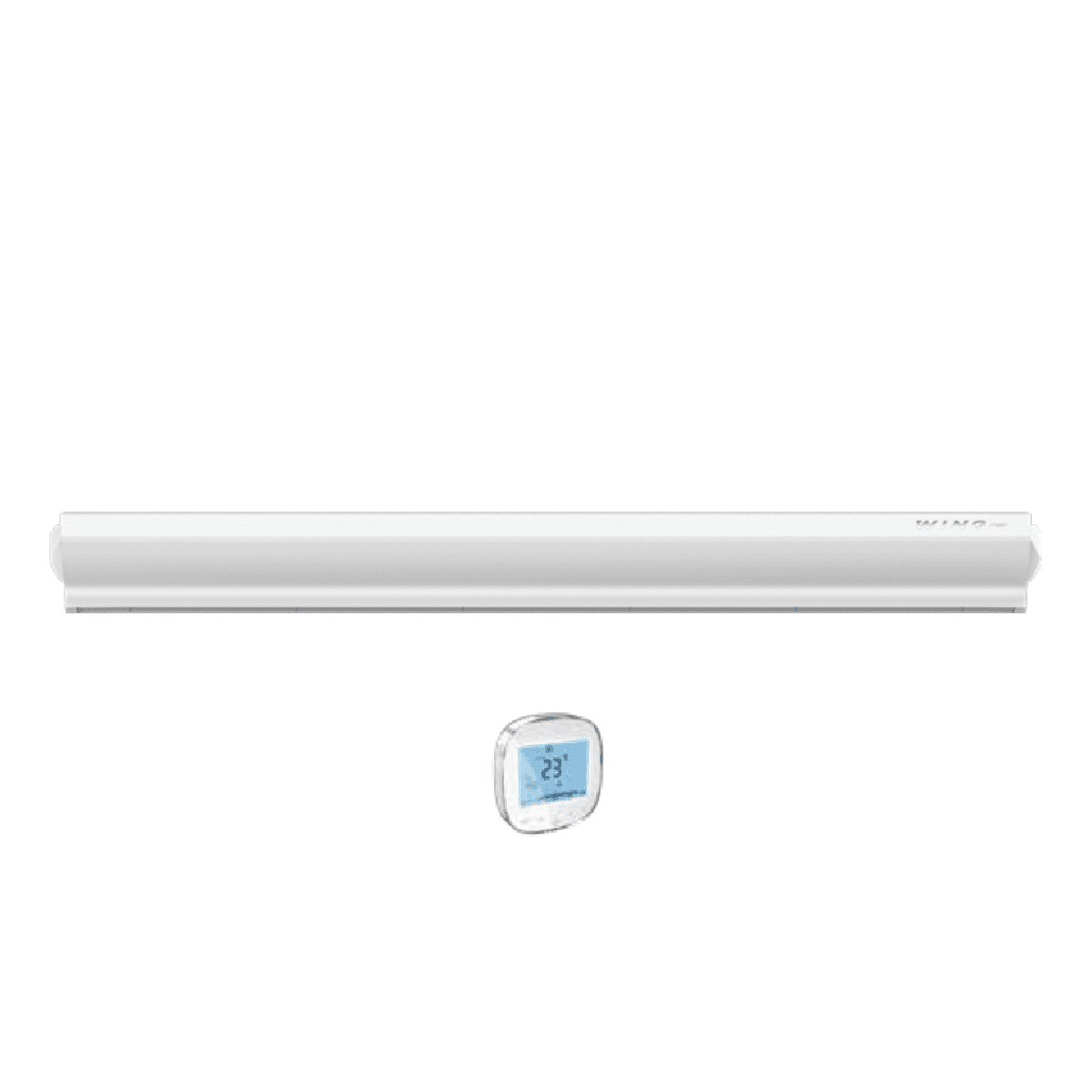

1 × Powrmatic VTS WING-E100W-EC Electric Heated Door Curtain (White)
1 × Integrated EC centrifugal fan assembly
1 × Electric heating element assembly (4–6kW)
1 × Mounting bracket system
1 × Factory pre-wired internal controls
1 × WING-HMI Programmable Automatic Variable Speed Potentiometer

Compact 4–6kW Electric Heated Door Curtain for Retail and Commercial Entrances

The Powrmatic VTS WING-E100W-EC is a 1000mm electric heated door curtain engineered to create a consistent thermal barrier across commercial and industrial door openings. Featuring energy-efficient EC motor technology and three-phase electric heating, it delivers controlled air separation while reducing heat loss and maintaining stable internal temperatures.

With adjustable 4–6kW output and variable airflow performance, the unit can be matched precisely to site conditions, making it ideal for retail entrances, warehouse access points and commercial buildings requiring reliable climate separation.

Key Product Features:

• Electric heated commercial door curtain
• Adjustable heat output: 4–6kW
• EC motor technology for energy efficiency
• Three-phase 380-415V electrical supply
• Airflow range: 920–1850 m³/h
• 1000mm unit length
• White commercial finish
• Supplied with WING-HMI programmable speed controller
• Designed for horizontal over-door installation
• Suitable for retail, warehouse and commercial entrances
• Helps reduce cold air ingress and energy loss
• Smooth airflow projection across doorway width
• Compact profile with modern industrial styling

Technical Specifications:

Model: WING-E100W-EC
Product Type: Electric Heated Door Curtain
Length: 1000 mm
Colour: White

Heat Output:
Minimum: 4kW
Maximum: 6kW

Airflow Volume:
Minimum: 920 m³/h
Maximum: 1850 m³/h

Electrical Supply: 380-415V~50Hz 3Ph
Motor Type: EC centrifugal

Installation Type: Horizontal over-door mounting

Applications:

• Retail shop entrances
• Commercial doorways
• Warehouse personnel access doors
• Industrial workshops
• Reception and trade counter environments

Accessories:
