This Kit Includes:

• 1 × Powrmatic VTS WING-E100G-EC Electric Heated Door Curtain (Grey)
• 1 × Integrated EC centrifugal fan assembly
• 1 × Electric heating element assembly (4–6kW)
• 1 × Mounting bracket system
• 1 × Factory pre-wired internal controls
• 1 x WING-HMI Programable Automatic Variable Speed Potentiometer

Compact 4–6kW Electric Heated Door Curtain for Retail and Commercial Entrances

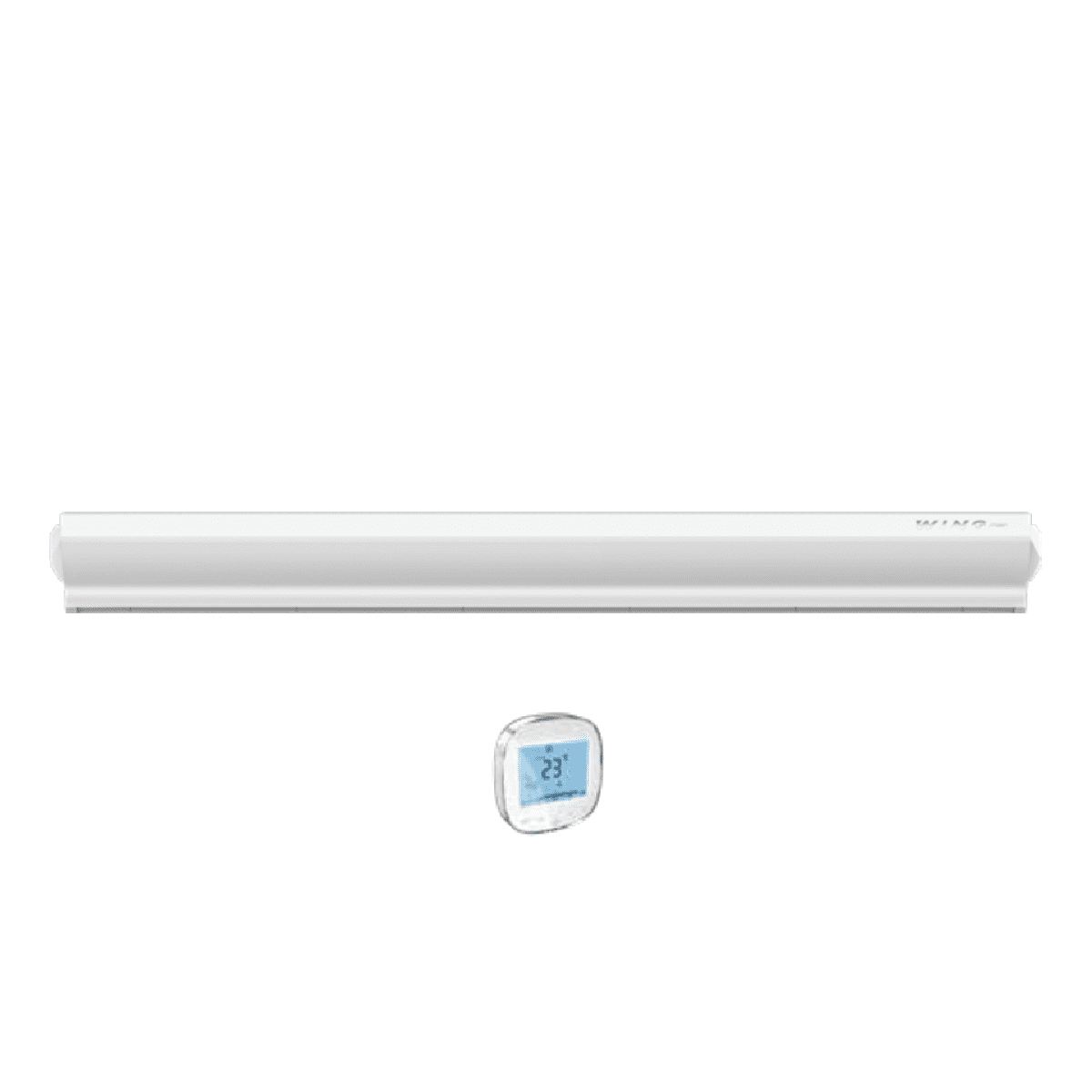

The Powrmatic VTS WING-E100G-EC is a 1000mm electric heated door curtain engineered to create an effective thermal barrier across commercial door openings. Designed with energy-efficient EC motor technology and three-phase electric heating, this unit delivers controlled air separation while reducing heat loss and maintaining internal comfort levels in retail, warehouse and industrial environments. Its adjustable 4–6kW output allows performance to be matched to site requirements, making it a pragmatic solution for standard-height entrances where consistent climate control and operational efficiency are essential.

Key Product Features:

• Electric heated commercial door curtain
• Adjustable heat output: 4–6kW
• EC motor technology for energy efficiency
• Three-phase 380-415V electrical supply
• Airflow range: 920–1850 m³/h
• 1000mm unit length
• Grey commercial finish
• Designed for horizontal over-door installation
• Suitable for retail, warehouse and commercial entrances
• Helps reduce cold air ingress and energy loss
• Smooth airflow projection across doorway width
• Compact profile with modern industrial styling

Technical Specifications:

Model: WING-E100G-EC
Product Type: Electric Heated Door Curtain
Length: 1000 mm
Colour: Grey

Heat Output:
Minimum: 4kW
Maximum: 6kW

Airflow Volume:
Minimum: 920 m³/h
Maximum: 1850 m³/h

Electrical Supply: 380-415V~50Hz 3Ph
Motor Type: EC centrifugal

Installation Type: Horizontal over-door mounting

Applications:

• Retail shop entrances
• Commercial doorways
• Warehouse personnel access doors
• Industrial workshops
• Reception and trade counter environments
