This Kit Includes:

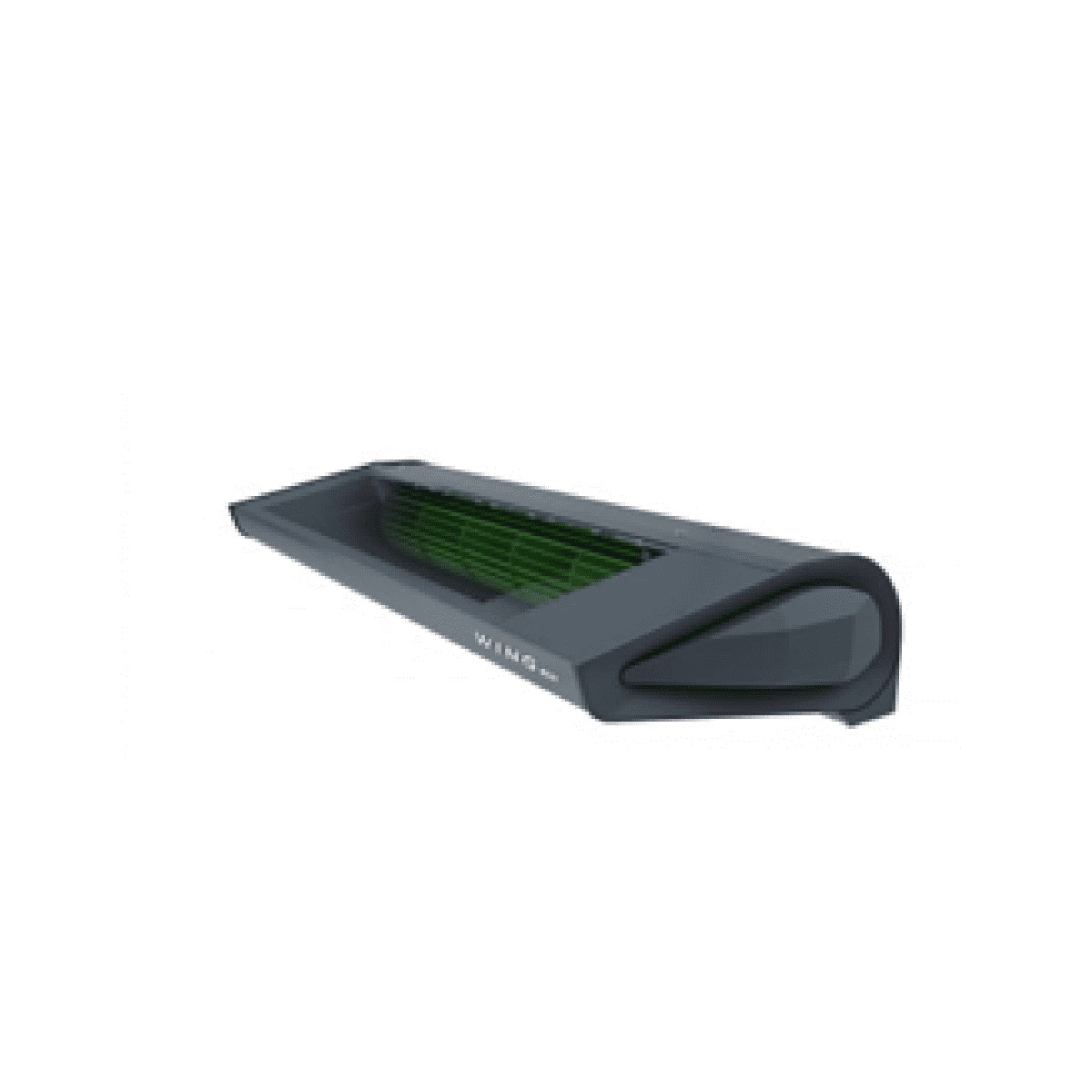

1 × Powrmatic VTS WING-C200W-EC Ambient Air Curtain
1 × Integrated EC motor fan assembly
1 × Factory-finished white casing (RAL 9016)
1 × Mounting bracket set

High Capacity EC Motor Ambient Air Curtain for Wide Commercial & Industrial Entrances

The Powrmatic VTS WING-C200W-EC is a high-capacity ambient air curtain engineered to provide effective environmental separation across wide commercial and industrial door openings.

Incorporating advanced EC motor technology, the unit delivers adjustable airflow while maintaining low electrical consumption compared to traditional AC motor systems. With a maximum airflow of 4,500 m³/hr, the WING-C200W-EC creates a stable and high-velocity air barrier to reduce heat loss, limit cold air ingress and prevent the penetration of dust and airborne contaminants when doors are opened.

The 2000mm format provides extended doorway coverage, making it particularly suitable for warehouses, distribution centres, retail units and high-traffic commercial entrances.

Finished in RAL 9016 white, the unit offers a clean, architectural appearance ideal for modern commercial environments where visual presentation is important.

Key Product Features:

• Ambient (unheated) air curtain
• High-efficiency EC motor technology
• Maximum airflow: 4,500 m³/hr
• Suitable for door heights up to approx. 4 metres
• 2000mm unit length
• White finish (RAL 9016)
• Adjustable airflow control
• Energy-efficient operation
• 220-240V~50Hz single-phase supply
• Designed for commercial and industrial applications

Technical Specifications:

Model: WING-C200W-EC
Product Type: Ambient EC motor air curtain
Length: 2000 mm
Finish: White (RAL 9016)

Airflow Range:
Low: Approx. 2,300 m³/hr
Medium: Approx. 3,400 m³/hr
High: 4,500 m³/hr

Electrical Supply: 220-240V~50Hz 1Ph
Motor Power: 0.47 kW
Rated Current: 1.9 A

Maximum Recommended Door Height: Up to 4 m

Noise Level: Approx. 58–67 dB(A)
Weight: 25.1 kg

Applications:

• Warehouses
• Distribution centres
• Retail entrances
• Commercial buildings
• Logistics facilities
• Public access doors

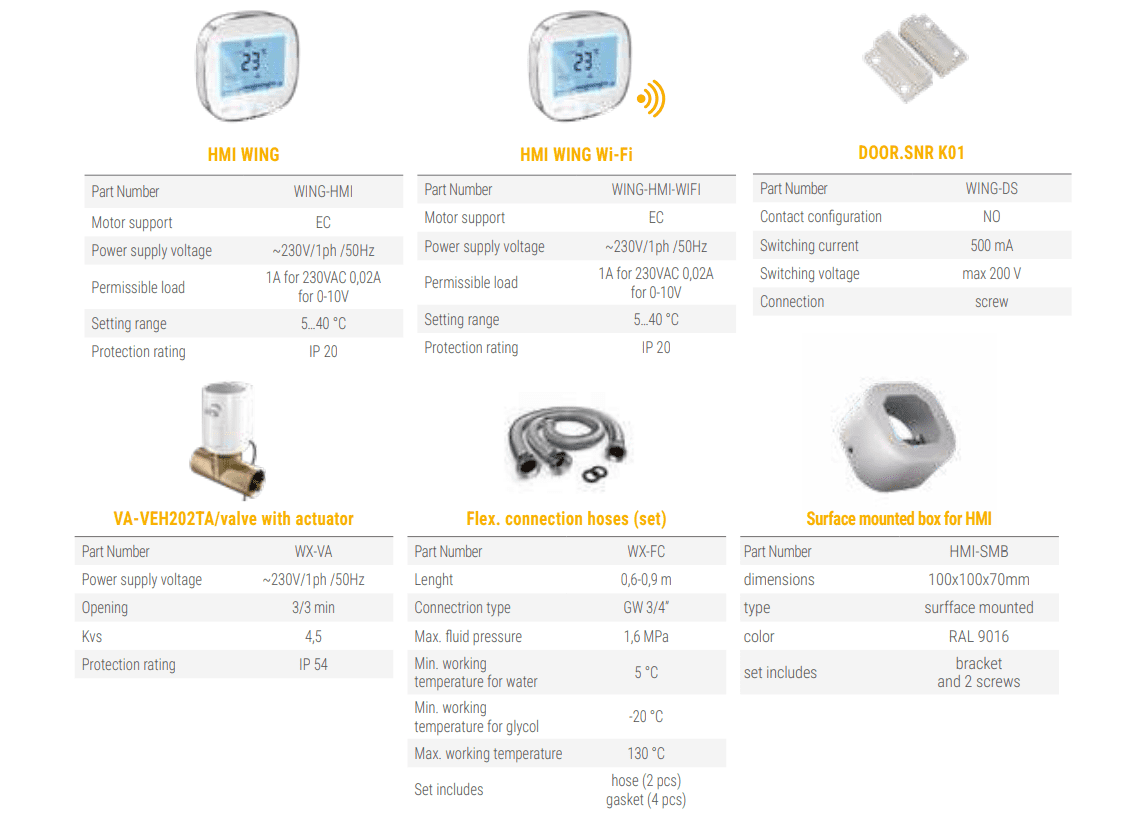

Accessories:
