This Kit Includes:

1 × Powrmatic VTS WING-C200G-EC Ambient Air Curtain
1 × Integrated EC motor fan assembly
1 × Factory-finished grey casing (RAL 7016)
1 × Mounting bracket set

Energy Efficient Ambient EC Air Curtain for Medium Commercial Doorways

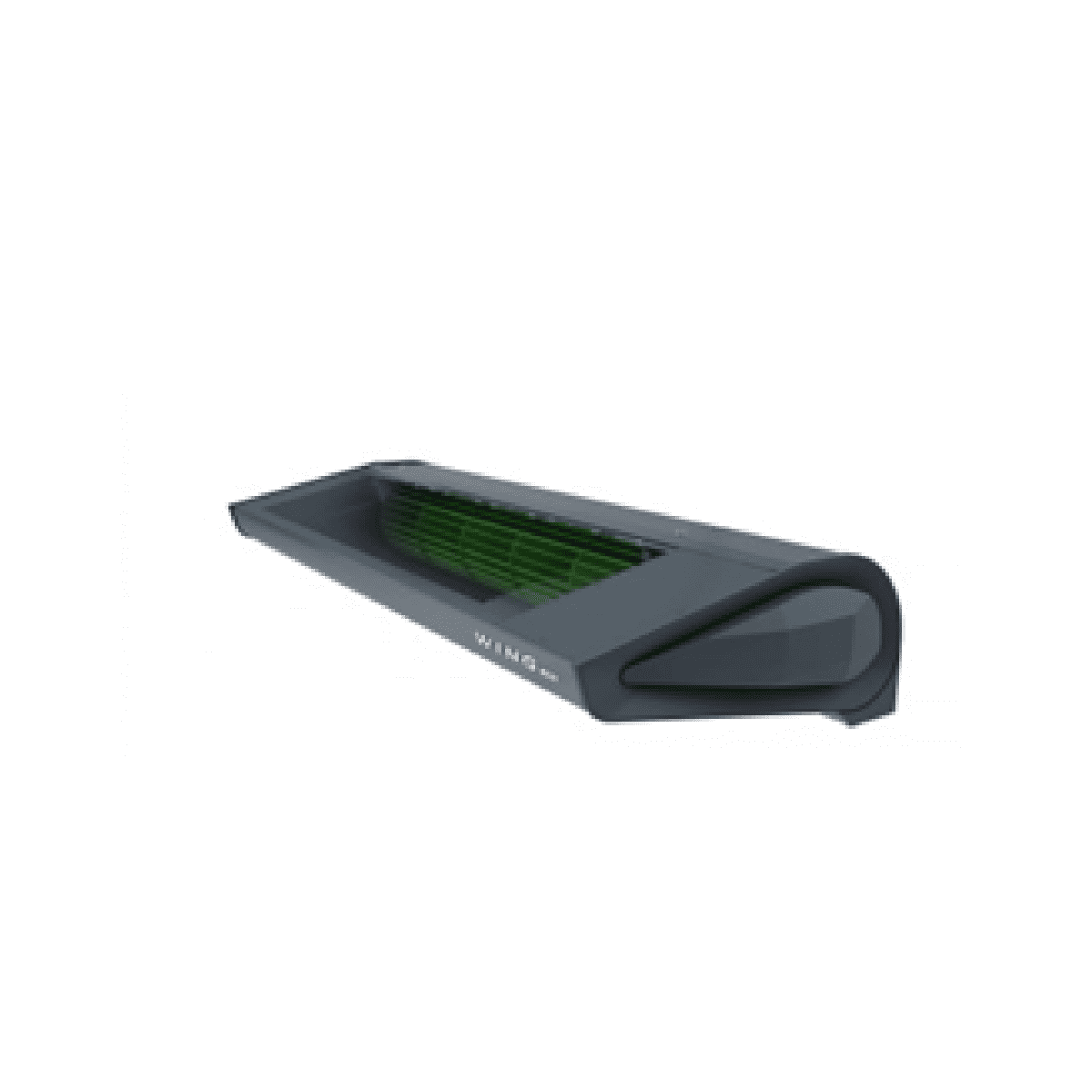

The Powrmatic VTS WING-C200G-EC is a high-efficiency ambient air curtain engineered to create a stable and effective air barrier across commercial and light industrial door openings.

Utilising advanced EC motor technology, the unit delivers adjustable airflow with significantly reduced electrical consumption compared to traditional AC motor air curtains. With a maximum airflow of 3,200 m³/hr, the WING-C200G-EC helps minimise heat loss, prevent cold air ingress and limit the penetration of dust and airborne contaminants when doors are opened.

Designed for horizontal installation above doorways up to approximately 4 metres in height, the 1500mm format provides balanced coverage for retail entrances, warehouses and commercial buildings.

Finished in RAL 7016 grey, the unit offers a modern industrial appearance while maintaining reliable and energy-efficient operation.

Key Product Features:

• Ambient (unheated) air curtain
• EC motor technology for improved energy efficiency
• Maximum airflow: 3,200 m³/hr
• Suitable for door heights up to approx. 4 metres
• 1500mm unit length
• Grey finish (RAL 7016)
• Adjustable fan speed control
• Low noise operation
• 220-240V~50Hz single-phase supply
• Designed for commercial and light industrial applications

Technical Specifications:

Model: WING-C200G-EC
Product Type: Ambient EC motor air curtain
Length: 1500 mm
Finish: Grey (RAL 7016)

Airflow Range:
Low: 1,500 m³/hr
Medium: Approx. 2,200 m³/hr
High: 3,200 m³/hr

Electrical Supply: 220-240V~50Hz 1Ph
Motor Power: 0.3 kW
Rated Current: 1.3 A

Maximum Recommended Door Height: Up to 4 m

Noise Level: Approx. 54–63 dB(A)
Weight: 20.4 kg

Applications:

• Retail entrances
• Supermarkets
• Commercial premises
• Warehouses
• Logistics access doors
• Public buildings

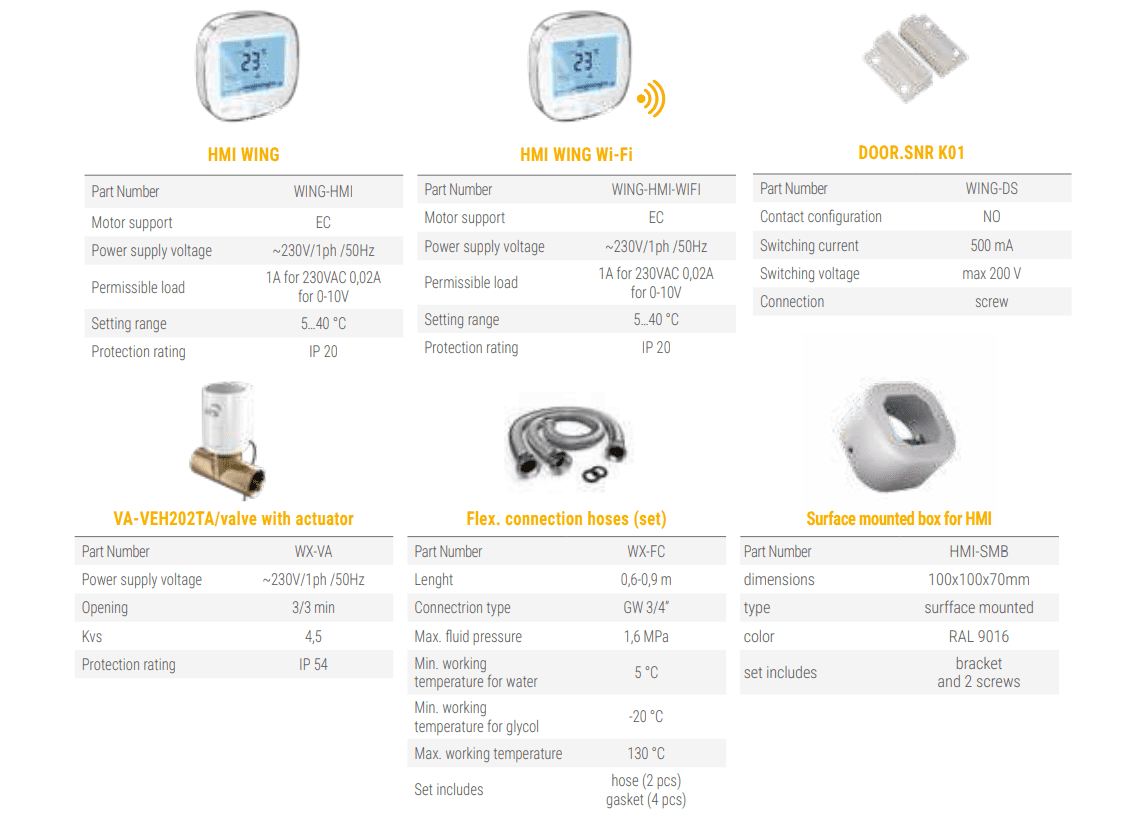

Accessories:
