This Kit Includes:

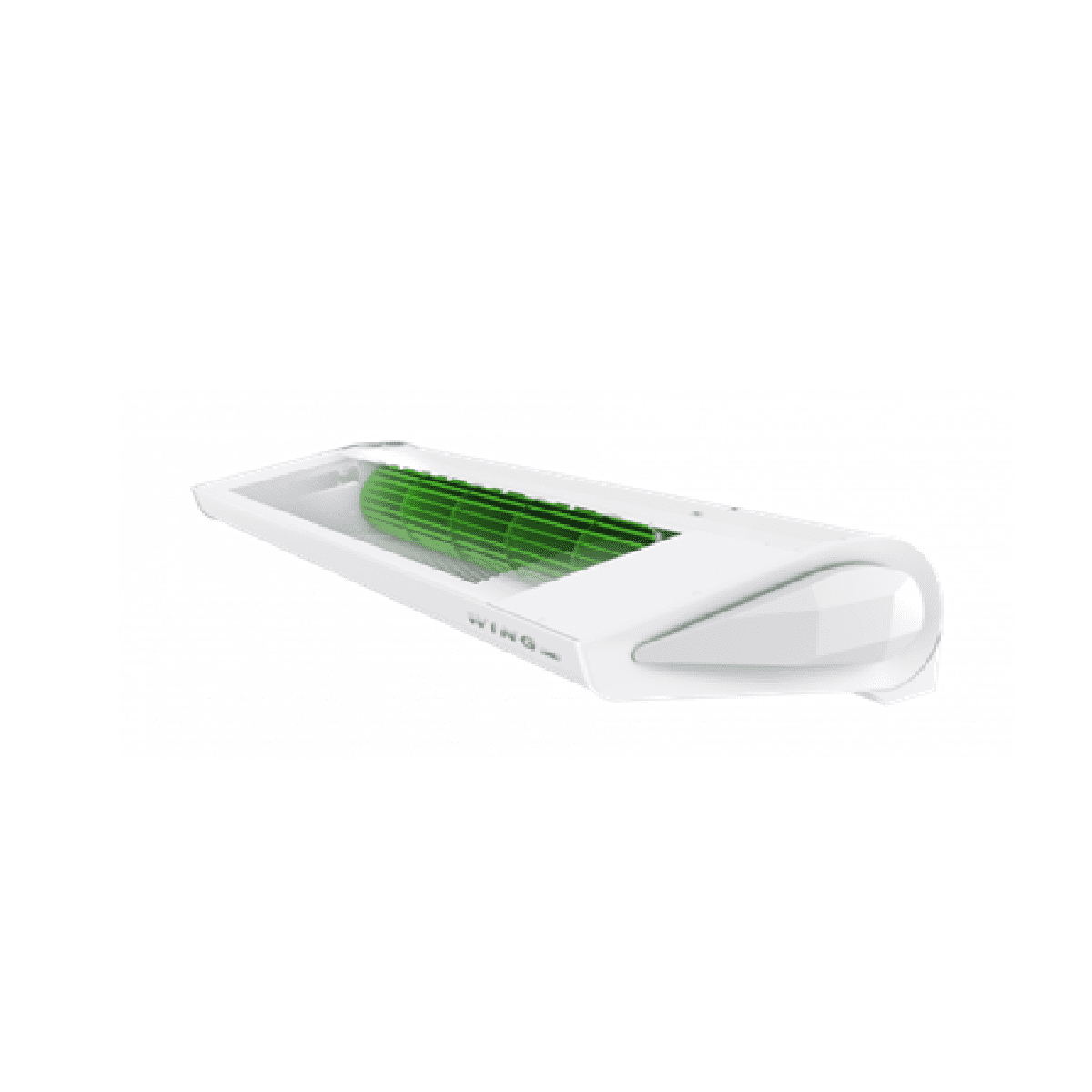

1 × Powrmatic VTS WING-C150W-EC Ambient Air Curtain
1 × Integrated EC motor fan assembly
1 × Factory-finished white casing (RAL 9016)
1 × Mounting bracket set

Energy Efficient Ambient Air Curtain for Medium Width Commercial Doorways

The Powrmatic VTS WING-C150W-EC is a high-efficiency ambient air curtain engineered to provide reliable environmental separation across medium-width commercial and industrial door openings.

Featuring advanced EC motor technology, this model delivers adjustable airflow with significantly lower electrical consumption compared to conventional AC motor units. With a maximum airflow of 3,200 m³/hr, the WING-C150W-EC creates a strong and stable air barrier to reduce heat loss, limit cold air ingress and minimise the entry of dust and airborne contaminants when doors are opened.

Designed for horizontal installation above entrances up to approximately 4 metres high, the 1500mm format provides greater coverage than the 1000mm model while maintaining energy-efficient performance. Finished in clean RAL 9016 white, this unit integrates seamlessly into retail, hospitality and modern commercial environments where appearance is as important as performance.

Key Product Features:

• Ambient (unheated) air curtain
• High-efficiency EC motor technology
• Maximum airflow: 3,200 m³/hr
• Suitable for door heights up to approx. 4 metres
• 1500mm unit length
• White finish (RAL 9016)
• Adjustable fan speed control
• Low noise operation
• 220-240V~50Hz single-phase supply
• Designed for commercial and light industrial applications

Technical Specifications:

Model: WING-C150W-EC
Product Type: Ambient EC motor air curtain
Length: 1500 mm
Finish: White (RAL 9016)

Airflow Range:
Low: 1,500 m³/hr
Medium: Approx. 2,200 m³/hr
High: 3,200 m³/hr

Electrical Supply: 220-240V~50Hz 1Ph
Motor Power: 0.3 kW
Rated Current: 1.3 A

Maximum Recommended Door Height: Up to 4 m

Noise Level: Approx. 54–63 dB(A)
Weight: 20.4 kg

Applications:

• Retail shop entrances
• Supermarkets
• Showrooms
• Hospitality venues
• Commercial buildings
• Light industrial premises

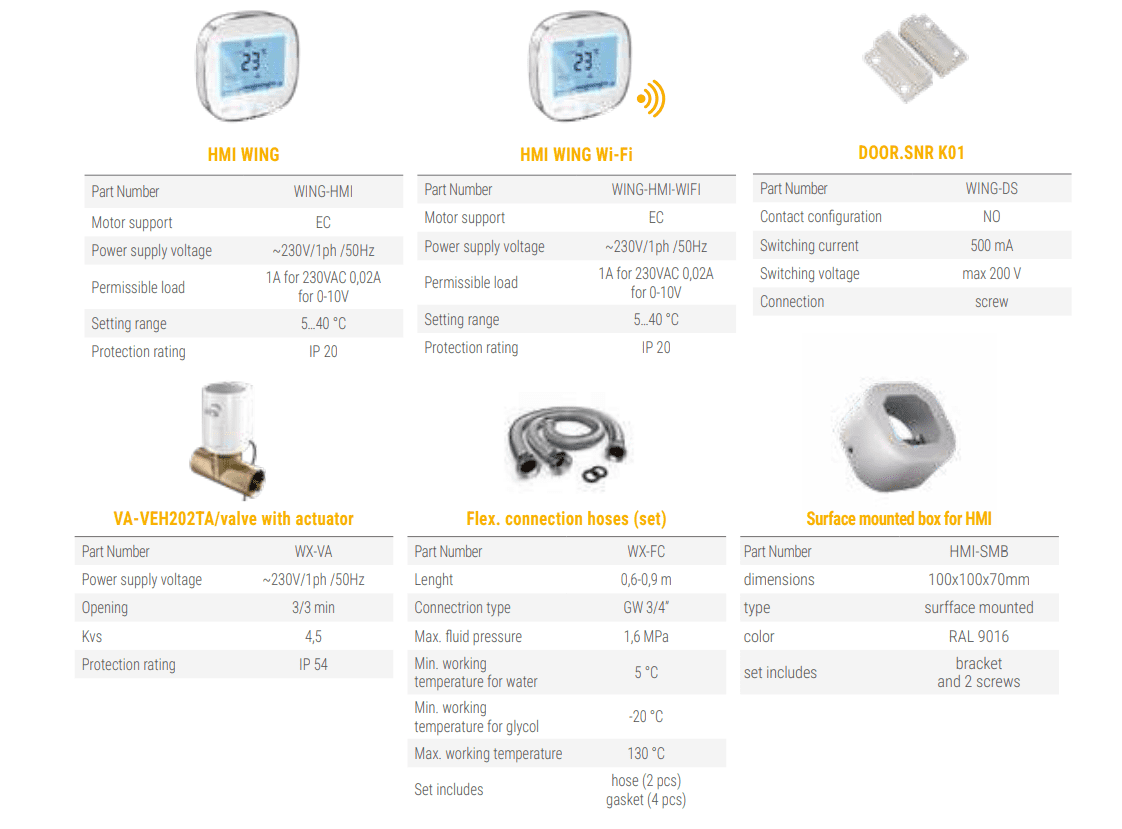

Accessories:
