This Kit Includes:

1 × Powrmatic VTS WING-C150G-EC Ambient Air Curtain

1 × Integrated EC motor fan assembly

1 × Factory-finished grey casing (RAL 7016)

1 × Mounting bracket set

1 x WING-HMI Programable Automatic Variable Speed Potentiometer

High Efficiency EC Motor Air Curtain for Medium Width Commercial & Industrial Doorways

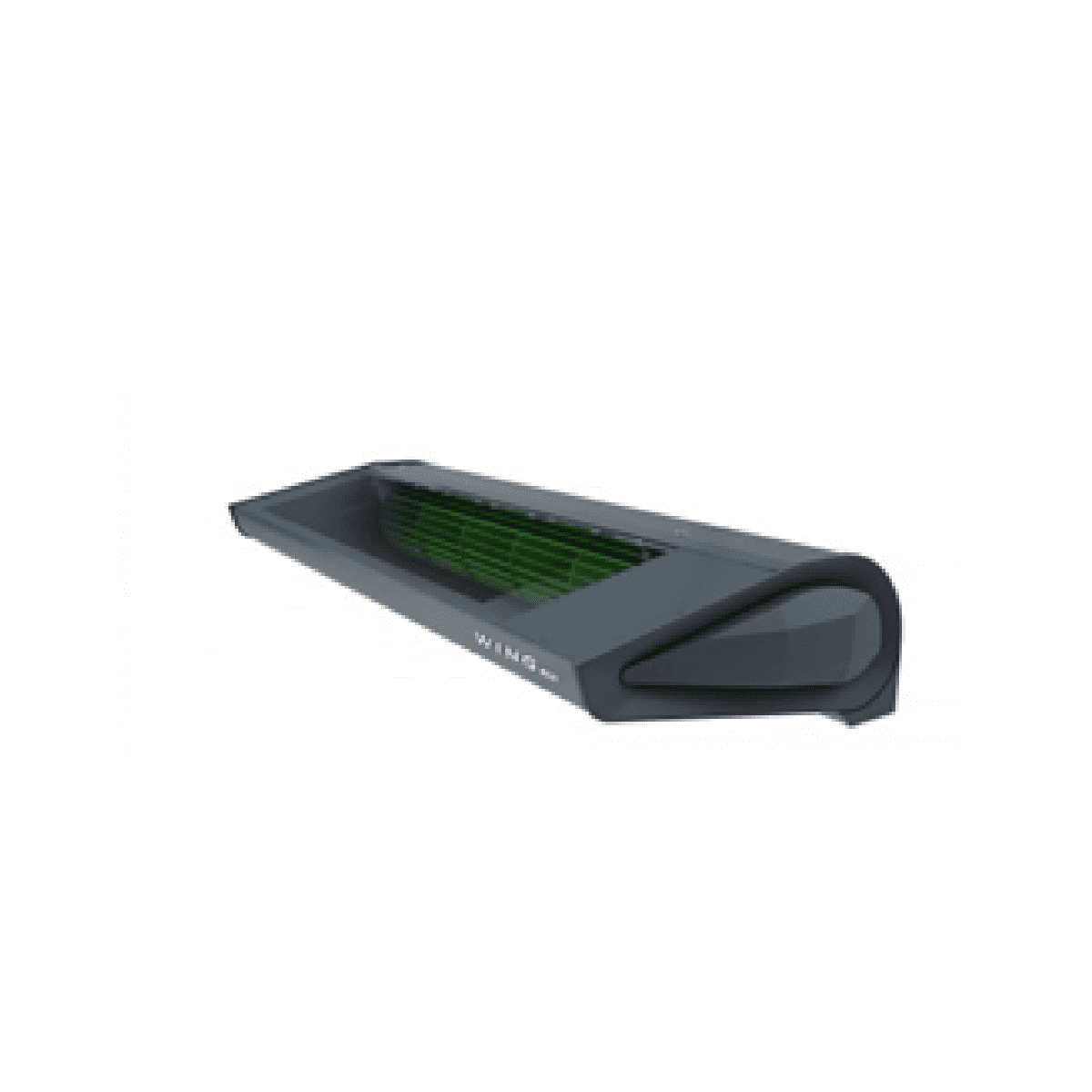

The Powrmatic VTS WING-C150G-EC is a high-performance ambient air curtain designed to provide effective environmental separation across medium-width commercial and light industrial door openings.

Incorporating advanced EC motor technology, the unit delivers adjustable airflow with significantly reduced electrical consumption compared to traditional AC motor air curtains. With a maximum airflow of 3,200 m³/hr, the WING-C150G-EC creates a strong and stable air barrier that helps reduce heat loss, prevent cold air ingress and minimise the entry of dust and airborne contaminants when doors are opened.

Designed for horizontal installation above doorways up to approximately 4 metres in height, the 1500mm unit provides increased coverage compared to the 1000mm model while maintaining energy-efficient operation.

Finished in RAL 7016 grey, the WING-C150G-EC offers a modern industrial aesthetic suitable for retail, warehouse and commercial environments.

Key Product Features:

• Ambient (unheated) air curtain
• EC motor technology for improved energy efficiency
• Maximum airflow: 3,200 m³/hr
• Suitable for door heights up to approx. 4 metres
• 1500mm unit length
• RAL 7016 grey finish
• Adjustable airflow control
• Low noise operation
• 220-240V~50Hz single-phase supply
• Designed for commercial and light industrial applications

Technical Specifications:

Model: WING-C150G-EC
Product Type: Ambient EC motor air curtain
Length: 1500 mm
Finish: Grey (RAL 7016)

Airflow Range:
Low: 1,500 m³/hr
Medium: Approx. 2,200 m³/hr
High: 3,200 m³/hr

Electrical Supply: 220-240V~50Hz 1Ph
Motor Power: 0.3 kW
Rated Current: 1.3 A

Maximum Recommended Door Height: Up to 4 m

Noise Level: Approx. 54–63 dB(A)
Weight: 20.4 kg

Applications:

• Retail entrances
• Supermarkets
• Commercial premises
• Warehouses
• Logistics access doors
• Public buildings

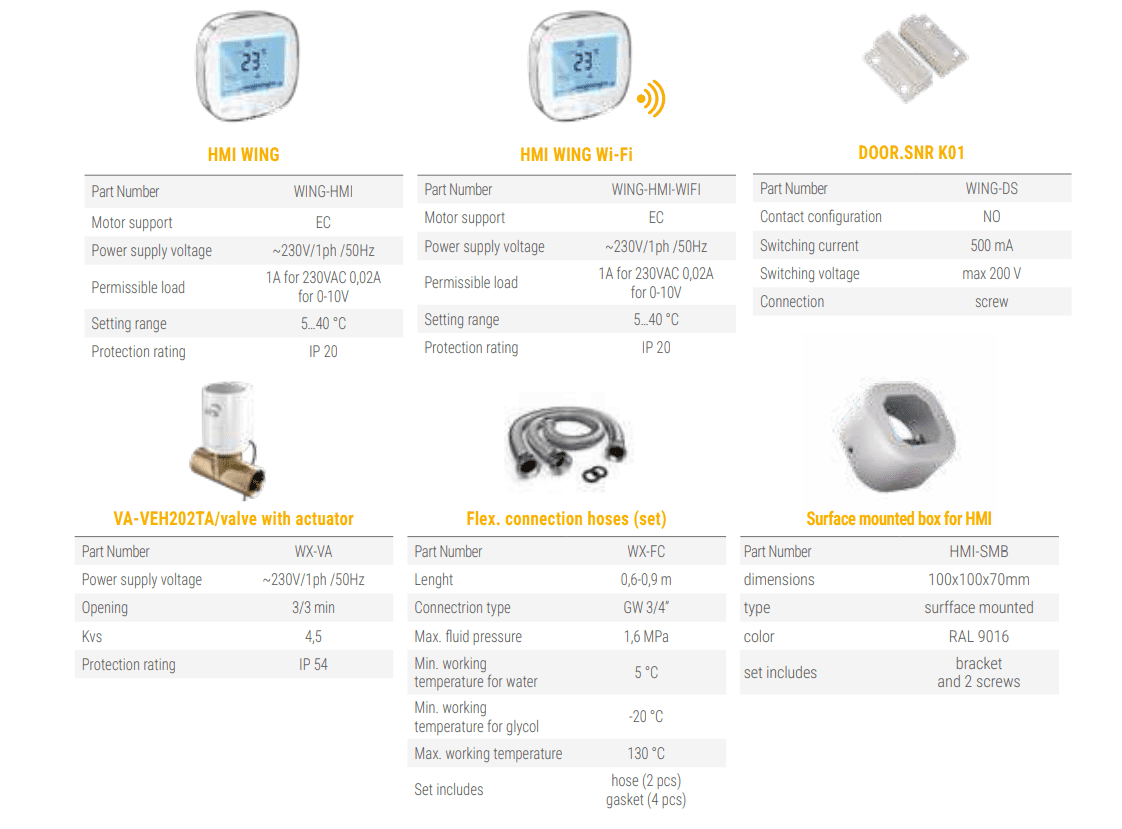

Accessories:
