This Kit Includes:

1 × Powrmatic VTS WING-C100W-EC Ambient Air Curtain

1 × Integrated EC motor fan assembly

1 × Factory-finished White casing

1 × Mounting bracket set

1 x WING-HMI Programable Automatic Variable Speed Potentiometer

Energy Efficient EC Motor Air Curtain for Commercial & Industrial Doorways

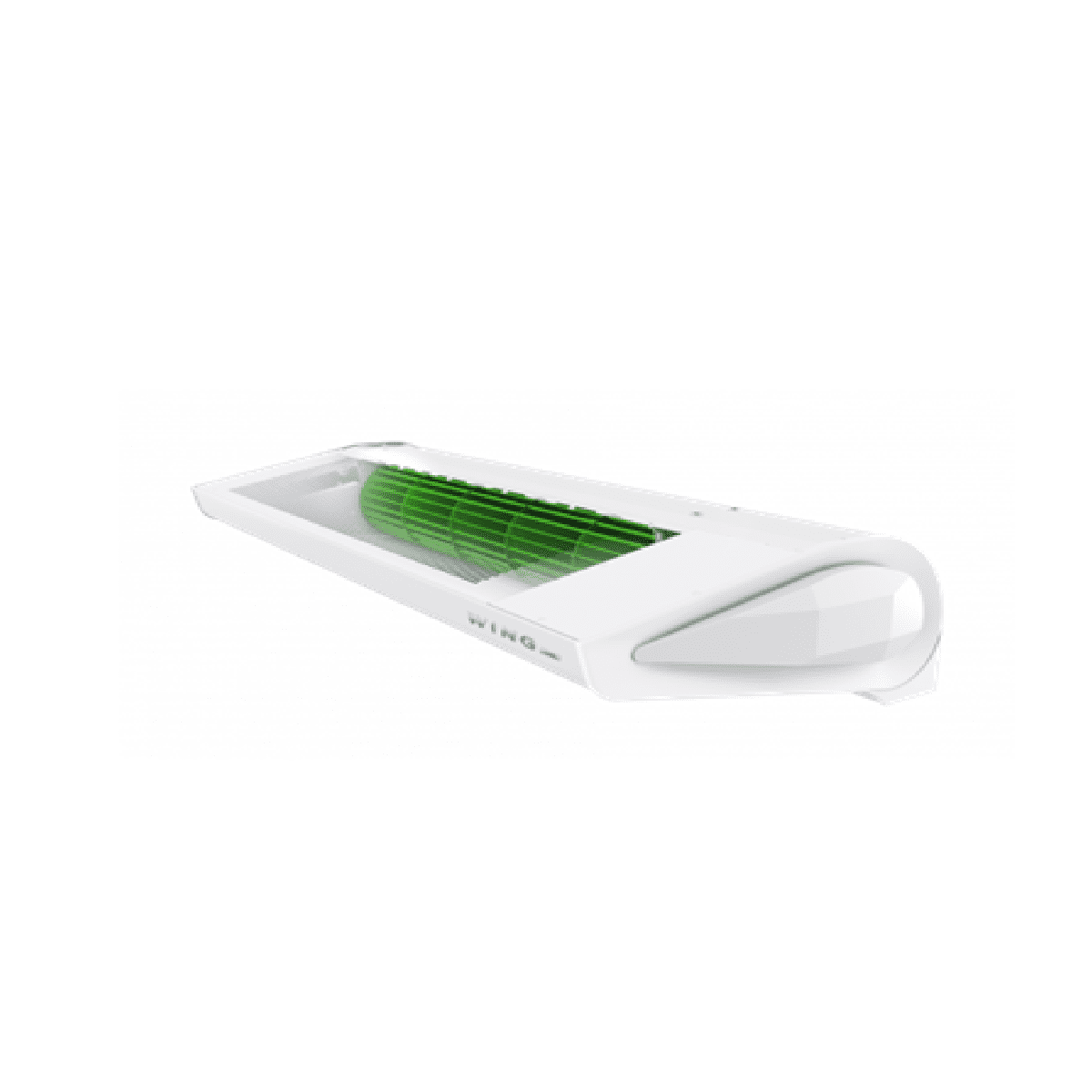

The Powrmatic VTS WING-C100W-EC is a compact, high-efficiency ambient air curtain designed to create an effective air barrier across commercial and light industrial door openings.

Utilising advanced EC motor technology, the unit delivers smooth, adjustable airflow while reducing electrical consumption compared to traditional AC motor air curtains. With a maximum airflow of 1,950 m³/hr, the WING-C100G-EC helps limit heat loss, prevent cold air ingress and minimise the penetration of dust and insects when doors are opened.

Designed for horizontal installation above doorways up to approximately 4 metres in height, the unit provides consistent performance in retail entrances, warehouses, supermarkets and commercial buildings.

Finished in white, the WING-C100W-EC offers a modern industrial appearance suitable for contemporary architectural environments.

Key Product Features:

• Ambient (unheated) air curtain
• EC motor technology for reduced energy consumption
• Maximum airflow: 1,950 m³/hr
• Suitable for door heights up to approx. 4 metres
• 1000mm unit length
• White finish
• Adjustable airflow control
• Low noise operation
• 220-240V~50Hz single-phase supply
• Designed for commercial and light industrial applications

Technical Specifications:

Model: WING-C100G-EC
Product Type: Ambient EC motor air curtain
Length: 1000 mm
Finish: Grey (RAL 7016)

Airflow Range:
Low: 1,050 m³/hr
Medium: 1,500 m³/hr
High: 1,950 m³/hr

Electrical Supply: 220-240V~50Hz 1Ph
Motor Power: 0.2 kW
Rated Current: 1.1 A

Maximum Recommended Door Height: Up to 4 m

Noise Level: Approx. 53–62 dB(A)
Weight: 15.3 kg

Applications:

• Retail entrances
• Supermarkets
• Commercial buildings
• Warehouses
• Logistics access doors
• Public buildings

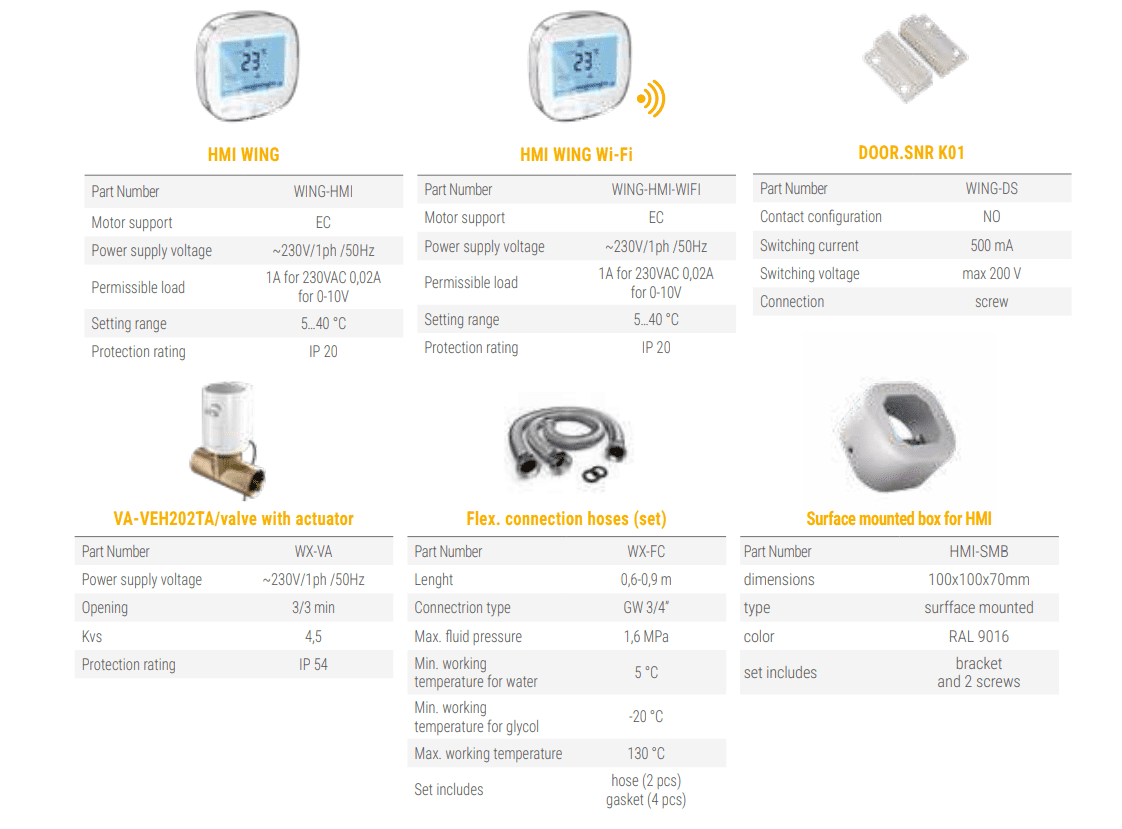

Accessories:
