This Kit Includes:

1 × Powrmatic VTS WING PRO C200-EC Ambient Air Curtain
1 × High-capacity EC motor fan assembly
1 × Factory-finished white casing (RAL 9016)
1 × Mounting bracket set

Ultra High Capacity EC Motor Air Curtain for Tall Industrial & Logistics Entrances

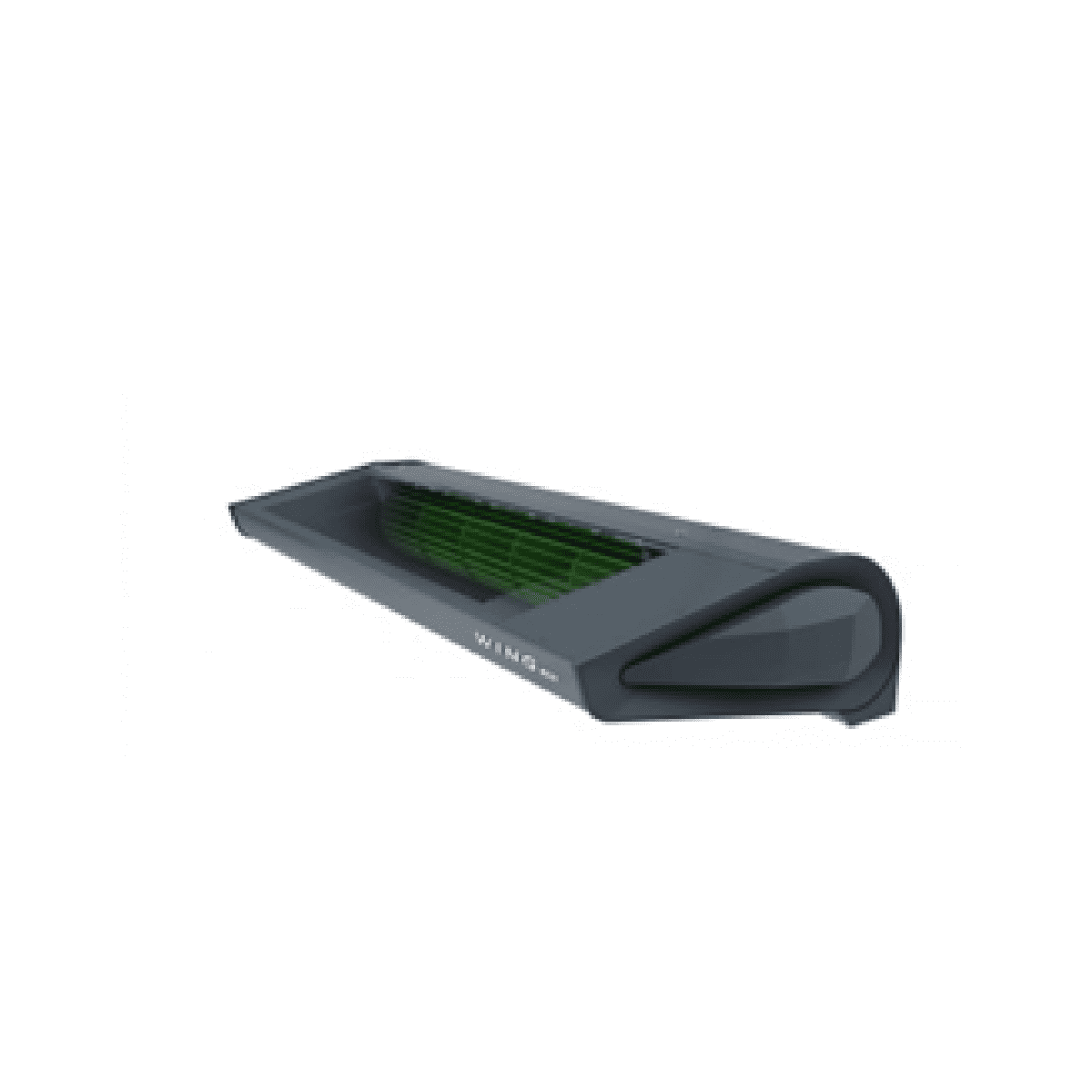

The Powrmatic VTS WING PRO C200-EC is a high-performance ambient air curtain engineered for wide and tall industrial door openings requiring extended air throw and superior environmental separation.

Delivering a maximum airflow of 12,800 m³/hr, the WING PRO C200-EC creates a powerful and stable air barrier across large entrances, reducing heat loss, preventing cold air ingress and limiting the entry of dust and airborne contaminants when doors are opened.

Designed for demanding logistics and warehouse environments, this 2000mm model is suitable for door heights of up to approximately 8 metres. The advanced EC motor technology ensures smooth, adjustable airflow with reduced electrical consumption compared to conventional AC motor systems, making it an energy-efficient solution for high-traffic facilities.

Finished in RAL 9016 white, the unit combines modern industrial styling with heavy-duty performance.

Key Product Features:

• Ambient (unheated) high-capacity air curtain
• Maximum airflow: 12,800 m³/hr
• Advanced EC motor technology
• Suitable for door heights up to approx. 8 metres
• 2000mm unit length
• White finish (RAL 9016)
• Adjustable multi-speed airflow control
• Designed for large industrial and logistics environments
• Energy-efficient operation
• 220-240V~50Hz single-phase supply

Technical Specifications:

Model: WING PRO C200-EC
Product Type: Ambient EC motor air curtain
Length: 2000 mm
Finish: White (RAL 9016)

Airflow Range:
Low: Approx. 6,000 m³/hr
Medium: Approx. 9,000 m³/hr
High: 12,800 m³/hr

Electrical Supply: 220-240V~50Hz 1Ph
Motor Power: Approx. 0.75 kW
Rated Current: Approx. 3.9 A

Maximum Recommended Door Height: Up to approx. 8 m

Noise Level: Approx. 58–66 dB(A)
Weight: Approx. 58 kg

Applications:

• Large warehouses
• Distribution centres
• Logistics hubs
• Industrial loading bays
• Manufacturing facilities
• High-traffic commercial entrances

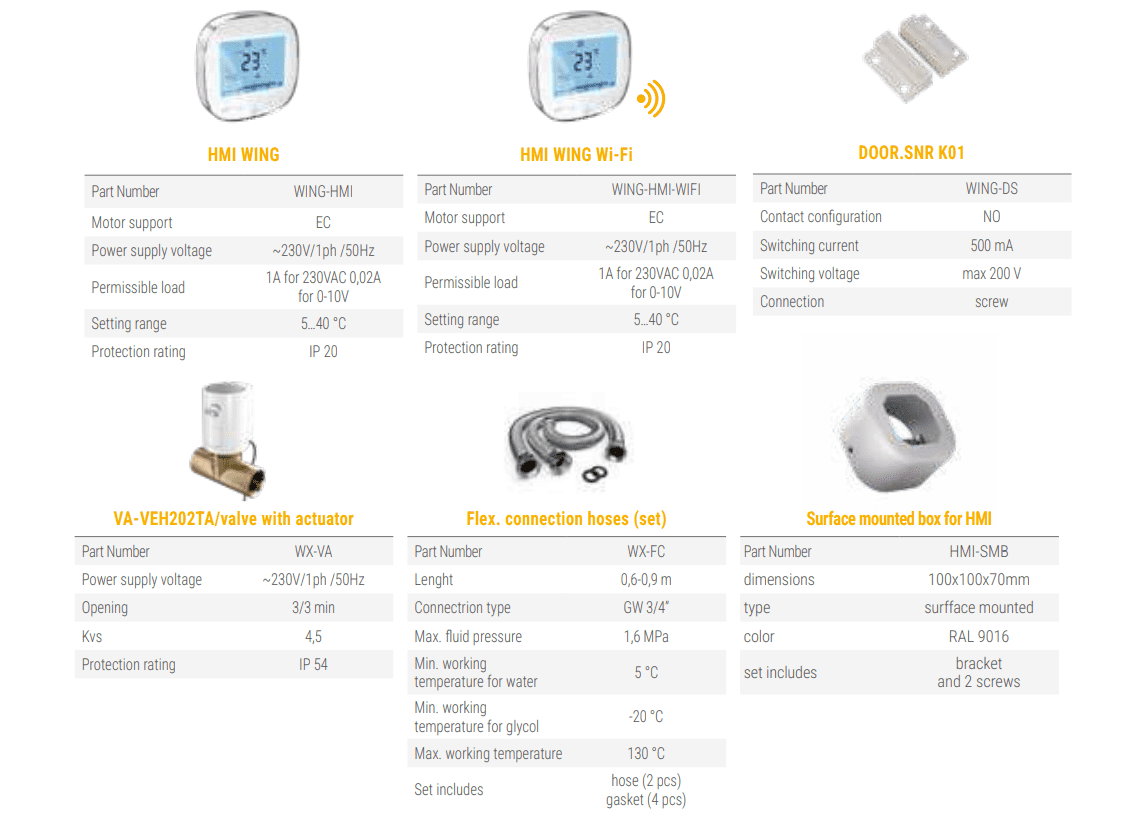

Accessories:
