This Kit Includes:

1 × Powrmatic VTS WING PRO C150-EC Ambient Air Curtain
1 × High-capacity EC motor fan assembly
1 × Factory-finished white casing (RAL 9016)
1 × Mounting bracket set

High Performance EC Motor Air Curtain for Tall Industrial Door Openings

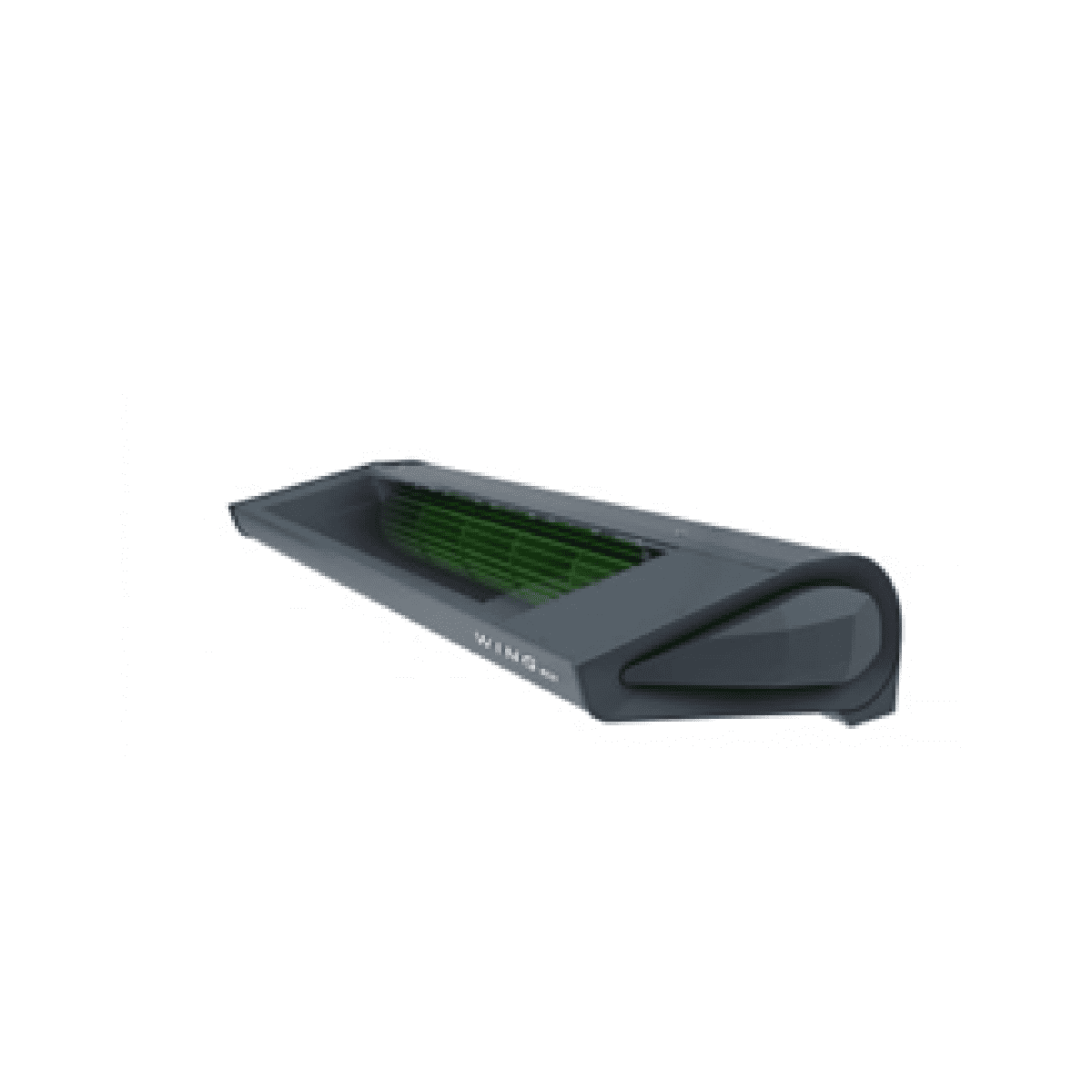

The Powrmatic VTS WING PRO C150-EC is a high-capacity ambient air curtain engineered for large commercial and industrial entrances requiring extended air throw and superior environmental separation.

Designed for taller door openings, the WING PRO range delivers significantly increased airflow compared to the standard WING models. With a maximum airflow of 8,500 m³/hr, the C150-EC creates a powerful and stable air barrier that reduces heat loss, prevents cold air ingress and limits the entry of dust and airborne contaminants when doors are opened.

The advanced EC motor technology ensures energy-efficient performance, smooth airflow modulation and reduced electrical consumption compared to conventional AC motor air curtains. The 1500mm configuration is ideally suited to logistics facilities, warehouses and distribution centres where door heights may exceed standard retail dimensions.

Finished in RAL 9016 white, the WING PRO maintains a clean and professional appearance while delivering industrial-grade performance.

Key Product Features:

• Ambient (unheated) high-capacity air curtain
• EC motor technology for reduced energy consumption
• Maximum airflow: 8,500 m³/hr
• Suitable for taller industrial door openings
• 1500mm unit length
• White finish (RAL 9016)
• Adjustable fan speed control
• Designed for commercial and logistics environments
• 220-240V~50Hz single-phase supply
• Heavy-duty performance for high-traffic entrances

Technical Specifications:

Model: WING PRO C150-EC
Product Type: Ambient EC motor air curtain
Length: 1500 mm
Finish: White (RAL 9016)

Airflow Range:
Low: Approx. 4,000 m³/hr
Medium: Approx. 6,500 m³/hr
High: 8,500 m³/hr

Electrical Supply: 220-240V~50Hz 1Ph
Motor Power: Approx. 0.5 kW
Rated Current: Approx. 2.6 A

Maximum Recommended Door Height: Up to approx. 8 m

Noise Level: Approx. 58–66 dB(A)
Weight: Approx. 43 kg

Applications:

• Warehouses
• Distribution centres
• Logistics hubs
• Industrial loading areas
• Large commercial entrances
• High-traffic access points

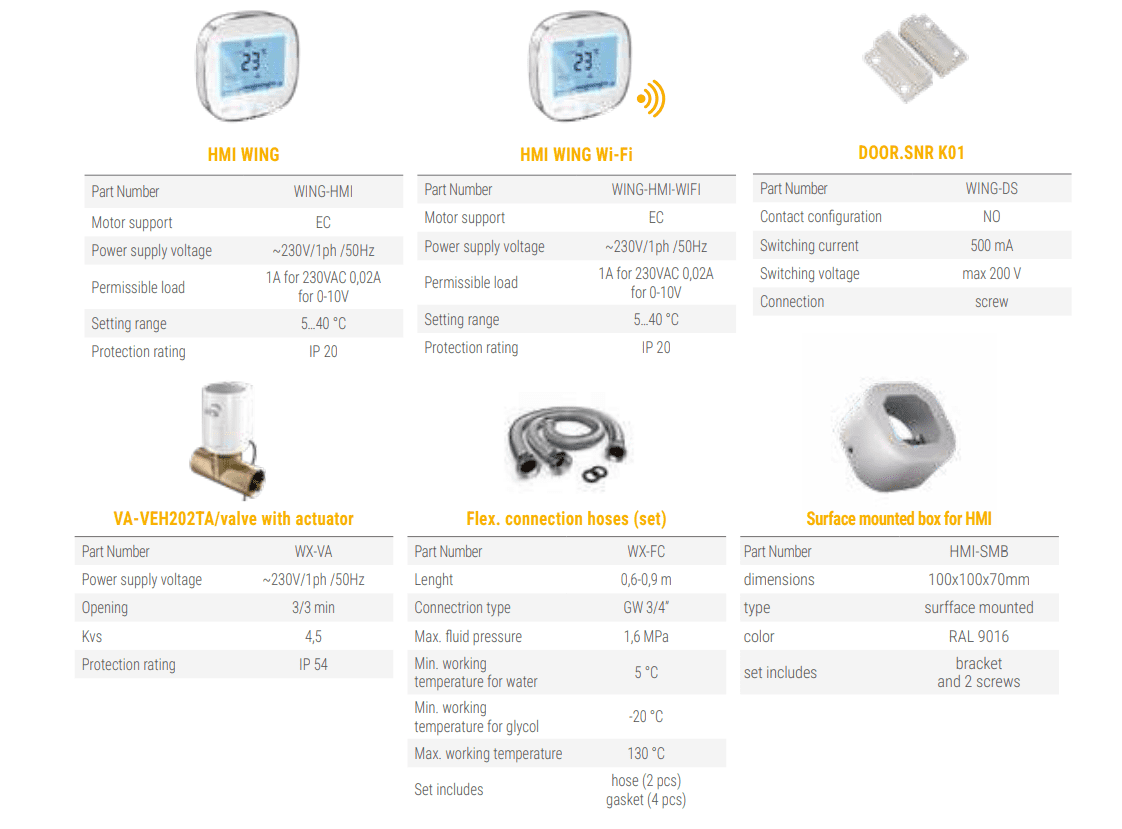

Accessories:
