This Kit Includes:

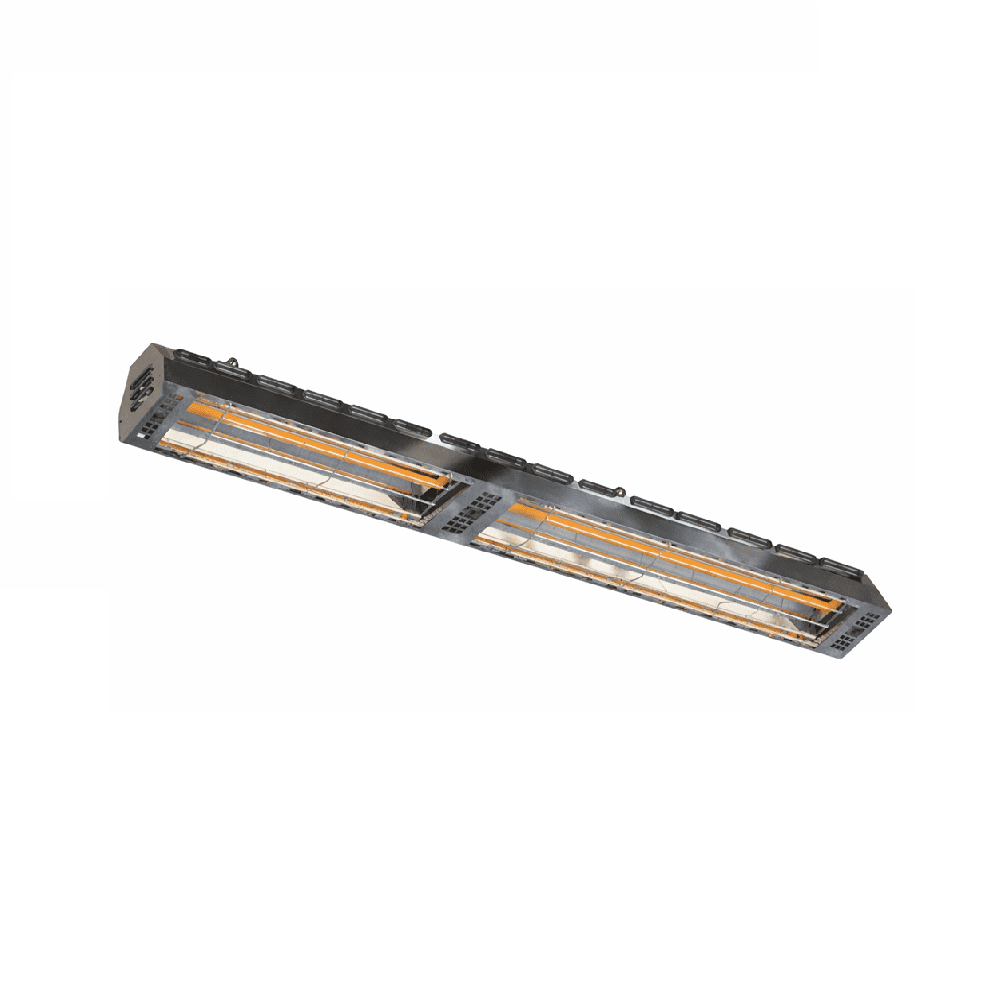

1 × Powrmatic SWQ75/3 Electric Industrial Infrared Heater

1 × High-efficiency medium-wave infrared heating element assembly

1 × Marine-grade aluminium heater housing and reflector system

1 × Heavy-duty adjustable mounting bracket assembly

1 × Factory-wired three-phase electrical connection terminal

1 x SRP MC200 Digital Controller

High Output Marine-Grade Infrared Heating for Industrial Buildings

The Powrmatic SWQ75/3 Electric Industrial Infrared Heater is part of the advanced sWAVE radiant heating range designed for efficient zonal heating in industrial and commercial environments. Delivering 7.5 kW of radiant heat output from a three-phase electrical supply, the SWQ75/3 provides powerful and reliable heating for work areas such as production lines, warehouse picking zones, service bays and assembly areas.

Infrared heating operates differently from traditional warm-air heating systems. Instead of heating the surrounding air, infrared heaters emit radiant energy that warms people, equipment and surfaces directly. This method is particularly effective in buildings with high ceilings, large air volumes and frequently opened loading doors where conventional heating systems often lose heat rapidly. By delivering heat precisely to the working zone, infrared heaters provide instant warmth while reducing wasted energy.

The sWAVE heater system is engineered for high radiant efficiency and targeted heating performance. Because heat is directed only to occupied areas rather than the entire building space, the SWQ75/3 helps improve energy efficiency and maintain comfortable working conditions in demanding industrial environments.

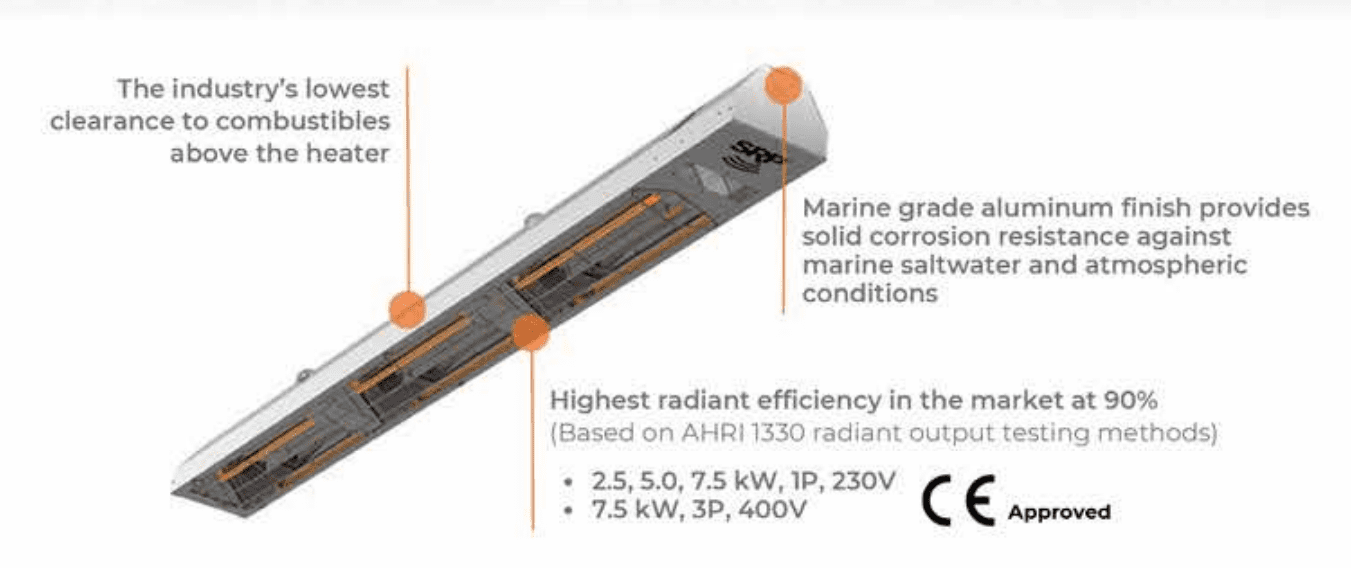

Constructed from marine-grade aluminium, the heater housing provides excellent resistance to corrosion and harsh atmospheric conditions. This makes the SWQ75/3 suitable for warehouses, factories, workshops and coastal environments where long-term durability is essential.

The linear heater design allows flexible installation options including wall-mounted or ceiling-mounted configurations. When positioned above work areas, the heater delivers efficient downward radiant heat coverage, helping to improve worker comfort while lowering overall heating costs.

Key Product Features:

• Electric medium-wave infrared radiant heating technology
• Heat output: 7.5 kW / 22,000 Btu
• Electrical supply: 380-415V~50Hz three phase
• Instant radiant heat with no warm-up delay
• High radiant efficiency heating system
• Marine-grade aluminium housing for corrosion resistance
• Lightweight industrial heater design
• Ideal for zonal heating in large industrial buildings
• Wall mounted or ceiling mounted installation options
• Compatible with SQ90RVC remote variable heater controller

Technical Specifications:

Model: SWQ75/3

Product Type: Electric Industrial Infrared Heater

Heat Output:
7.5 kW / 22,000 Btu

Electrical Supply:
380-415V~50Hz

Phase:
Three Phase

Construction:
Marine grade aluminium housing

Mounting Options:
Wall mounted or ceiling suspended installation

Accessories:

Specifications may be subject to change based on manufacturer updates. Images are for illustrative purposes only.
